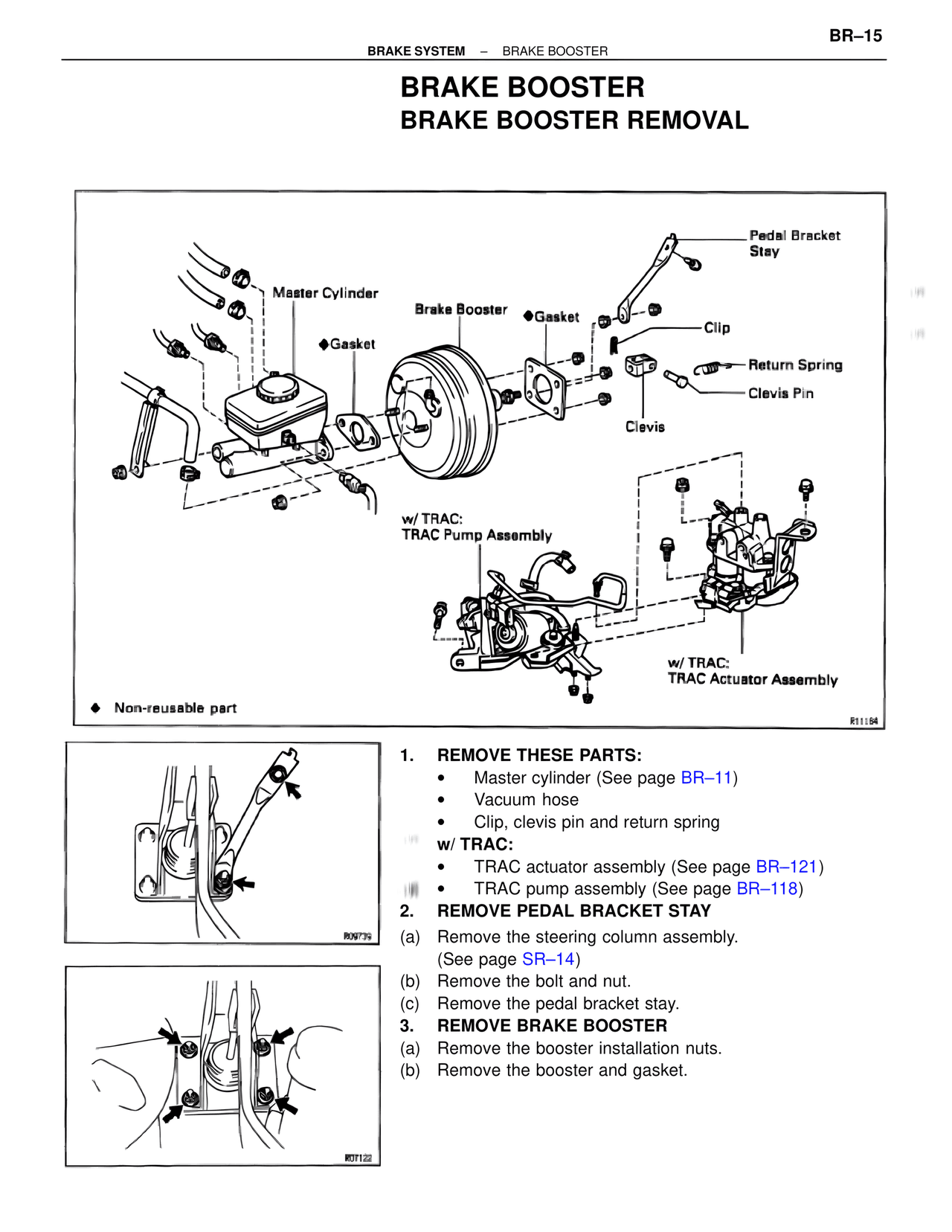

BR–15 BRAKE SYSTEM – BRAKE BOOSTER BRAKE BOOSTER BRAKE BOOSTER REMOVAL Master Cylinder Brake Booster ♦Gasket Pedal Bracket Stay Clip Return Spring Clevis Pin Clevis ♦Gasket w/ TRAC: TRAC Pump Assembly w/ TRAC: TRAC Actuator Assembly ♦ Non-reusable part R11184 R09739 R07122 1. REMOVE THESE PARTS: • Master cylinder (See page BR–11) • Vacuum hose • Clip, clevis pin and return spring w/ TRAC: • TRAC actuator assembly (See page BR–121) • TRAC pump assembly (See page BR–118) 2. REMOVE PEDAL BRACKET STAY (a) Remove the steering column assembly. (See page SR–14) (b) Remove the bolt and nut. (c) Remove the pedal bracket stay. 3. REMOVE BRAKE BOOSTER (a) Remove the booster installation nuts. (b) Remove the booster and gasket.
