BAT/Brakes, ABS & TRAC Systems — Dtc 61 ABS & TRAC ECU Communication Circuit Malfunction, page 157

BR–157

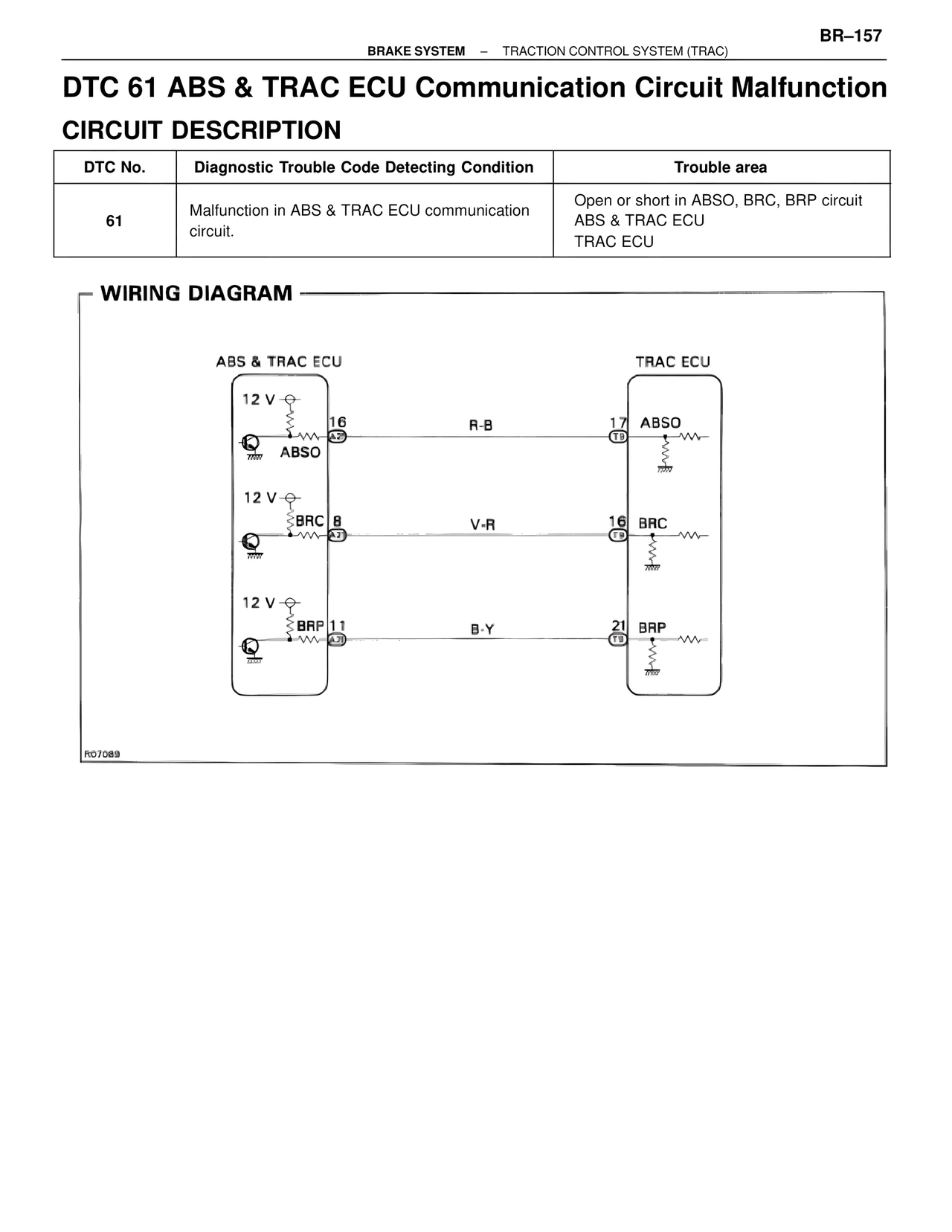

BRAKE SYSTEM – TRACTION CONTROL SYSTEM (TRAC)

DTC 61 ABS & TRAC ECU Communication Circuit Malfunction

CIRCUIT DESCRIPTION

DTC No. | Diagnostic Trouble Code Detecting Condition | Trouble area

61 | Malfunction in ABS & TRAC ECU communication circuit. | Open or short in ABSO, BRC, BRP circuit
ABS & TRAC ECU
TRAC ECU

WIRING DIAGRAM

ABS & TRAC ECU                                    TRAC ECU

12 V
16
ABSO          R-B          17  ABSO

12 V
BRC 8
          V-R          16  BRC

12 V
BRP 11
          B-Y          21  BRP

R07089
