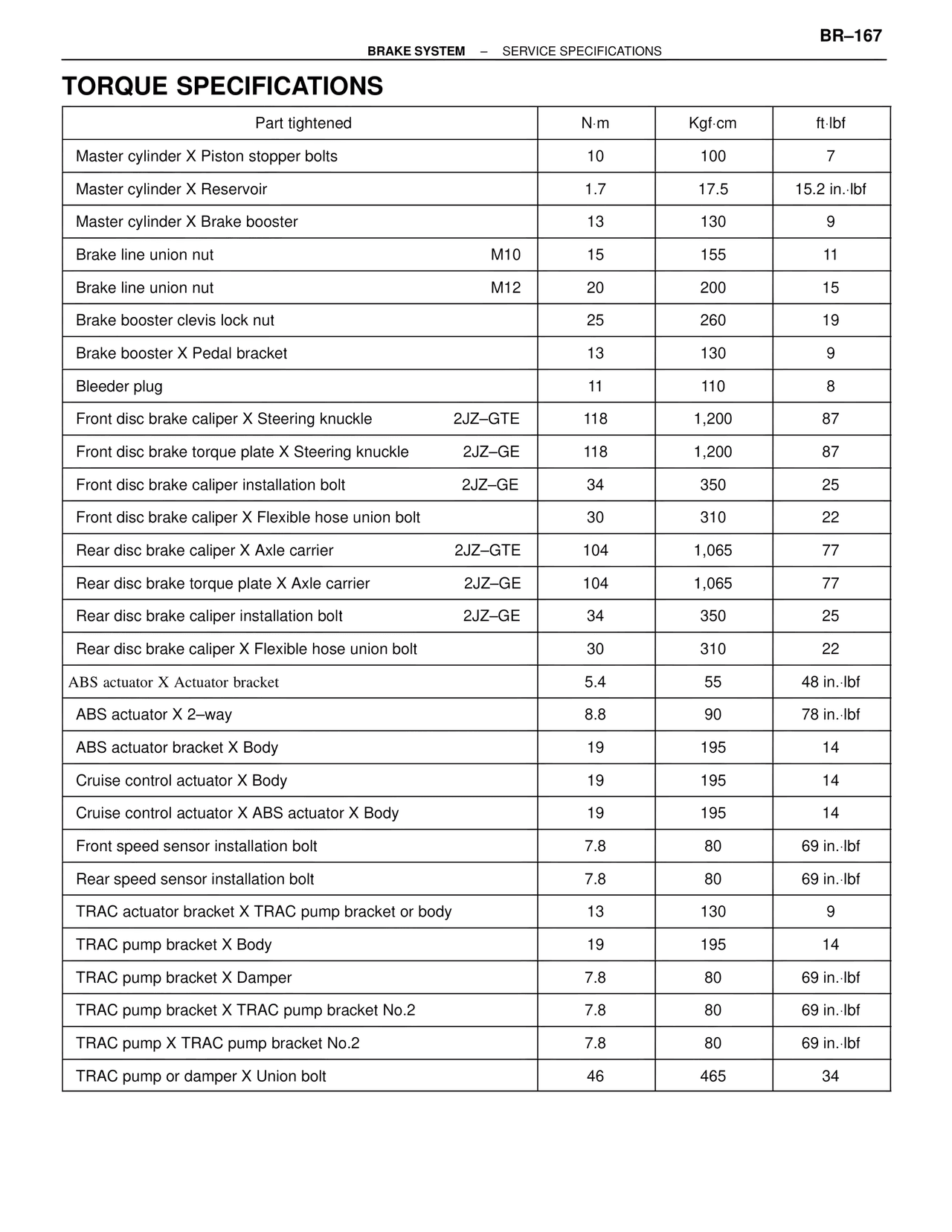

BR–167 BRAKE SYSTEM – SERVICE SPECIFICATIONS TORQUE SPECIFICATIONS Part tightened | N·m | Kgf·cm | ft·lbf Master cylinder X Piston stopper bolts | 10 | 100 | 7 Master cylinder X Reservoir | 1.7 | 17.5 | 15.2 in.·lbf Master cylinder X Brake booster | 13 | 130 | 9 Brake line union nut M10 | 15 | 155 | 11 Brake line union nut M12 | 20 | 200 | 15 Brake booster clevis lock nut | 25 | 260 | 19 Brake booster X Pedal bracket | 13 | 130 | 9 Bleeder plug | 11 | 110 | 8 Front disc brake caliper X Steering knuckle 2JZ–GTE | 118 | 1,200 | 87 Front disc brake torque plate X Steering knuckle 2JZ–GE | 118 | 1,200 | 87 Front disc brake caliper installation bolt 2JZ–GE | 34 | 350 | 25 Front disc brake caliper X Flexible hose union bolt | 30 | 310 | 22 Rear disc brake caliper X Axle carrier 2JZ–GTE | 104 | 1,065 | 77 Rear disc brake torque plate X Axle carrier 2JZ–GE | 104 | 1,065 | 77 Rear disc brake caliper installation bolt 2JZ–GE | 34 | 350 | 25 Rear disc brake caliper X Flexible hose union bolt | 30 | 310 | 22 ABS actuator X Actuator bracket | 5.4 | 55 | 48 in.·lbf ABS actuator X 2–way | 8.8 | 90 | 78 in.·lbf ABS actuator bracket X Body | 19 | 195 | 14 Cruise control actuator X Body | 19 | 195 | 14 Cruise control actuator X ABS actuator X Body | 19 | 195 | 14 Front speed sensor installation bolt | 7.8 | 80 | 69 in.·lbf Rear speed sensor installation bolt | 7.8 | 80 | 69 in.·lbf TRAC actuator bracket X TRAC pump bracket or body | 13 | 130 | 9 TRAC pump bracket X Body | 19 | 195 | 14 TRAC pump bracket X Damper | 7.8 | 80 | 69 in.·lbf TRAC pump bracket X TRAC pump bracket No.2 | 7.8 | 80 | 69 in.·lbf TRAC pump X TRAC pump bracket No.2 | 7.8 | 80 | 69 in.·lbf TRAC pump or damper X Union bolt | 46 | 465 | 34
