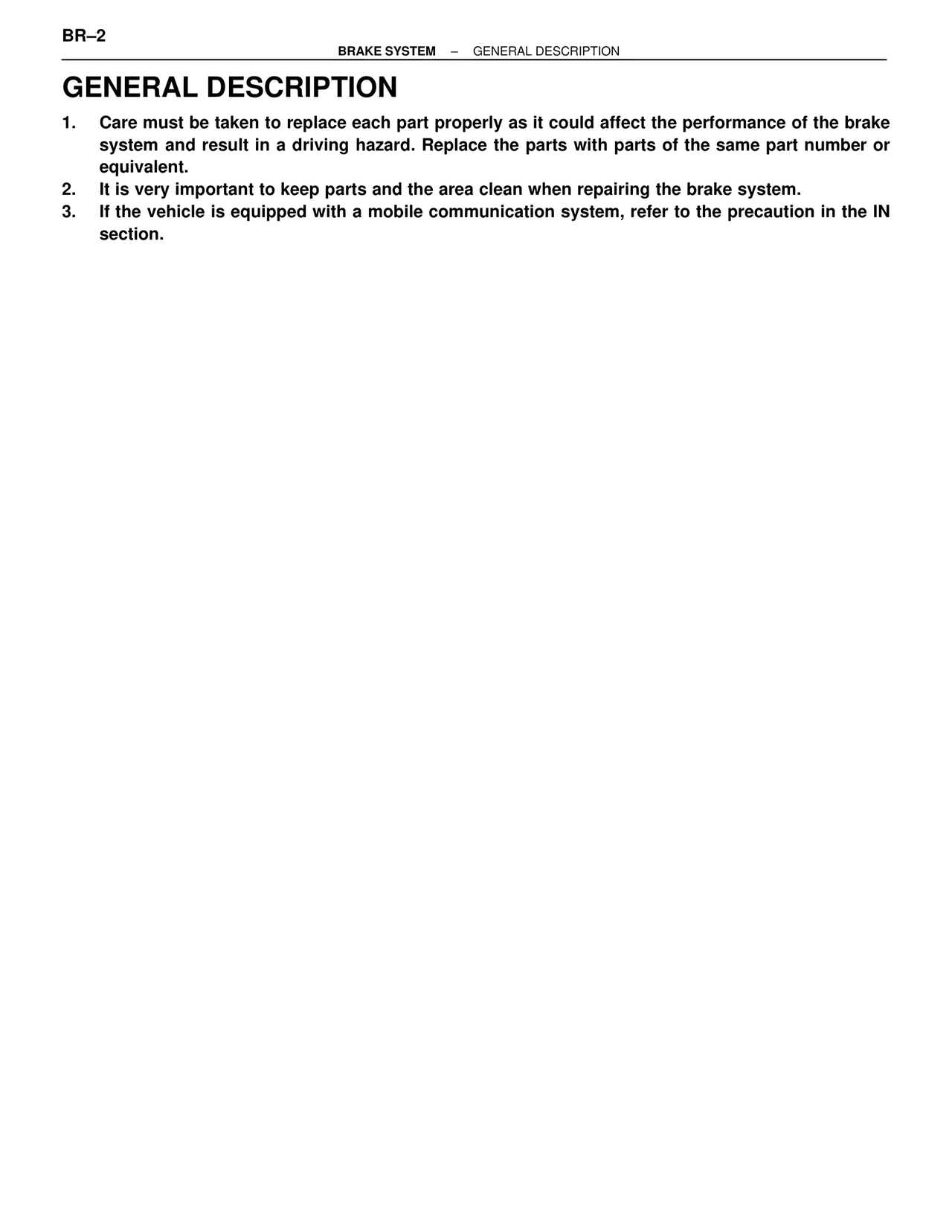

General Description — MK4 Supra Brakes, ABS & TRAC Systems, page 2
100%
Page text (OCR transcript)
BR–2
BRAKE SYSTEM – GENERAL DESCRIPTION

GENERAL DESCRIPTION

1. Care must be taken to replace each part properly as it could affect the performance of the brake system and result in a driving hazard. Replace the parts with parts of the same part number or equivalent.
2. It is very important to keep parts and the area clean when repairing the brake system.
3. If the vehicle is equipped with a mobile communication system, refer to the precaution in the IN section.
