BAT
/
Brakes, ABS & TRAC Systems
43 / 167
p.044 →
−
100%
+

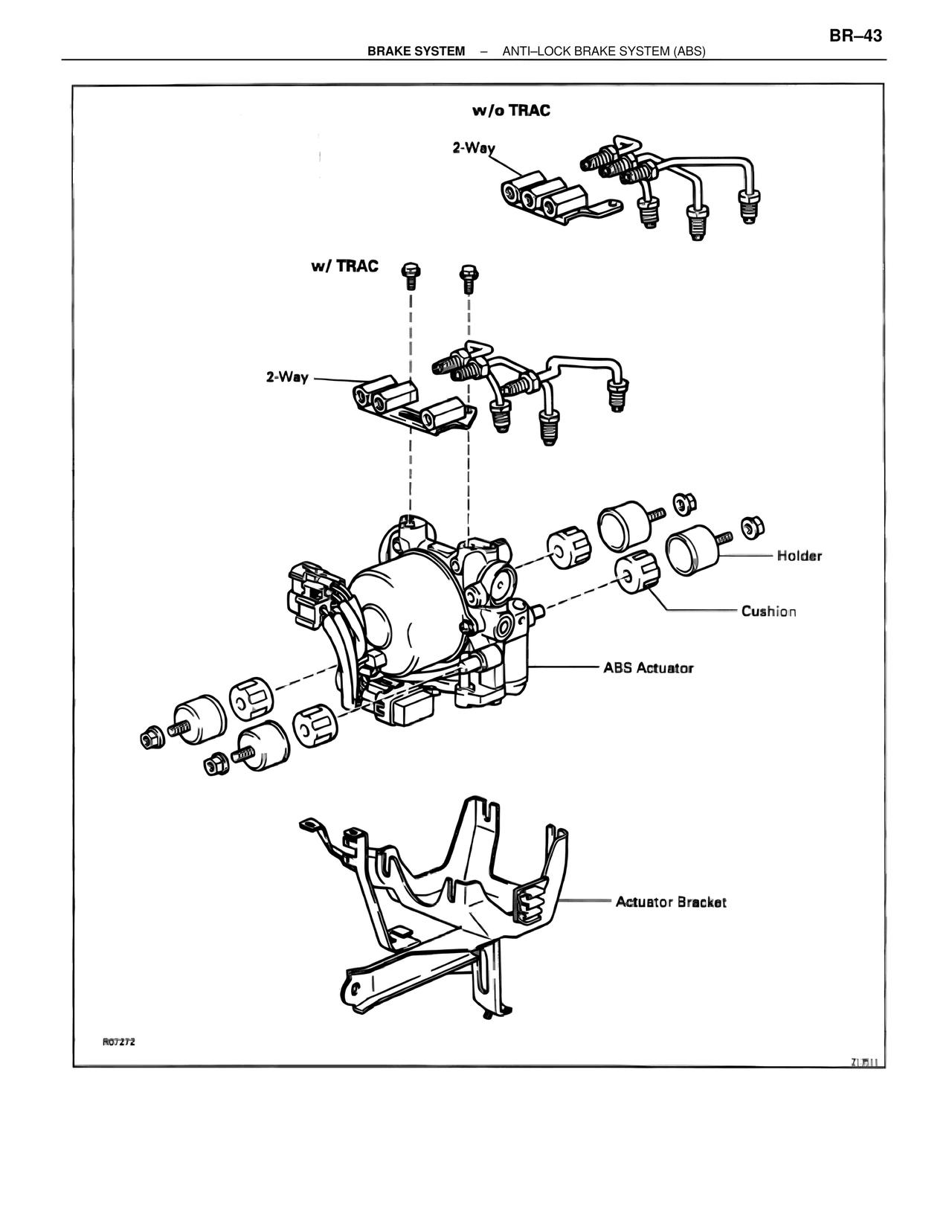

BR–43 BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS) w/o TRAC 2-Way w/ TRAC 2-Way Holder Cushion ABS Actuator Actuator Bracket R07272 2I3511
