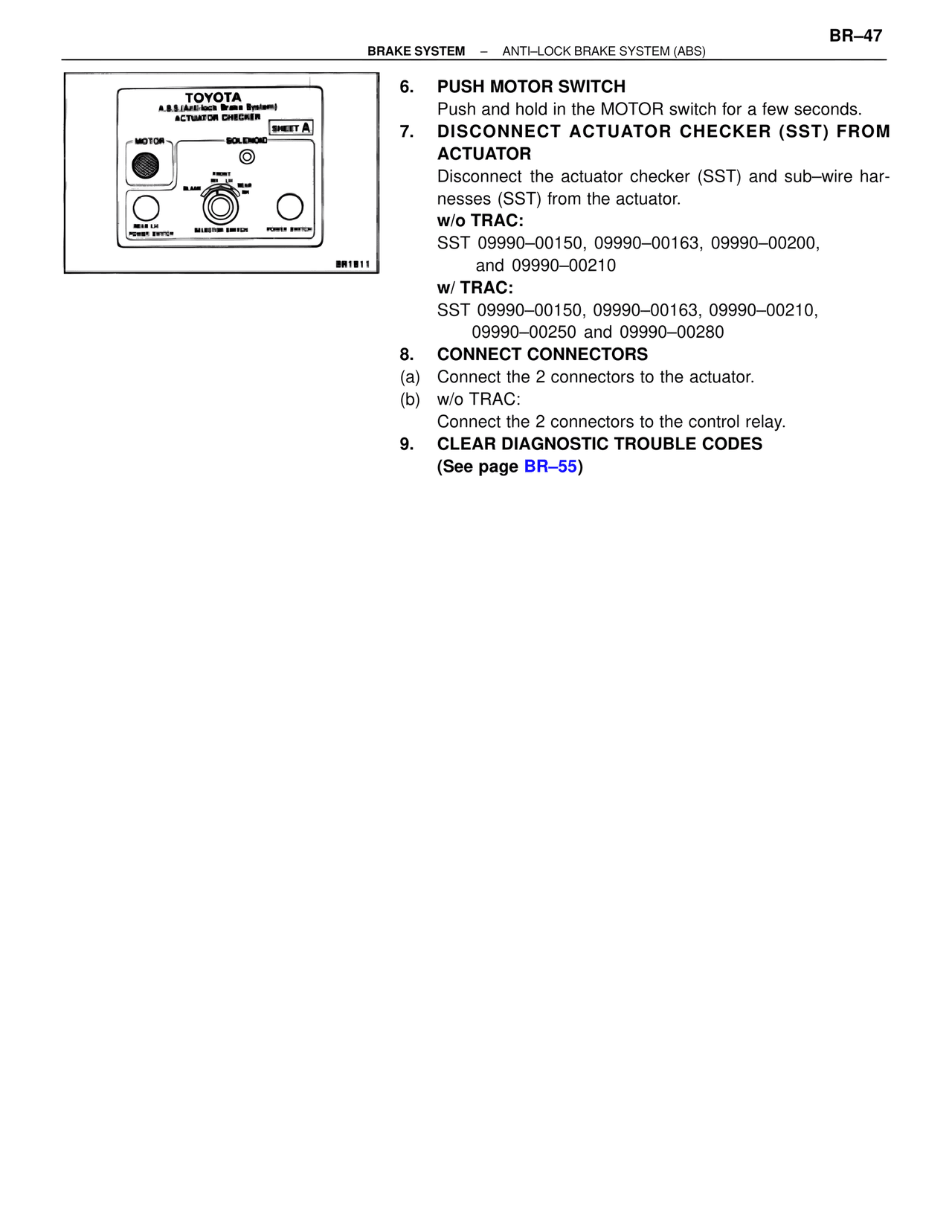

BR–47
BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS)
TOYOTA
A.S.S.(Anti-lock Brake System)
ACTUATOR CHECKER
SHEET A
MOTOR SOLENOID
FRONT
BLANK REAR
REAR LH
REAR SWITCH SELECTION SWITCH POWER SWITCH
BR1011
6. PUSH MOTOR SWITCH
Push and hold in the MOTOR switch for a few seconds.
7. DISCONNECT ACTUATOR CHECKER (SST) FROM
ACTUATOR
Disconnect the actuator checker (SST) and sub–wire har-
nesses (SST) from the actuator.
w/o TRAC:
SST 09990–00150, 09990–00163, 09990–00200,
and 09990–00210
w/ TRAC:
SST 09990–00150, 09990–00163, 09990–00210,
09990–00250 and 09990–00280
8. CONNECT CONNECTORS
(a) Connect the 2 connectors to the actuator.
(b) w/o TRAC:
Connect the 2 connectors to the control relay.
9. CLEAR DIAGNOSTIC TROUBLE CODES
(See page BR–55)
