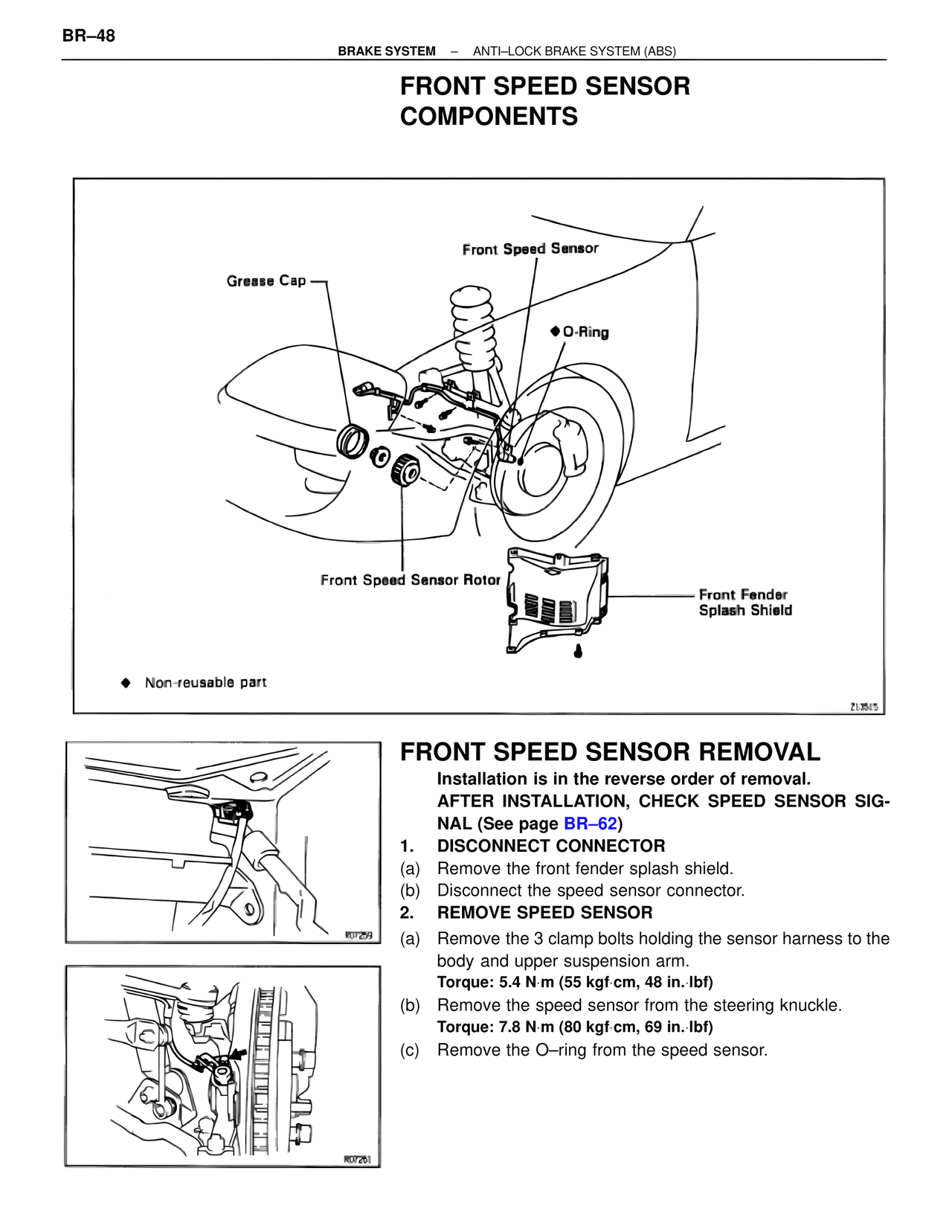

BR–48
BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS)

FRONT SPEED SENSOR
COMPONENTS

Front Speed Sensor
Grease Cap
♦O-Ring
Front Speed Sensor Rotor
Front Fender
Splash Shield

♦ Non-reusable part

Z13545

FRONT SPEED SENSOR REMOVAL

Installation is in the reverse order of removal.
AFTER INSTALLATION, CHECK SPEED SENSOR SIG-
NAL (See page BR–62)
1. DISCONNECT CONNECTOR
(a) Remove the front fender splash shield.
(b) Disconnect the speed sensor connector.
2. REMOVE SPEED SENSOR
(a) Remove the 3 clamp bolts holding the sensor harness to the
body and upper suspension arm.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)
(b) Remove the speed sensor from the steering knuckle.
Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)
(c) Remove the O–ring from the speed sensor.

R07259

R07261
