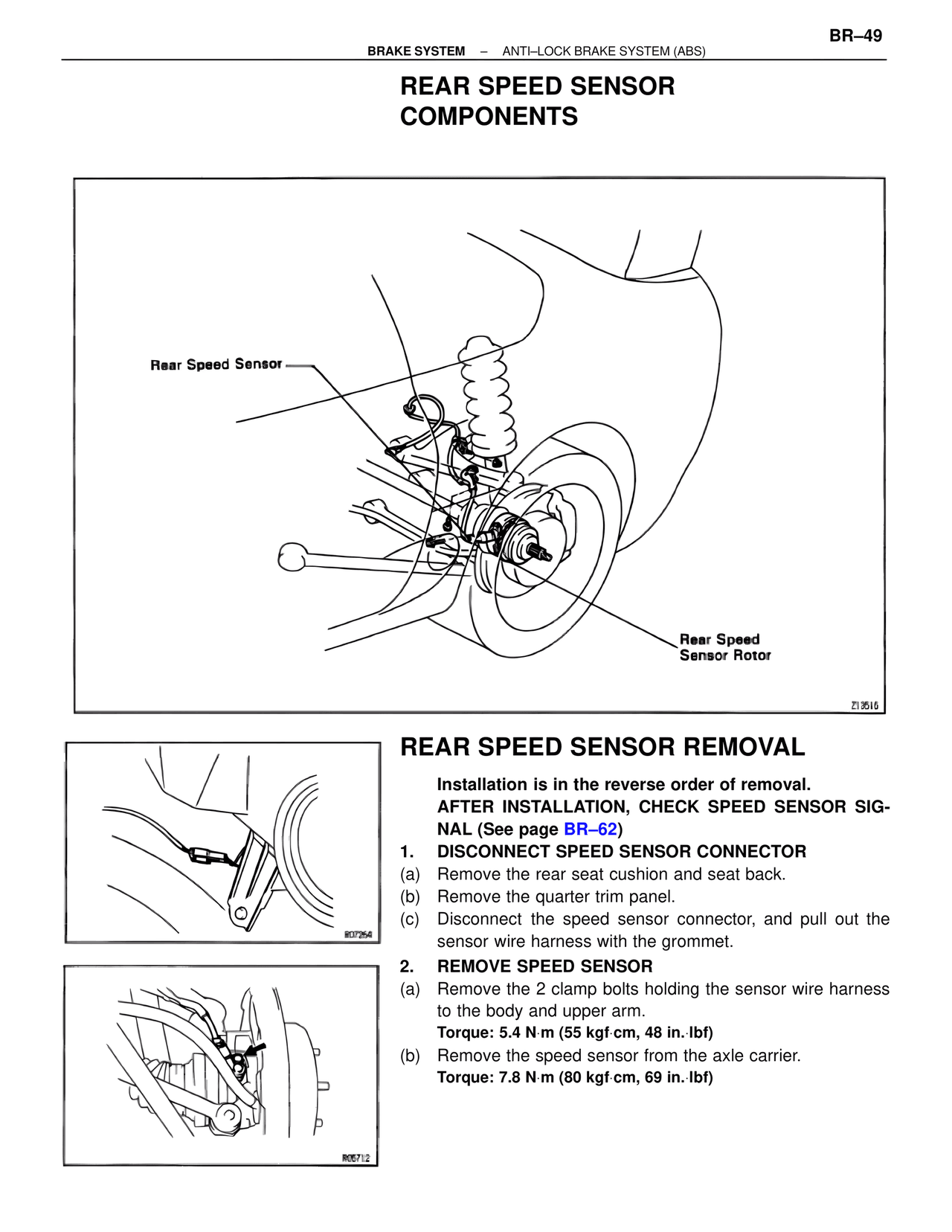

BR–49
BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS)
REAR SPEED SENSOR
COMPONENTS
Rear Speed Sensor
Rear Speed
Sensor Rotor
Z13516
REAR SPEED SENSOR REMOVAL
Installation is in the reverse order of removal.
AFTER INSTALLATION, CHECK SPEED SENSOR SIG-
NAL (See page BR–62)
1. DISCONNECT SPEED SENSOR CONNECTOR
(a) Remove the rear seat cushion and seat back.
(b) Remove the quarter trim panel.
(c) Disconnect the speed sensor connector, and pull out the
sensor wire harness with the grommet.
2. REMOVE SPEED SENSOR
(a) Remove the 2 clamp bolts holding the sensor wire harness
to the body and upper arm.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)
(b) Remove the speed sensor from the axle carrier.
Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)
R07264
R05712
