BR–52
BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS)

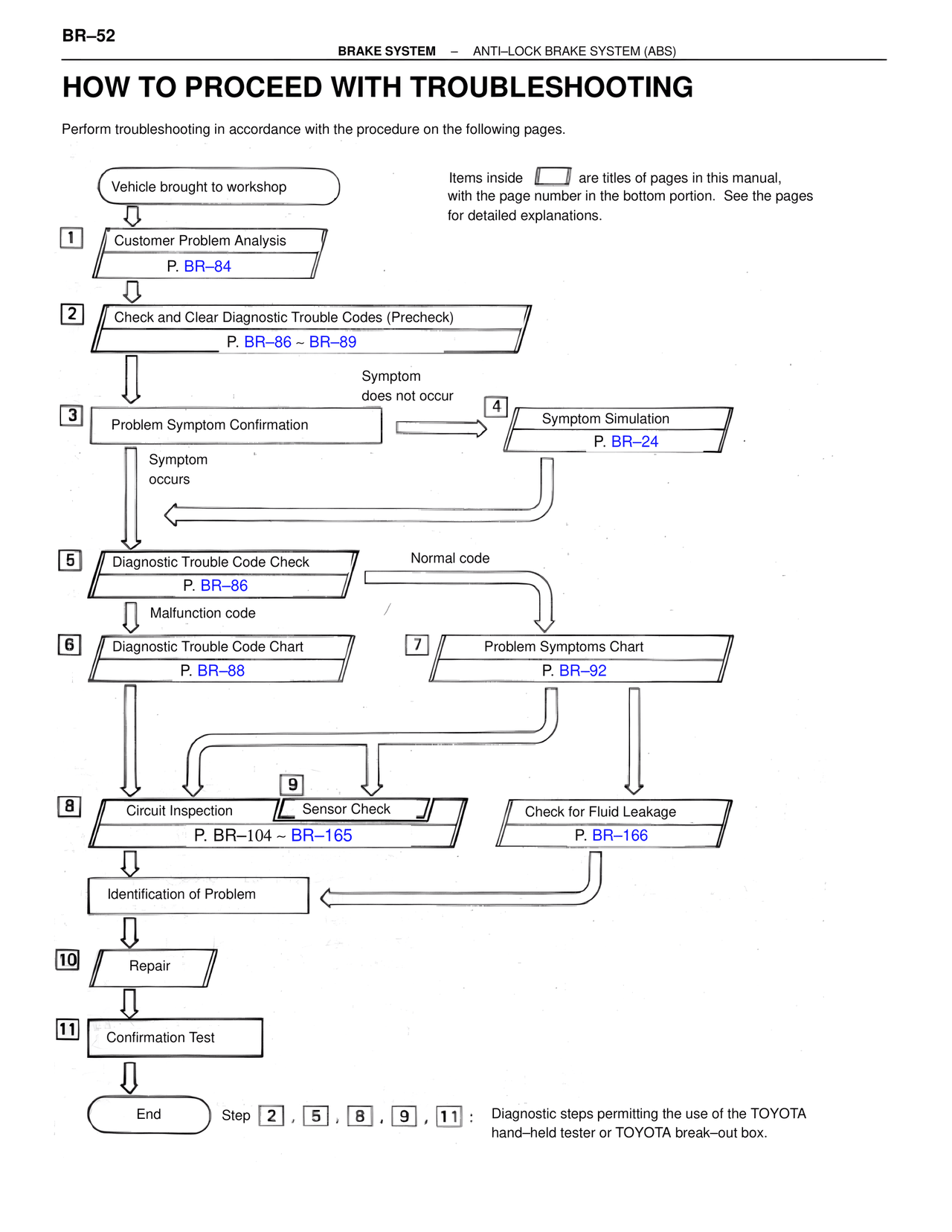

HOW TO PROCEED WITH TROUBLESHOOTING
Perform troubleshooting in accordance with the procedure on the following pages.
Vehicle brought to workshop
1 Customer Problem Analysis
P. BR–84
2 Check and Clear Diagnostic Trouble Codes (Precheck)
P. BR–86 ~ BR–89
Symptom
does not occur
3 Problem Symptom Confirmation 4 Symptom Simulation
P. BR–24
Symptom
occurs
5 Diagnostic Trouble Code Check Normal code
P. BR–86
Malfunction code
6 Diagnostic Trouble Code Chart 7 Problem Symptoms Chart
P. BR–88 P. BR–92
8 Circuit Inspection 9 Sensor Check Check for Fluid Leakage
P. BR–104 ~ BR–165 P. BR–166
Identification of Problem
10 Repair
11 Confirmation Test
End
Items inside are titles of pages in this manual,
with the page number in the bottom portion. See the pages
for detailed explanations.
Step 2 , 5 , 8 , 9 , 11 : Diagnostic steps permitting the use of the TOYOTA
hand–held tester or TOYOTA break–out box.
