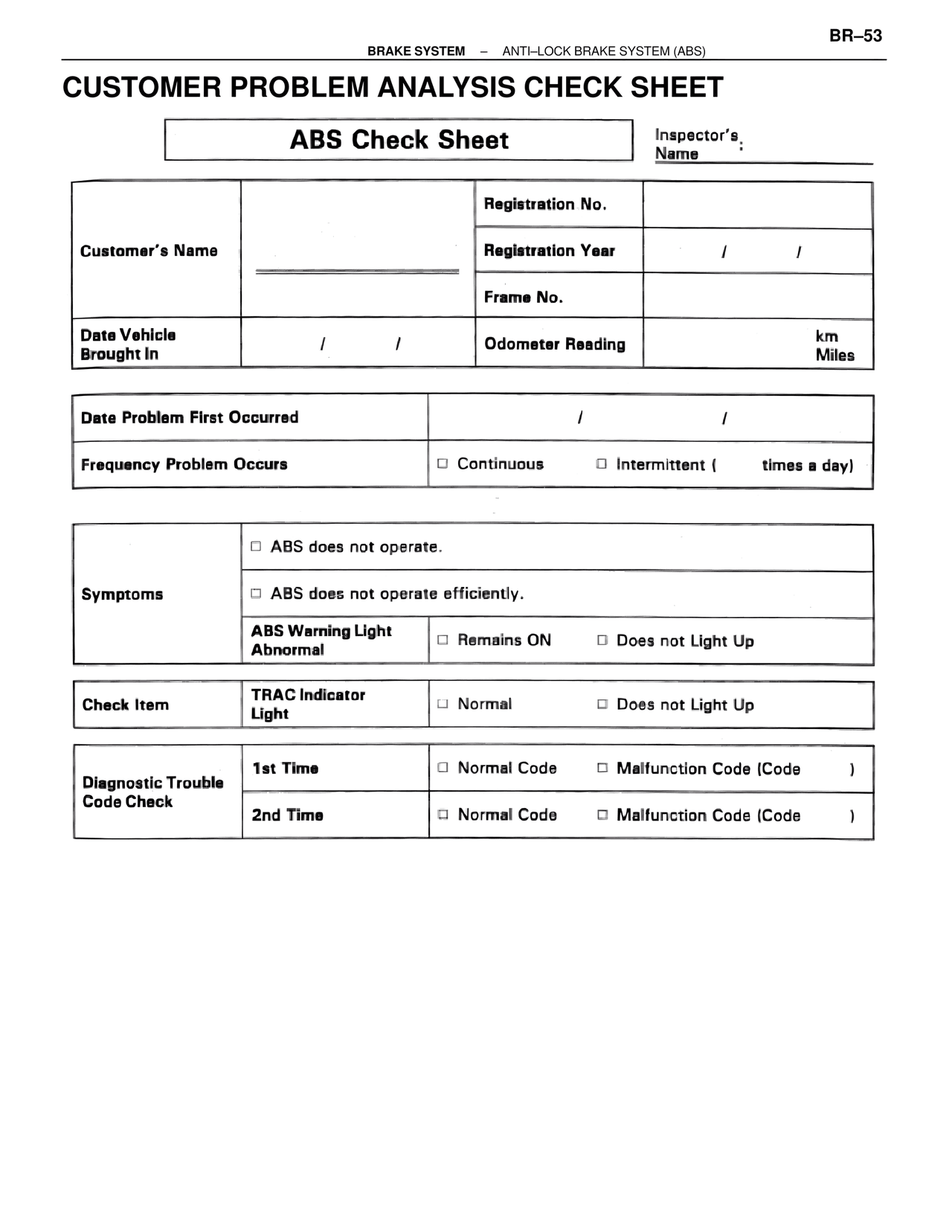

BAT/Brakes, ABS & TRAC Systems — Customer Problem Analysis Check Sheet, page 53

BRAKE SYSTEM – ANTI-LOCK BRAKE SYSTEM (ABS)

CUSTOMER PROBLEM ANALYSIS CHECK SHEET

ABS Check Sheet

Inspector's Name:

Customer's Name

Registration No.
Registration Year          /          /
Frame No.

Date Vehicle Brought In          /          /

Odometer Reading          km
                                        Miles

Date Problem First Occurred          /          /

Frequency Problem Occurs          □ Continuous          □ Intermittent (          times a day)

Symptoms
□ ABS does not operate.
□ ABS does not operate efficiently.
ABS Warning Light Abnormal          □ Remains ON          □ Does not Light Up

Check Item          TRAC Indicator Light          □ Normal          □ Does not Light Up

Diagnostic Trouble Code Check
1st Time          □ Normal Code          □ Malfunction Code (Code          )
2nd Time          □ Normal Code          □ Malfunction Code (Code          )
