BR–85

BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS)

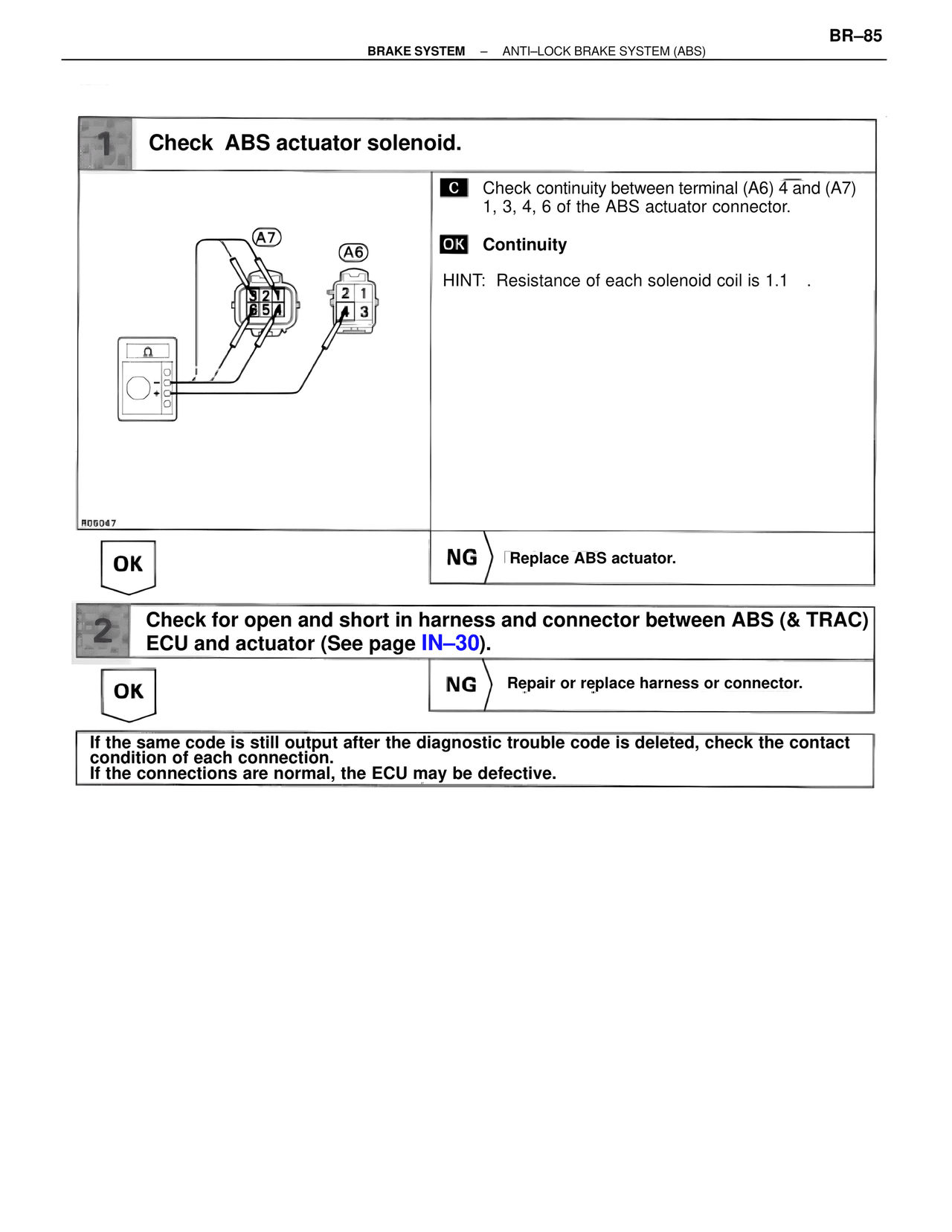

1  Check ABS actuator solenoid.

C  Check continuity between terminal (A6) 4 and (A7) 1, 3, 4, 6 of the ABS actuator connector.

OK  Continuity

HINT:  Resistance of each solenoid coil is 1.1   .

R06047

OK                          NG  Replace ABS actuator.

2  Check for open and short in harness and connector between ABS (& TRAC) ECU and actuator (See page IN–30).

OK                          NG  Repair or replace harness or connector.

If the same code is still output after the diagnostic trouble code is deleted, check the contact condition of each connection.
If the connections are normal, the ECU may be defective.
