BR-89
BRAKE SYSTEM — ANTI-LOCK BRAKE SYSTEM (ABS)

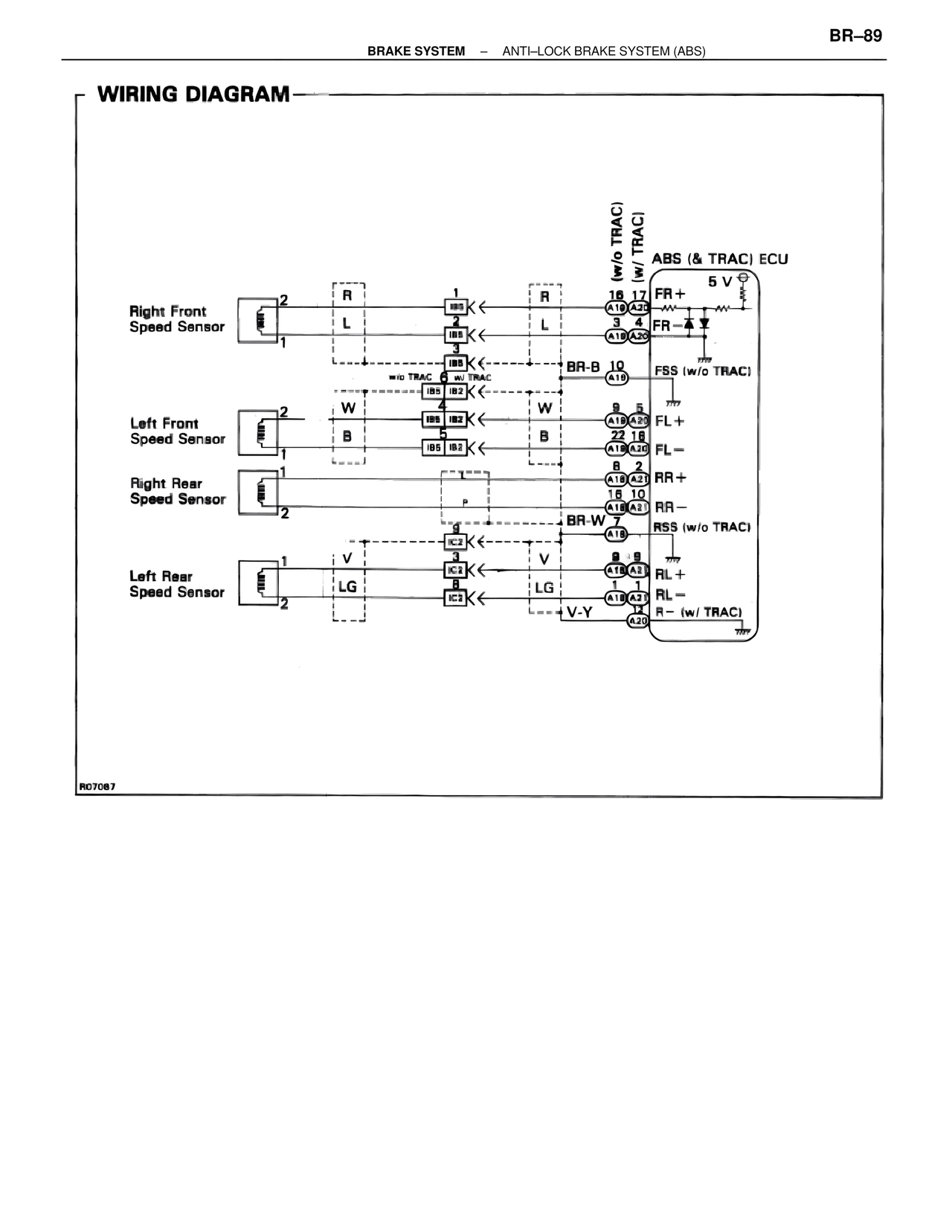

WIRING DIAGRAM
Right Front
Speed Sensor
Left Front
Speed Sensor
Right Rear
Speed Sensor
Left Rear
Speed Sensor
2
R
1
R
16 12 FR+
A19 A23
L
IB5
L
3 4 FR-
A19 A20
3
IB5
BR-B 10 FSS (w/o TRAC)
w/o TRAC IB5 w/ TRAC IB2
A19
2
W
5
IB5 IB2
W
9 5 FL+
A18 A23
B
5
IB5 IB2
B
22 18 FL-
A18 A20
1
8 2 RR+
A18 A21
2
P
16 10 RR-
A18 A20
BR-W 7 RSS (w/o TRAC)
A18
1
V
4
IC2
V
9 9 RL+
A18 A23
LG
5
IC2
LG
1 1 RL-
A18 A23
2
8
IC2
V-Y 12 R- (w/ TRAC)
A20
(w/o TRAC)
(w/ TRAC)
ABS (& TRAC) ECU
5V
FSS (w/o TRAC)
RSS (w/o TRAC)
R- (w/ TRAC)
R07087
