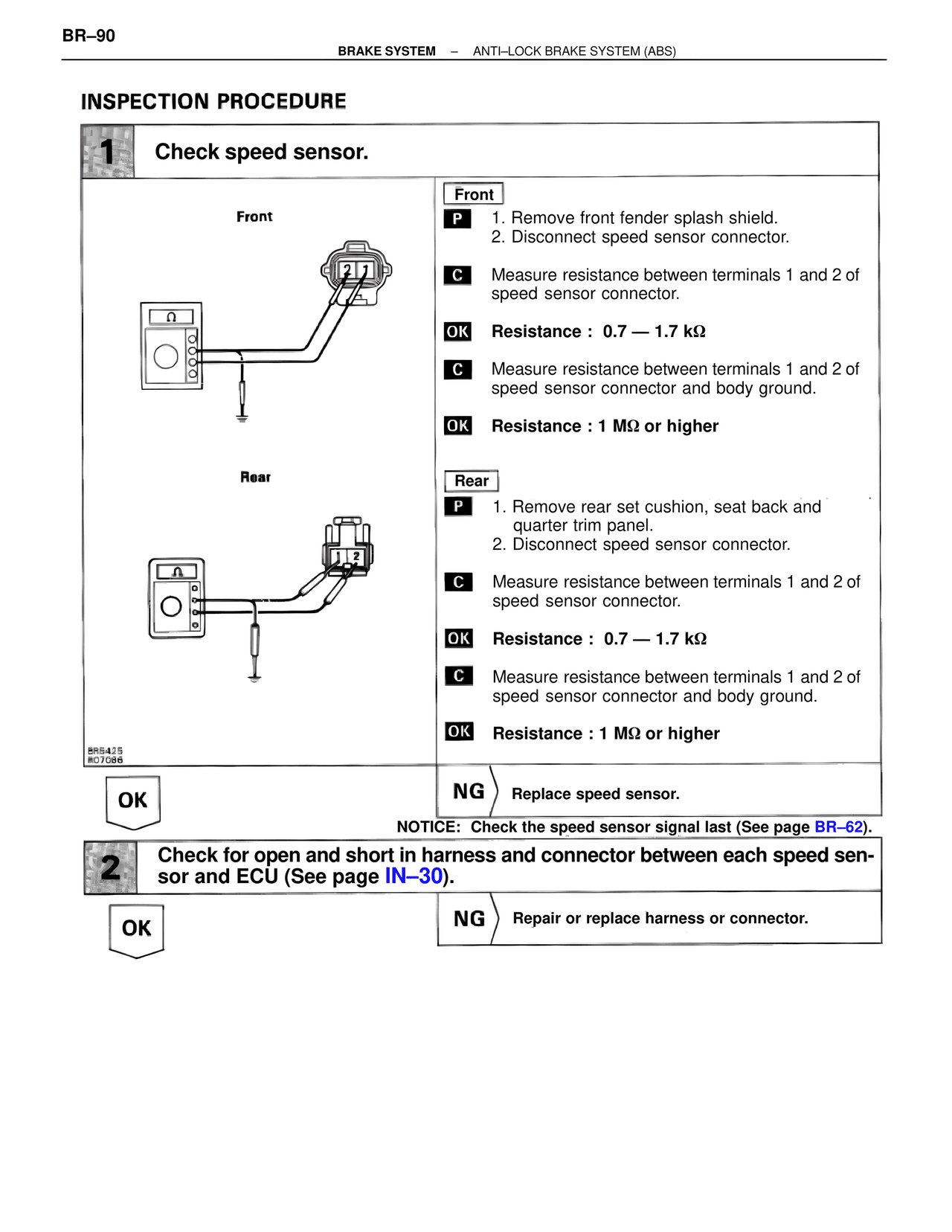

BR–90
BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS)
INSPECTION PROCEDURE
1 Check speed sensor.
Front
Front
1. Remove front fender splash shield.
2. Disconnect speed sensor connector.
Measure resistance between terminals 1 and 2 of speed sensor connector.
OK Resistance : 0.7 — 1.7 kΩ
Measure resistance between terminals 1 and 2 of speed sensor connector and body ground.
OK Resistance : 1 MΩ or higher
Rear
Rear
1. Remove rear set cushion, seat back and quarter trim panel.
2. Disconnect speed sensor connector.
Measure resistance between terminals 1 and 2 of speed sensor connector.
OK Resistance : 0.7 — 1.7 kΩ
Measure resistance between terminals 1 and 2 of speed sensor connector and body ground.
OK Resistance : 1 MΩ or higher
BR5425
#07086
OK NG Replace speed sensor.
NOTICE: Check the speed sensor signal last (See page BR–62).
2 Check for open and short in harness and connector between each speed sensor and ECU (See page IN–30).
OK NG Repair or replace harness or connector.
