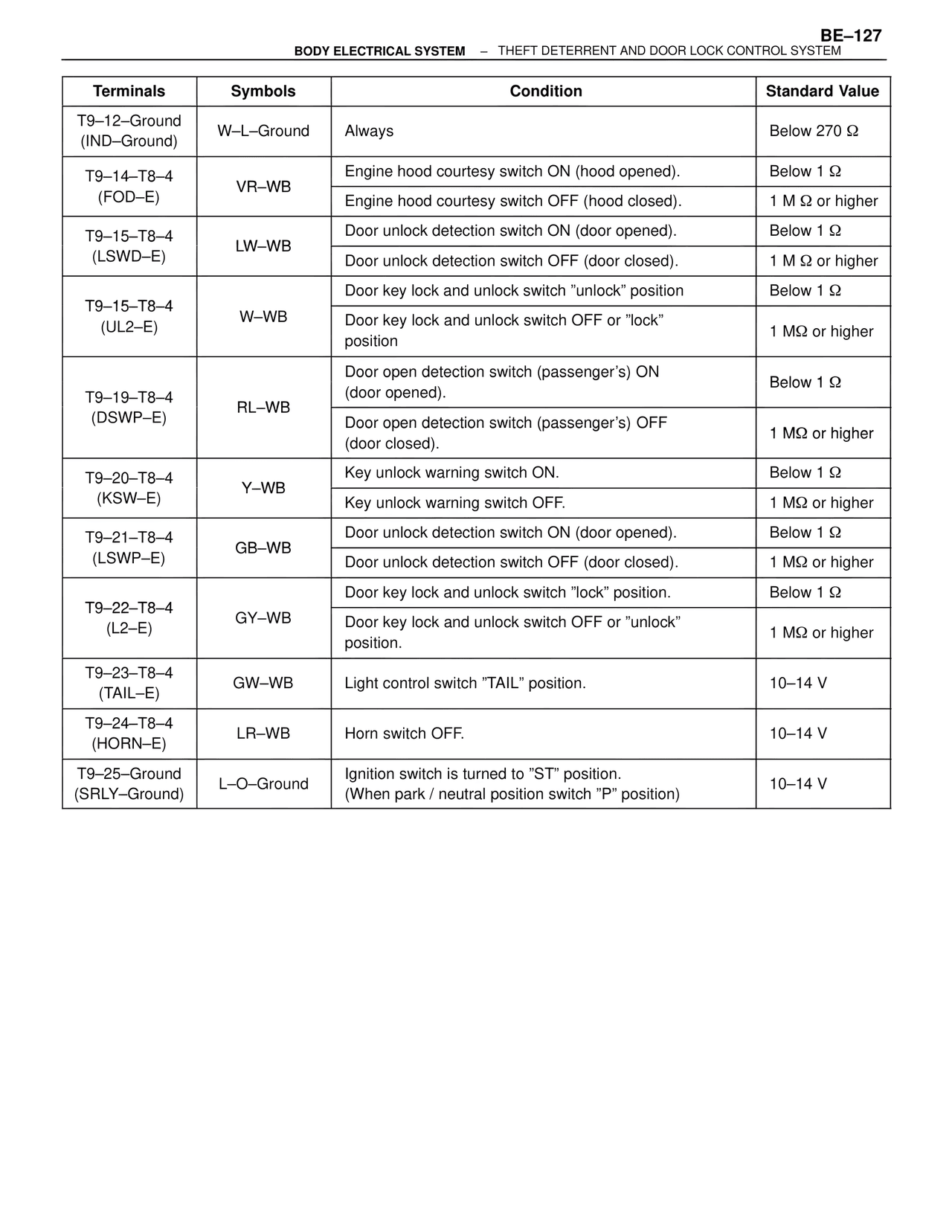

BE–127 BODY ELECTRICAL SYSTEM – THEFT DETERRENT AND DOOR LOCK CONTROL SYSTEM Terminals | Symbols | Condition | Standard Value T9–12–Ground (IND–Ground) | W–L–Ground | Always | Below 270 Ω T9–14–T8–4 (FOD–E) | VR–WB | Engine hood courtesy switch ON (hood opened). | Below 1 Ω Engine hood courtesy switch OFF (hood closed). | 1 M Ω or higher T9–15–T8–4 (LSWD–E) | LW–WB | Door unlock detection switch ON (door opened). | Below 1 Ω Door unlock detection switch OFF (door closed). | 1 M Ω or higher T9–15–T8–4 (UL2–E) | W–WB | Door key lock and unlock switch "unlock" position | Below 1 Ω Door key lock and unlock switch OFF or "lock" position | 1 MΩ or higher T9–19–T8–4 (DSWP–E) | RL–WB | Door open detection switch (passenger's) ON (door opened). | Below 1 Ω Door open detection switch (passenger's) OFF (door closed). | 1 MΩ or higher T9–20–T8–4 (KSW–E) | Y–WB | Key unlock warning switch ON. | Below 1 Ω Key unlock warning switch OFF. | 1 MΩ or higher T9–21–T8–4 (LSWP–E) | GB–WB | Door unlock detection switch ON (door opened). | Below 1 Ω Door unlock detection switch OFF (door closed). | 1 MΩ or higher T9–22–T8–4 (L2–E) | GY–WB | Door key lock and unlock switch "lock" position. | Below 1 Ω Door key lock and unlock switch OFF or "unlock" position. | 1 MΩ or higher T9–23–T8–4 (TAIL–E) | GW–WB | Light control switch "TAIL" position. | 10–14 V T9–24–T8–4 (HORN–E) | LR–WB | Horn switch OFF. | 10–14 V T9–25–Ground (SRLY–Ground) | L–O–Ground | Ignition switch is turned to "ST" position. (When park / neutral position switch "P" position) | 10–14 V
