BE–128
BODY ELECTRICAL SYSTEM – THEFT DETERRENT AND DOOR LOCK CONTROL SYSTEM
CIRCUIT INSPECTION

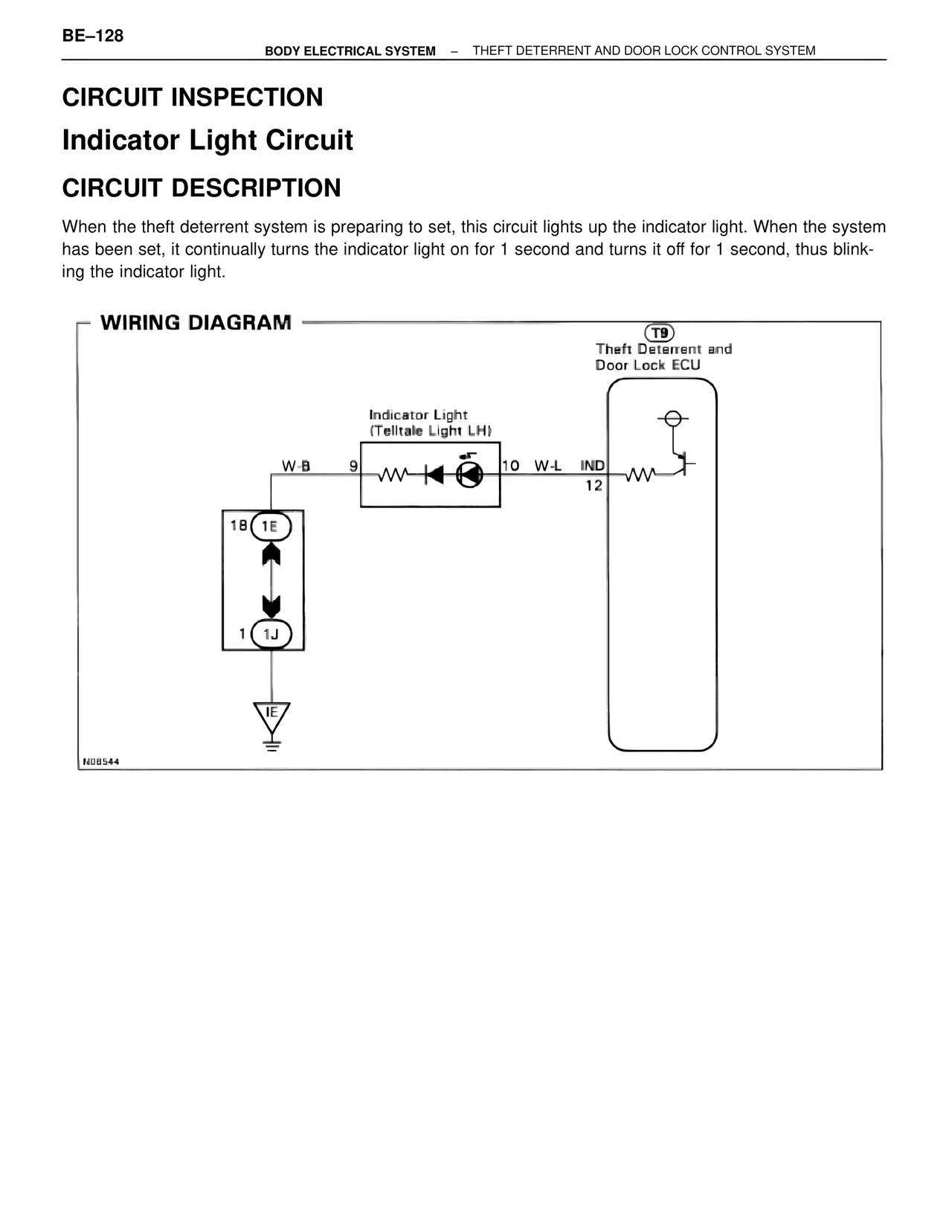

Indicator Light Circuit
CIRCUIT DESCRIPTION
When the theft deterrent system is preparing to set, this circuit lights up the indicator light. When the system has been set, it continually turns the indicator light on for 1 second and turns it off for 1 second, thus blinking the indicator light.
WIRING DIAGRAM
T9
Theft Deterrent and
Door Lock ECU
Indicator Light
(Telltale Light LH)
W-B 9
W-L IND
10
12
18 1E
1 1J
IE
N08544
