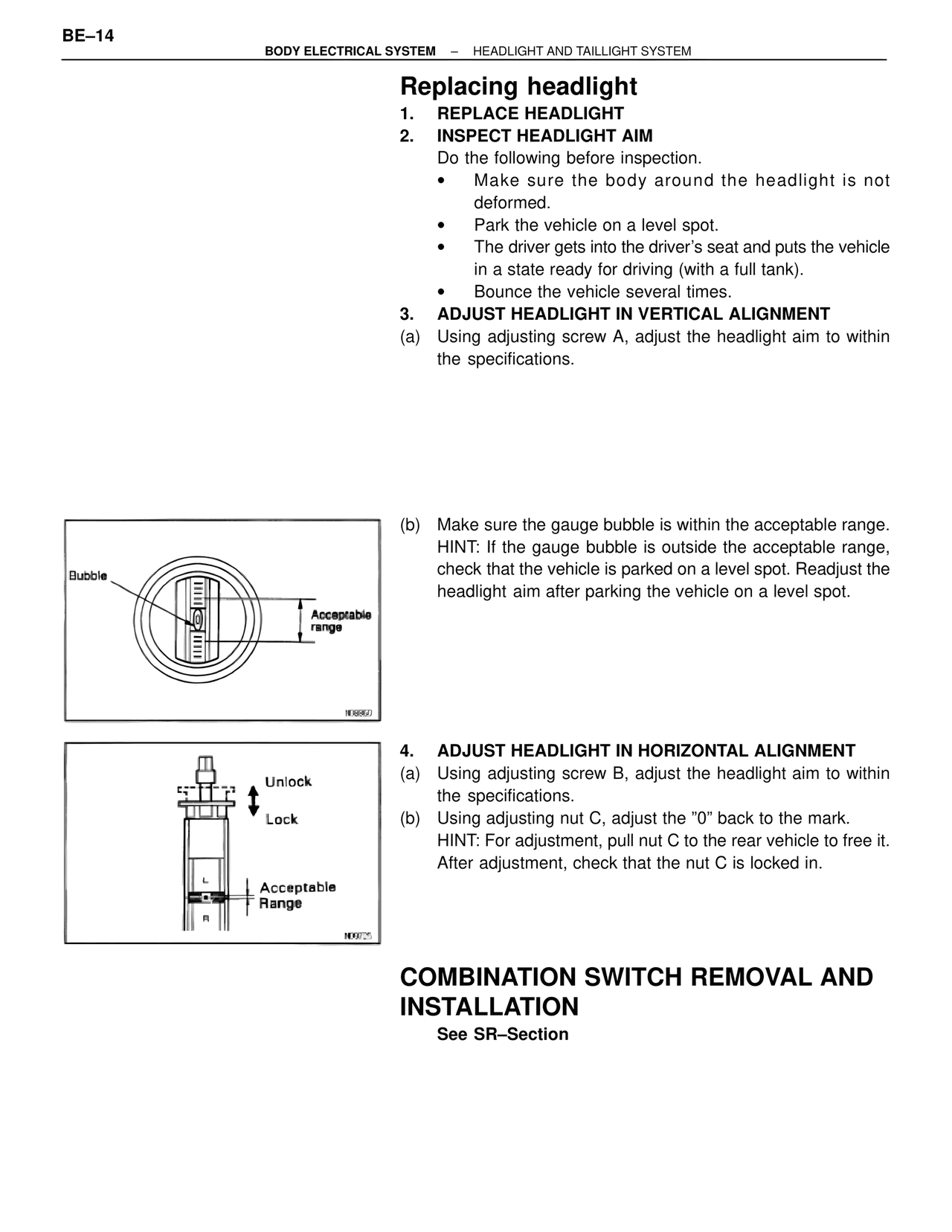

BE–14
BODY ELECTRICAL SYSTEM – HEADLIGHT AND TAILLIGHT SYSTEM
Replacing headlight
1. REPLACE HEADLIGHT
2. INSPECT HEADLIGHT AIM
Do the following before inspection.
• Make sure the body around the headlight is not deformed.
• Park the vehicle on a level spot.
• The driver gets into the driver's seat and puts the vehicle in a state ready for driving (with a full tank).
• Bounce the vehicle several times.
3. ADJUST HEADLIGHT IN VERTICAL ALIGNMENT
(a) Using adjusting screw A, adjust the headlight aim to within the specifications.
Bubble
Acceptable range
ND8860
(b) Make sure the gauge bubble is within the acceptable range.
HINT: If the gauge bubble is outside the acceptable range, check that the vehicle is parked on a level spot. Readjust the headlight aim after parking the vehicle on a level spot.
Unlock
Lock
L
R
Acceptable Range
ND9725
4. ADJUST HEADLIGHT IN HORIZONTAL ALIGNMENT
(a) Using adjusting screw B, adjust the headlight aim to within the specifications.
(b) Using adjusting nut C, adjust the "0" back to the mark.
HINT: For adjustment, pull nut C to the rear vehicle to free it. After adjustment, check that the nut C is locked in.
COMBINATION SWITCH REMOVAL AND INSTALLATION
See SR–Section
