BODY ELECTRICAL SYSTEM – THEFT DETERRENT AND DOOR LOCK CONTROL SYSTEM

Luggage Compartment Door Key Lock and Unlock Switch Circuit

CIRCUIT DESCRIPTION

The luggage compartment door key lock and unlock switch goes on when the back door key cylinder is turned to the unlock side with the key.

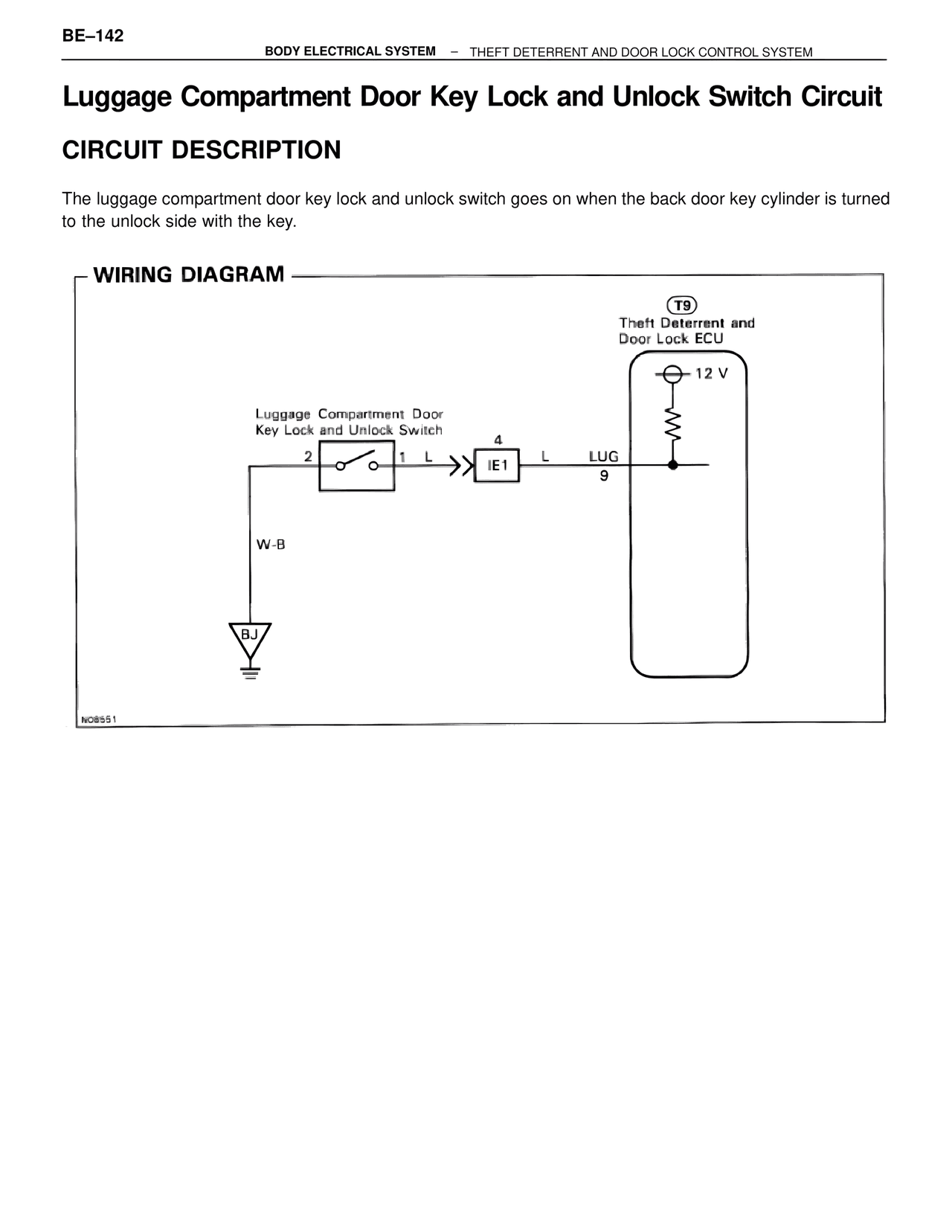

WIRING DIAGRAM

T9
Theft Deterrent and
Door Lock ECU

12 V

Luggage Compartment Door
Key Lock and Unlock Switch

2  1  L

4
IE1  L  LUG
9

W-B

BJ

N08551
