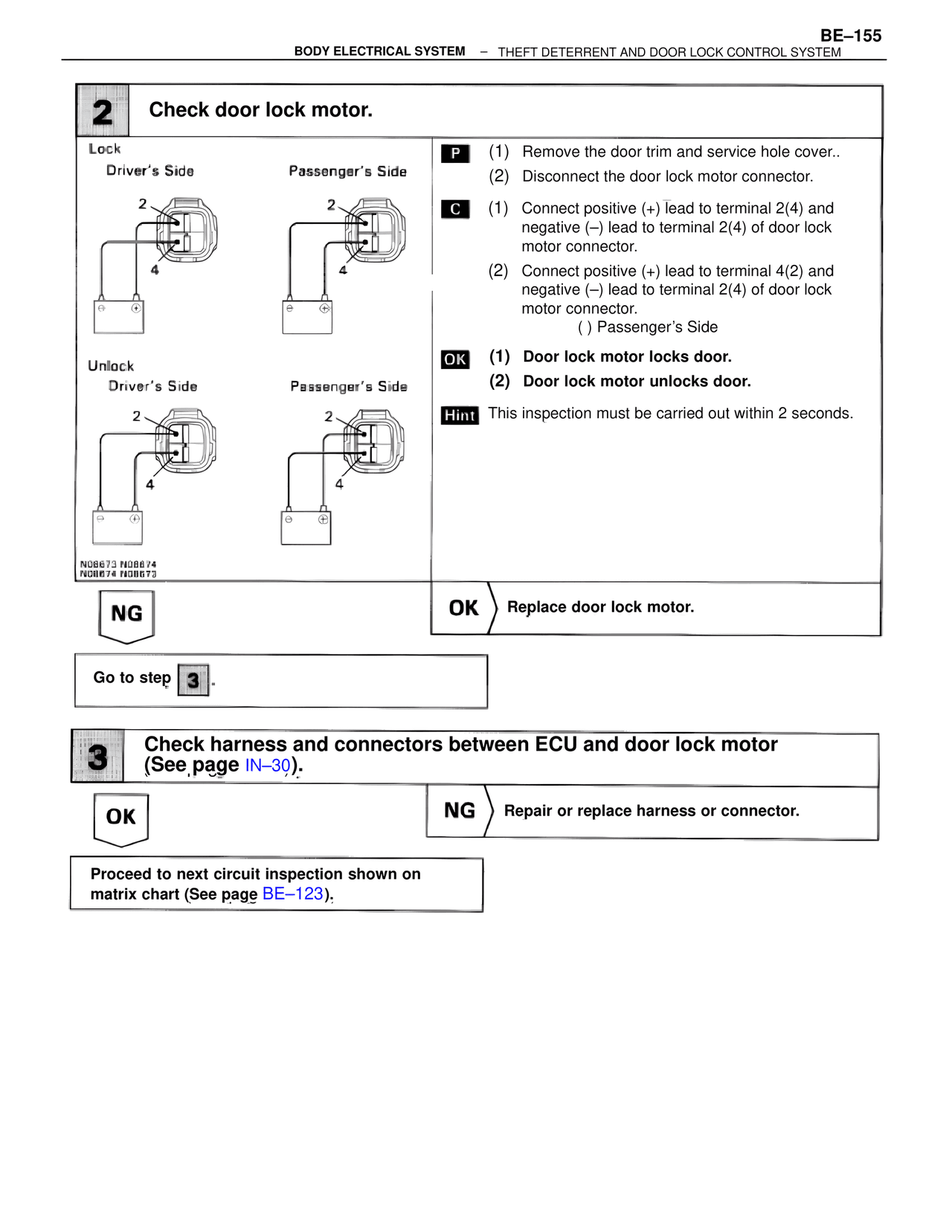

BE–155 BODY ELECTRICAL SYSTEM – THEFT DETERRENT AND DOOR LOCK CONTROL SYSTEM 2 Check door lock motor. Lock Driver's Side Passenger's Side 2 2 4 4 Unlock Driver's Side Passenger's Side 2 2 4 4 N08673 N08674 N08674 N08673 P (1) Remove the door trim and service hole cover.. (2) Disconnect the door lock motor connector. C (1) Connect positive (+) lead to terminal 2(4) and negative (–) lead to terminal 2(4) of door lock motor connector. (2) Connect positive (+) lead to terminal 4(2) and negative (–) lead to terminal 2(4) of door lock motor connector. ( ) Passenger's Side OK (1) Door lock motor locks door. (2) Door lock motor unlocks door. Hint This inspection must be carried out within 2 seconds. NG OK Replace door lock motor. Go to step 3 . 3 Check harness and connectors between ECU and door lock motor (See page IN–30). OK NG Repair or replace harness or connector. Proceed to next circuit inspection shown on matrix chart (See page BE–123).
