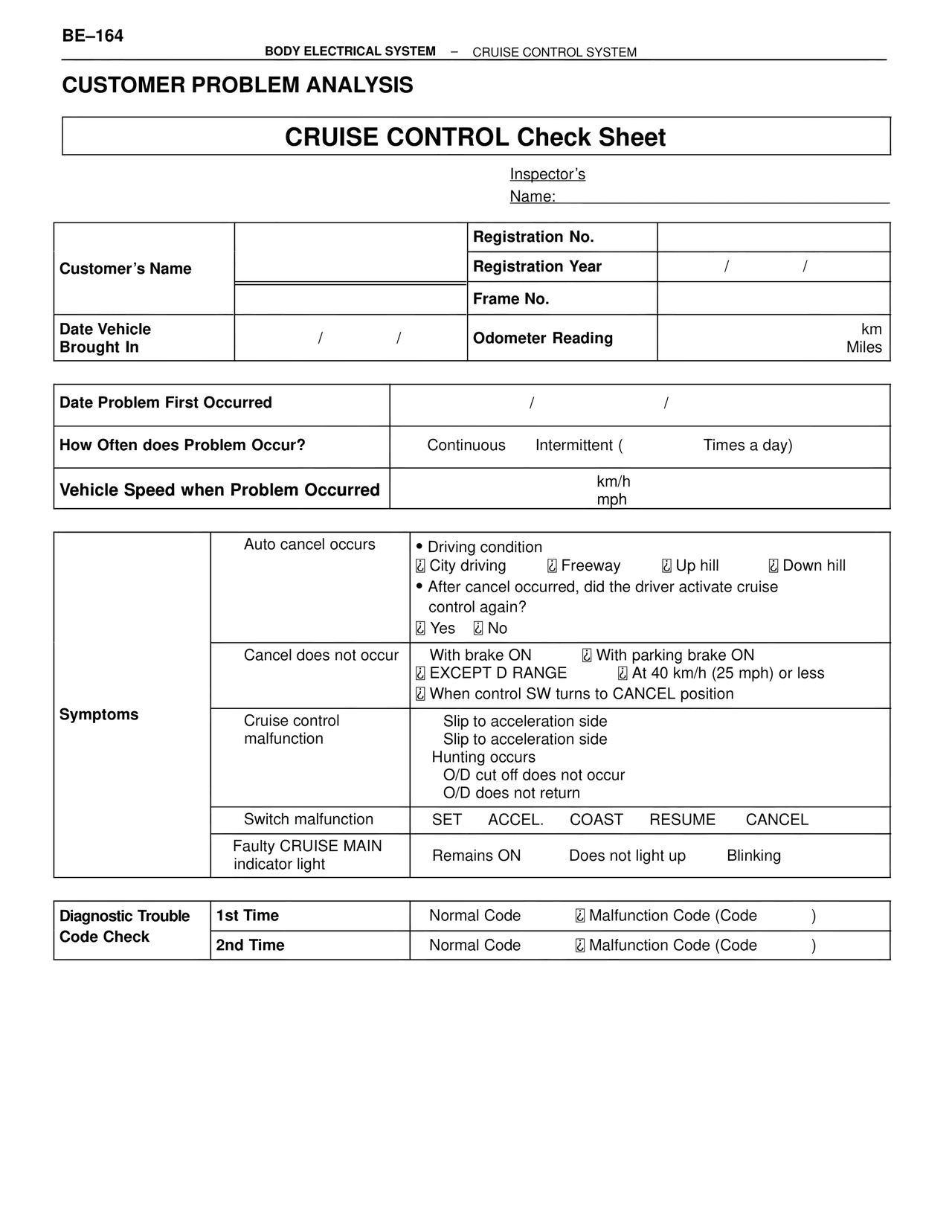

BE–164
BODY ELECTRICAL SYSTEM – CRUISE CONTROL SYSTEM
CUSTOMER PROBLEM ANALYSIS
CRUISE CONTROL Check Sheet
Inspector's
Name:
Customer's Name
Registration No.
Registration Year / /
Frame No.
Date Vehicle
Brought In / /
Odometer Reading km
Miles
Date Problem First Occurred / /
How Often does Problem Occur? Continuous Intermittent ( Times a day)
Vehicle Speed when Problem Occurred km/h
mph
Symptoms
Auto cancel occurs
• Driving condition
☑ City driving ☑ Freeway ☑ Up hill ☑ Down hill
• After cancel occurred, did the driver activate cruise
control again?
☑ Yes ☑ No
Cancel does not occur
With brake ON ☑ With parking brake ON
☑ EXCEPT D RANGE ☑ At 40 km/h (25 mph) or less
☑ When control SW turns to CANCEL position
Cruise control
malfunction
Slip to acceleration side
Slip to acceleration side
Hunting occurs
O/D cut off does not occur
O/D does not return
Switch malfunction SET ACCEL. COAST RESUME CANCEL
Faulty CRUISE MAIN
indicator light Remains ON Does not light up Blinking
Diagnostic Trouble
Code Check
1st Time Normal Code ☑ Malfunction Code (Code )
2nd Time Normal Code ☑ Malfunction Code (Code )
