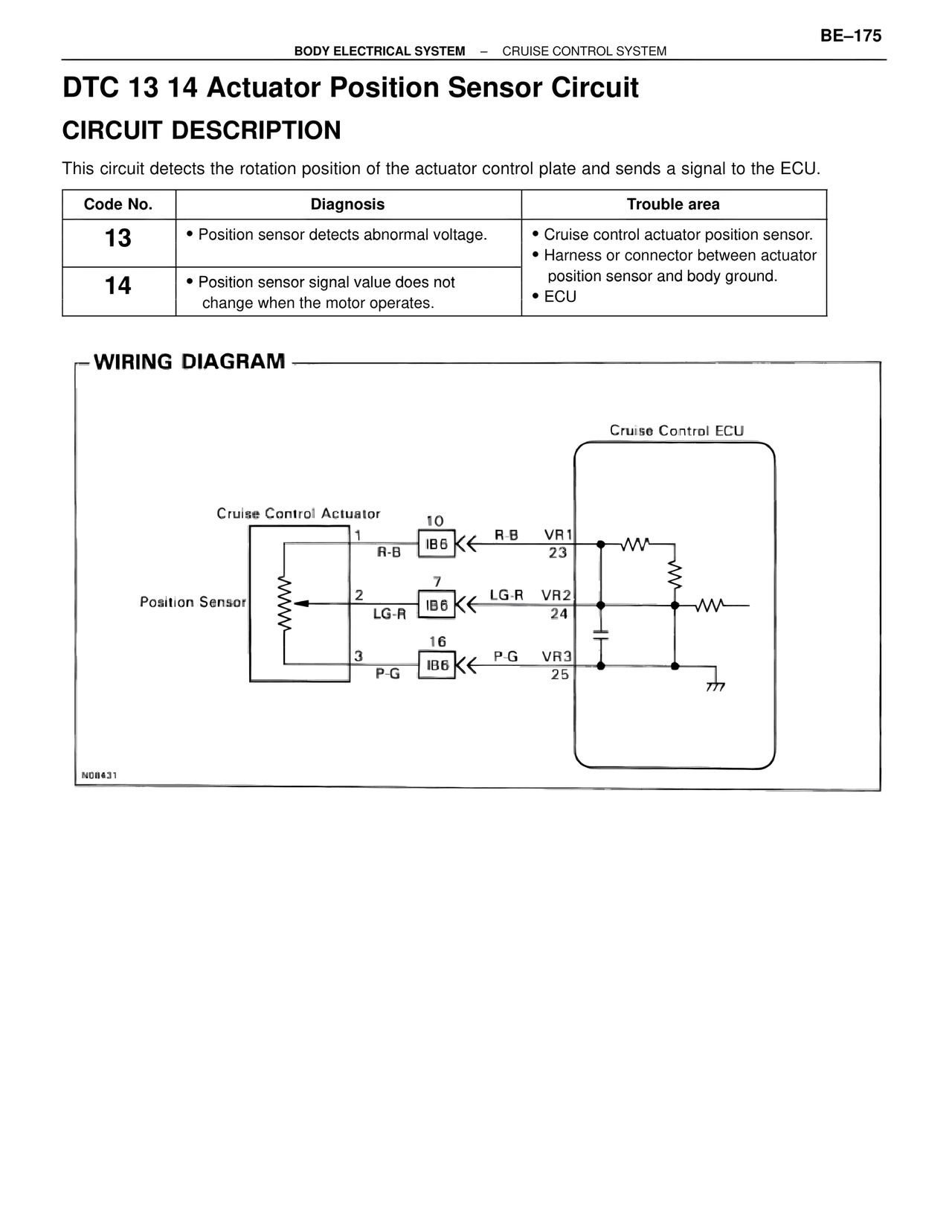

BODY ELECTRICAL SYSTEM – CRUISE CONTROL SYSTEM

DTC 13 14 Actuator Position Sensor Circuit

CIRCUIT DESCRIPTION

This circuit detects the rotation position of the actuator control plate and sends a signal to the ECU.

Code No. | Diagnosis | Trouble area
13 | • Position sensor detects abnormal voltage. | • Cruise control actuator position sensor.
• Harness or connector between actuator position sensor and body ground.
• ECU
14 | • Position sensor signal value does not change when the motor operates. |

WIRING DIAGRAM

Cruise Control Actuator
1
R-B
2
LG-R
3
P-G

Position Sensor

10
IB6 R-B VR1
23
7
IB6 LG-R VR2
24
16
IB6 P-G VR3
25

Cruise Control ECU

N08431
