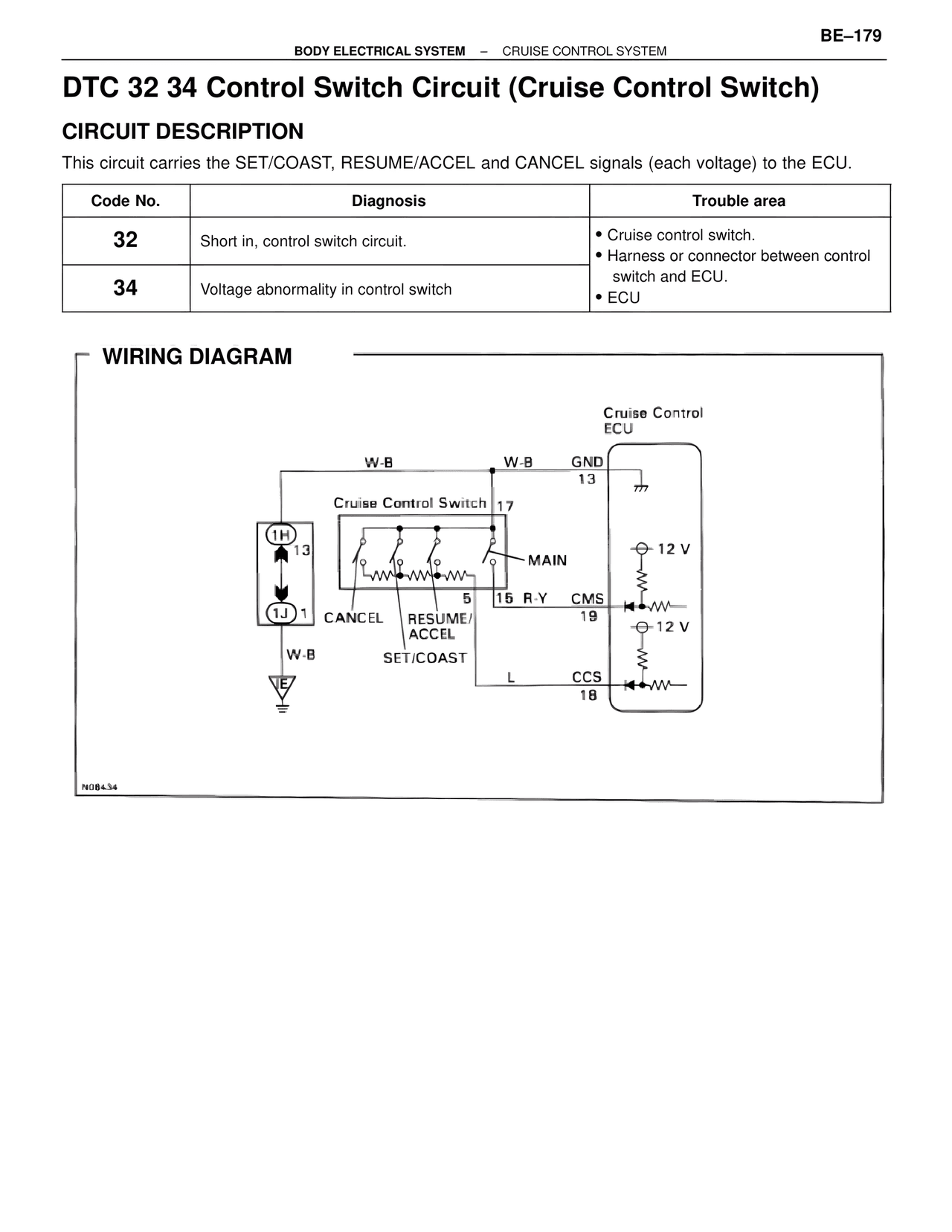

BE-179
BODY ELECTRICAL SYSTEM – CRUISE CONTROL SYSTEM

DTC 32 34 Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION
This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.

Code No. | Diagnosis | Trouble area
32 | Short in, control switch circuit. | • Cruise control switch.
• Harness or connector between control switch and ECU.
• ECU
34 | Voltage abnormality in control switch

WIRING DIAGRAM

Cruise Control
ECU

W-B          W-B     GND
                              13
Cruise Control Switch  17

1H
13

1J  1     CANCEL    RESUME/        MAIN
                        ACCEL
                                    5    15  R-Y    CMS
W-B                 SET/COAST              19
E7
                                    L      CCS
                                              18

N08434
