BODY ELECTRICAL SYSTEM – CRUISE CONTROL SYSTEM
Back up Power Source Circuit
CIRCUIT DESCRIPTION
The ECU back–up power source provides power even when the ignition switch is off and is used for diagnostic code memory, etc.

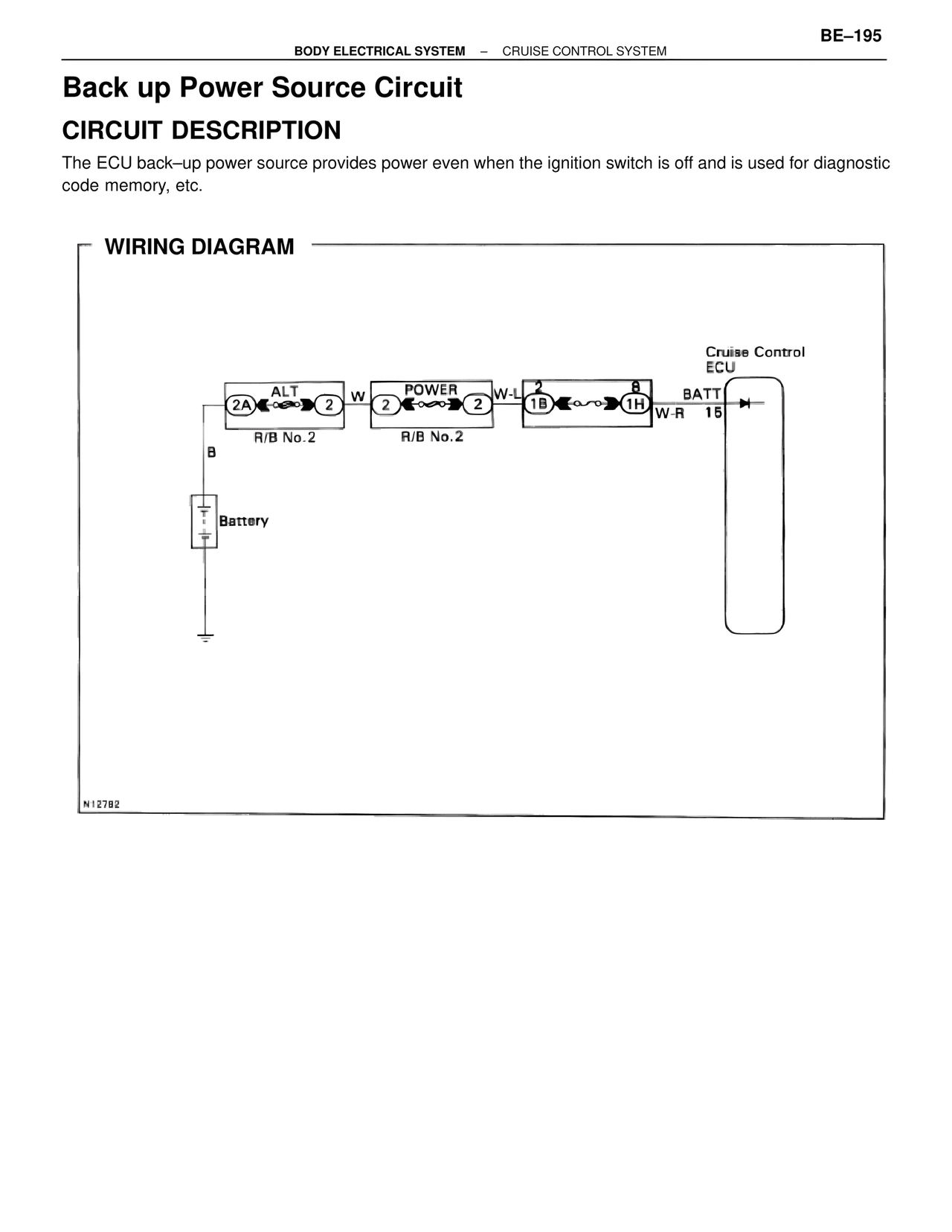

WIRING DIAGRAM
ALT
2A
2
W
POWER
2
2
W-L
2
1B
8
1H
Cruise Control
ECU
BATT
W-R
15
R/B No.2
R/B No.2
B
Battery
N12782
