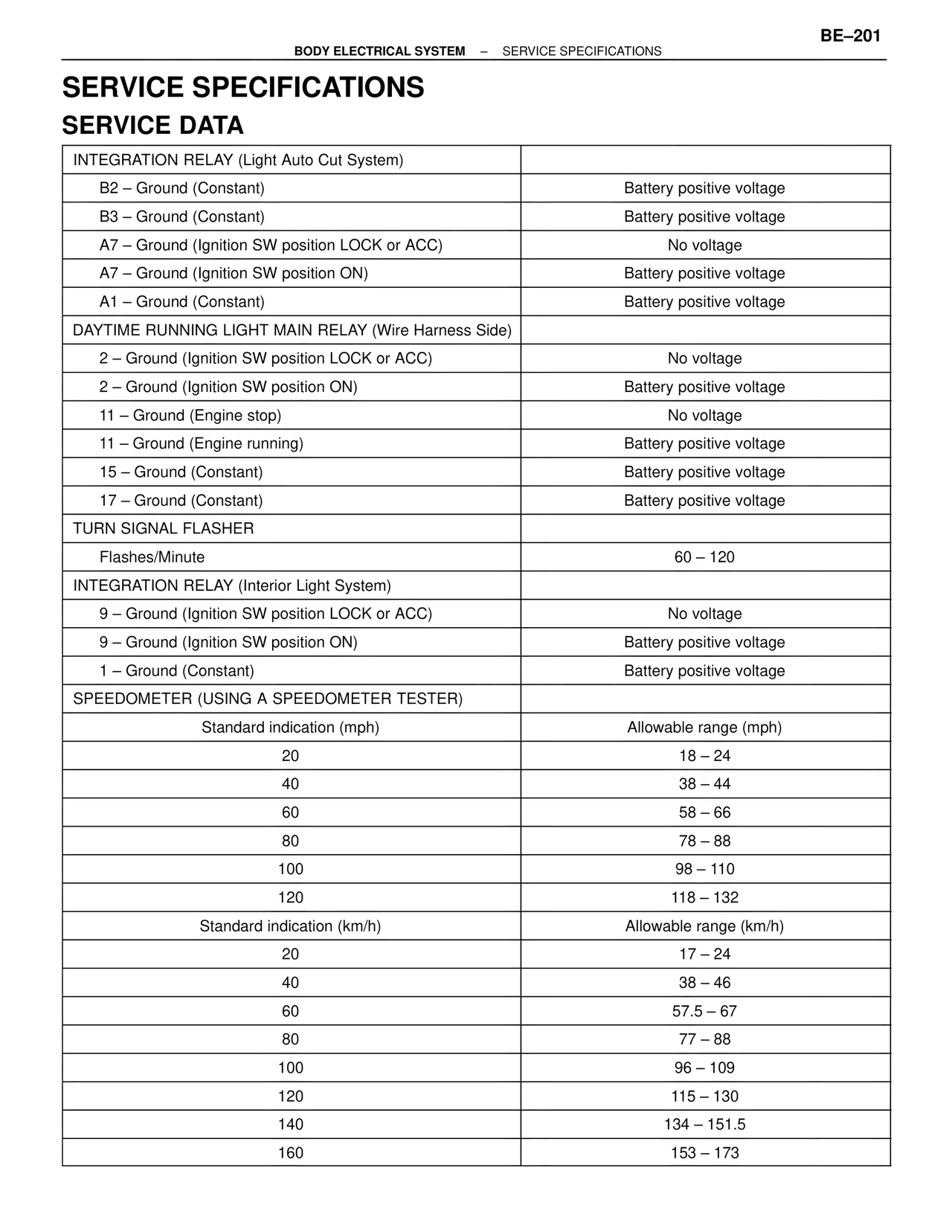

BE–201
BODY ELECTRICAL SYSTEM – SERVICE SPECIFICATIONS
SERVICE SPECIFICATIONS
SERVICE DATA
INTEGRATION RELAY (Light Auto Cut System)
B2 – Ground (Constant) Battery positive voltage
B3 – Ground (Constant) Battery positive voltage
A7 – Ground (Ignition SW position LOCK or ACC) No voltage
A7 – Ground (Ignition SW position ON) Battery positive voltage
A1 – Ground (Constant) Battery positive voltage
DAYTIME RUNNING LIGHT MAIN RELAY (Wire Harness Side)
2 – Ground (Ignition SW position LOCK or ACC) No voltage
2 – Ground (Ignition SW position ON) Battery positive voltage
11 – Ground (Engine stop) No voltage
11 – Ground (Engine running) Battery positive voltage
15 – Ground (Constant) Battery positive voltage
17 – Ground (Constant) Battery positive voltage
TURN SIGNAL FLASHER
Flashes/Minute 60 – 120
INTEGRATION RELAY (Interior Light System)
9 – Ground (Ignition SW position LOCK or ACC) No voltage
9 – Ground (Ignition SW position ON) Battery positive voltage
1 – Ground (Constant) Battery positive voltage
SPEEDOMETER (USING A SPEEDOMETER TESTER)
Standard indication (mph) Allowable range (mph)
20 18 – 24
40 38 – 44
60 58 – 66
80 78 – 88
100 98 – 110
120 118 – 132
Standard indication (km/h) Allowable range (km/h)
20 17 – 24
40 38 – 46
60 57.5 – 67
80 77 – 88
100 96 – 109
120 115 – 130
140 134 – 151.5
160 153 – 173
