BODY ELECTRICAL SYSTEM — SERVICE SPECIFICATIONS — MK4 Supra Body Electrical Systems, page 203
100%

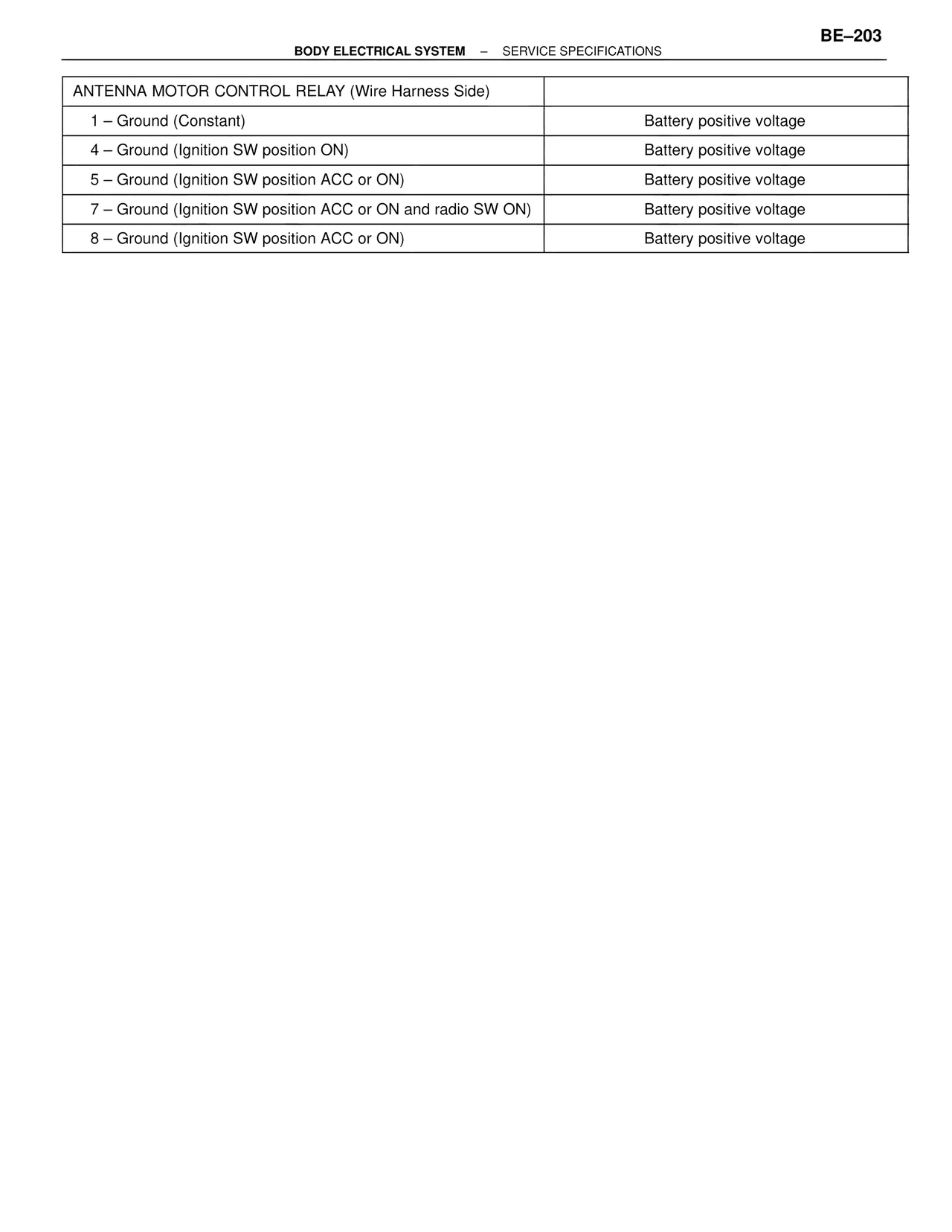

BE–203 BODY ELECTRICAL SYSTEM – SERVICE SPECIFICATIONS ANTENNA MOTOR CONTROL RELAY (Wire Harness Side) 1 – Ground (Constant) Battery positive voltage 4 – Ground (Ignition SW position ON) Battery positive voltage 5 – Ground (Ignition SW position ACC or ON) Battery positive voltage 7 – Ground (Ignition SW position ACC or ON and radio SW ON) Battery positive voltage 8 – Ground (Ignition SW position ACC or ON) Battery positive voltage
