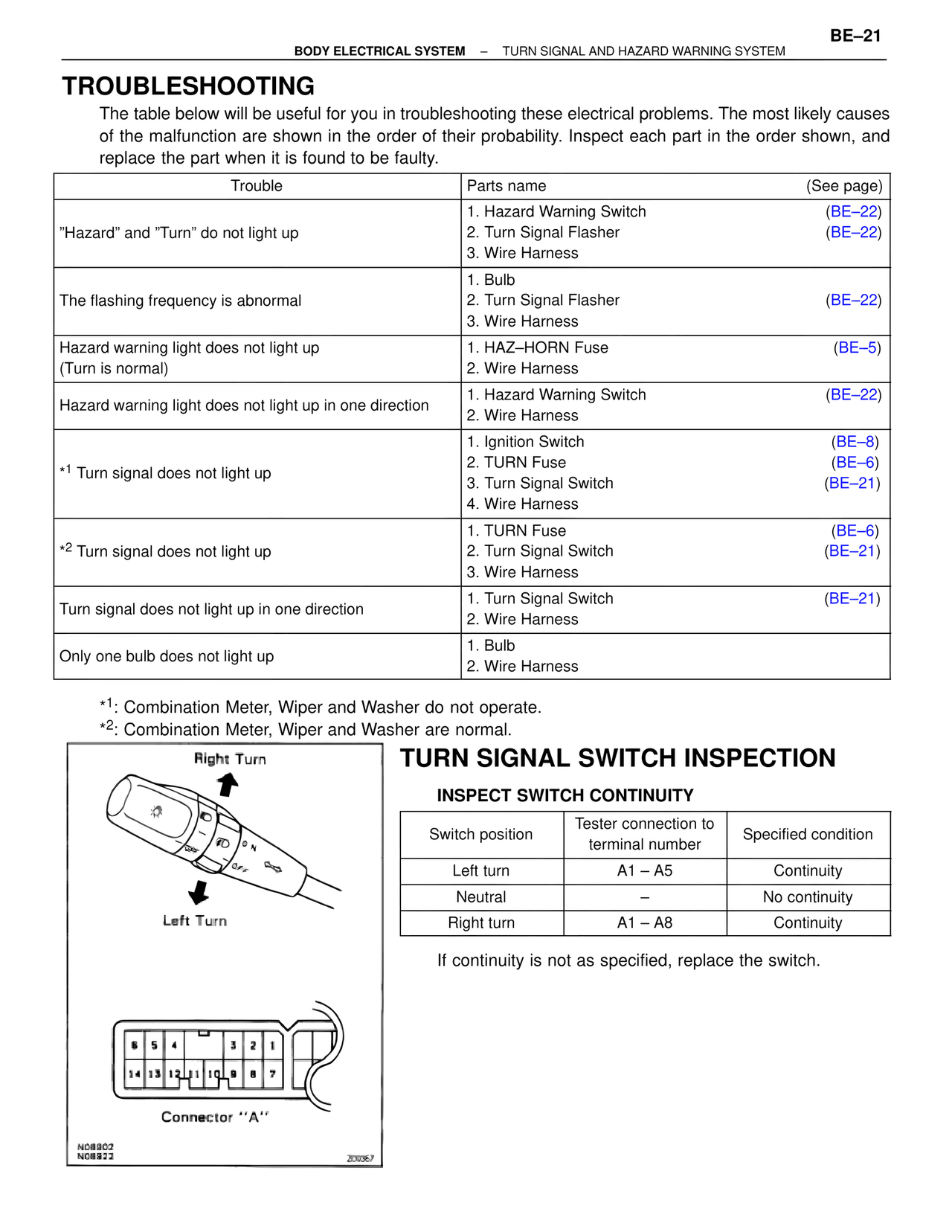

TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
Trouble | Parts name | (See page)
"Hazard" and "Turn" do not light up
1. Hazard Warning Switch (BE–22)
2. Turn Signal Flasher (BE–22)
3. Wire Harness
The flashing frequency is abnormal
1. Bulb
2. Turn Signal Flasher (BE–22)
3. Wire Harness
Hazard warning light does not light up
(Turn is normal)
1. HAZ–HORN Fuse (BE–5)
2. Wire Harness
Hazard warning light does not light up in one direction
1. Hazard Warning Switch (BE–22)
2. Wire Harness
*1 Turn signal does not light up
1. Ignition Switch (BE–8)
2. TURN Fuse (BE–6)
3. Turn Signal Switch (BE–21)
4. Wire Harness
*2 Turn signal does not light up
1. TURN Fuse (BE–6)
2. Turn Signal Switch (BE–21)
3. Wire Harness
Turn signal does not light up in one direction
1. Turn Signal Switch (BE–21)
2. Wire Harness
Only one bulb does not light up
1. Bulb
2. Wire Harness
*1: Combination Meter, Wiper and Washer do not operate.
*2: Combination Meter, Wiper and Washer are normal.
Right Turn
Left Turn
Connector "A"
N08902
N08922
200357
TURN SIGNAL SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
Switch position | Tester connection to terminal number | Specified condition
Left turn | A1 – A5 | Continuity
Neutral | – | No continuity
Right turn | A1 – A8 | Continuity
If continuity is not as specified, replace the switch.
