BE–22

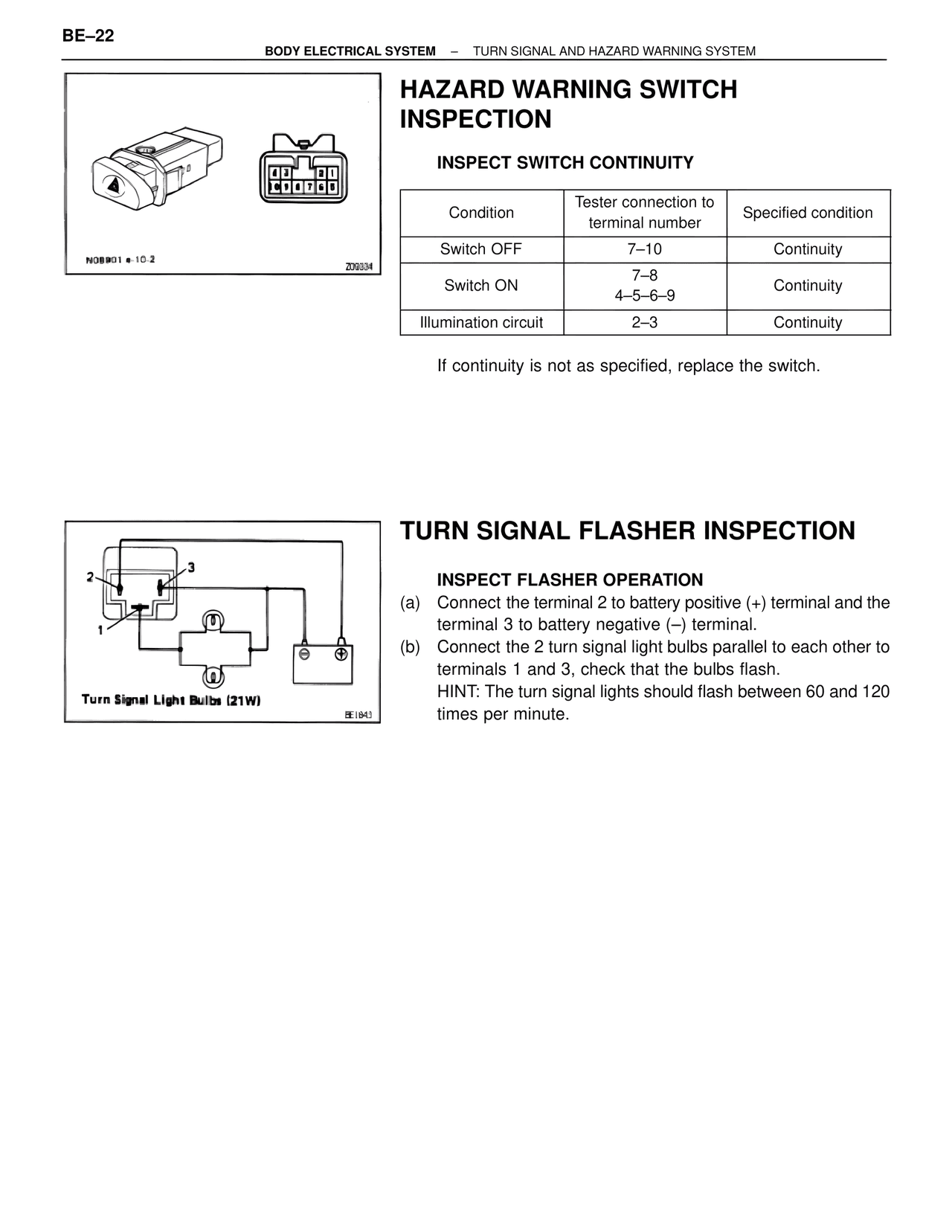

BODY ELECTRICAL SYSTEM – TURN SIGNAL AND HAZARD WARNING SYSTEM
HAZARD WARNING SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
Condition | Tester connection to terminal number | Specified condition
Switch OFF | 7–10 | Continuity
Switch ON | 7–8
4–5–6–9 | Continuity
Illumination circuit | 2–3 | Continuity
If continuity is not as specified, replace the switch.
N08901 #-10-2
Z09334
TURN SIGNAL FLASHER INSPECTION
INSPECT FLASHER OPERATION
(a) Connect the terminal 2 to battery positive (+) terminal and the terminal 3 to battery negative (–) terminal.
(b) Connect the 2 turn signal light bulbs parallel to each other to terminals 1 and 3, check that the bulbs flash.
HINT: The turn signal lights should flash between 60 and 120 times per minute.
Turn Signal Light Bulbs (21W)
BE1843
