BE–28

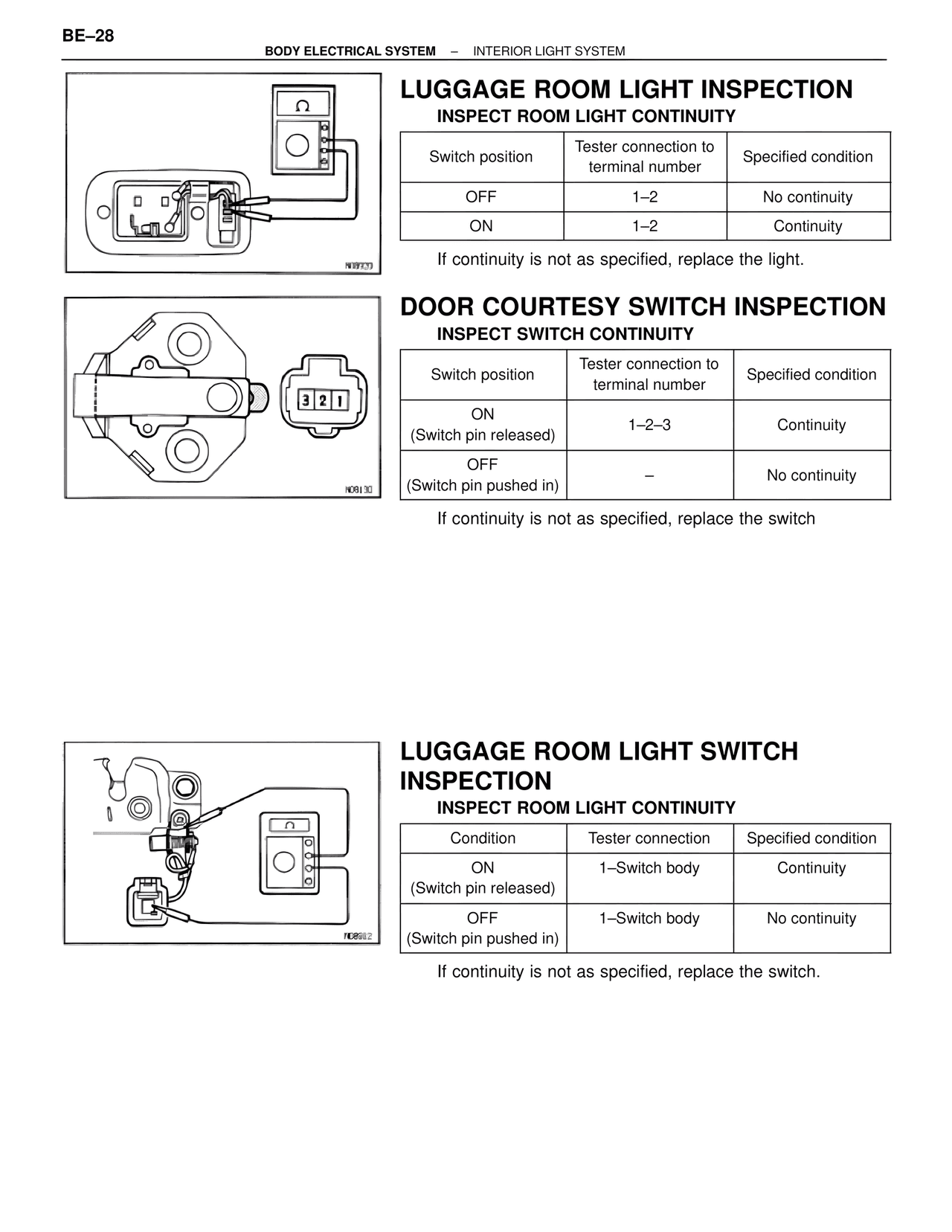

BODY ELECTRICAL SYSTEM – INTERIOR LIGHT SYSTEM
LUGGAGE ROOM LIGHT INSPECTION
INSPECT ROOM LIGHT CONTINUITY
Switch position | Tester connection to terminal number | Specified condition
OFF | 1–2 | No continuity
ON | 1–2 | Continuity
If continuity is not as specified, replace the light.
DOOR COURTESY SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
Switch position | Tester connection to terminal number | Specified condition
ON (Switch pin released) | 1–2–3 | Continuity
OFF (Switch pin pushed in) | – | No continuity
If continuity is not as specified, replace the switch
LUGGAGE ROOM LIGHT SWITCH INSPECTION
INSPECT ROOM LIGHT CONTINUITY
Condition | Tester connection | Specified condition
ON (Switch pin released) | 1–Switch body | Continuity
OFF (Switch pin pushed in) | 1–Switch body | No continuity
If continuity is not as specified, replace the switch.
