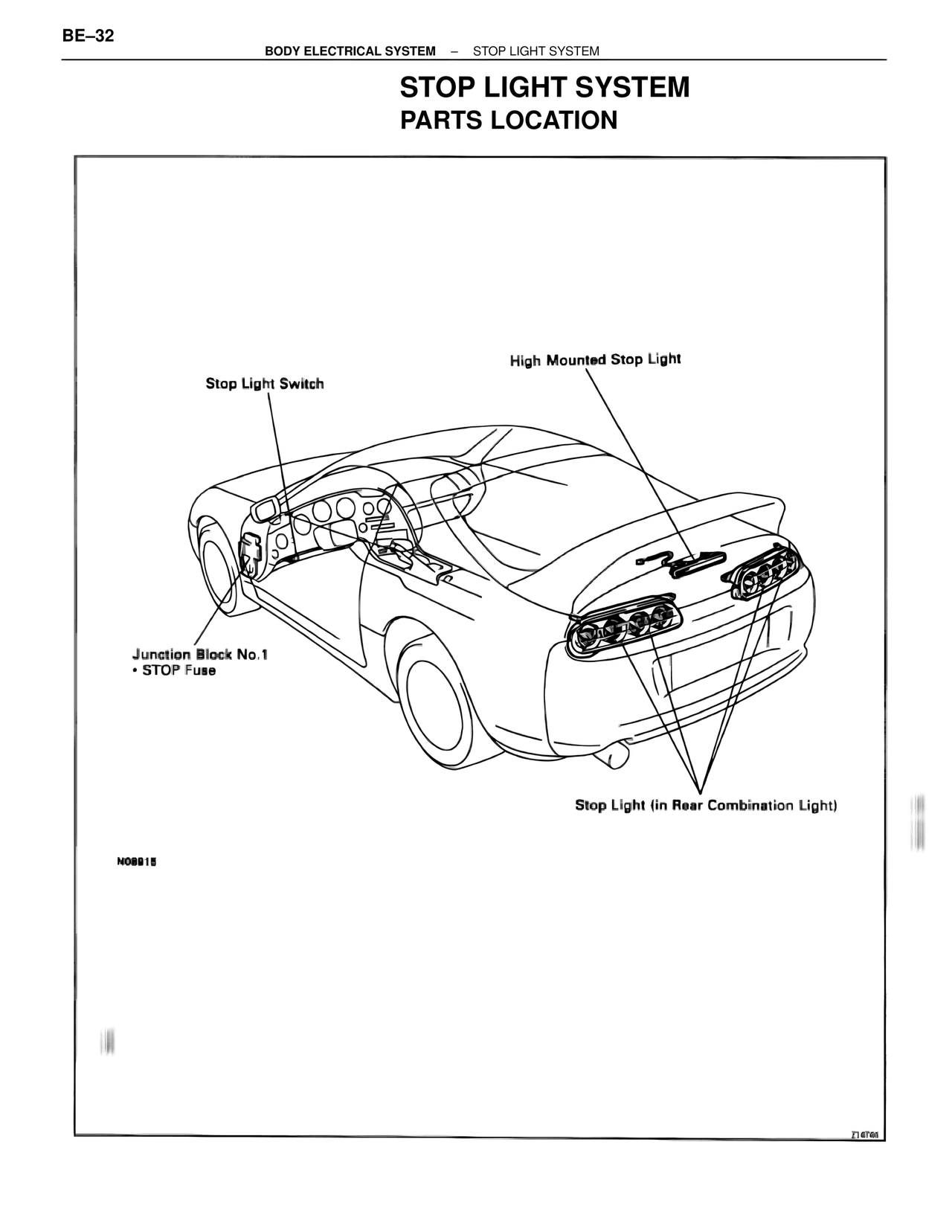

BE–32 BODY ELECTRICAL SYSTEM – STOP LIGHT SYSTEM STOP LIGHT SYSTEM PARTS LOCATION High Mounted Stop Light Stop Light Switch Junction Block No.1 • STOP Fuse Stop Light (in Rear Combination Light) N08815 Z14796
