BE–33

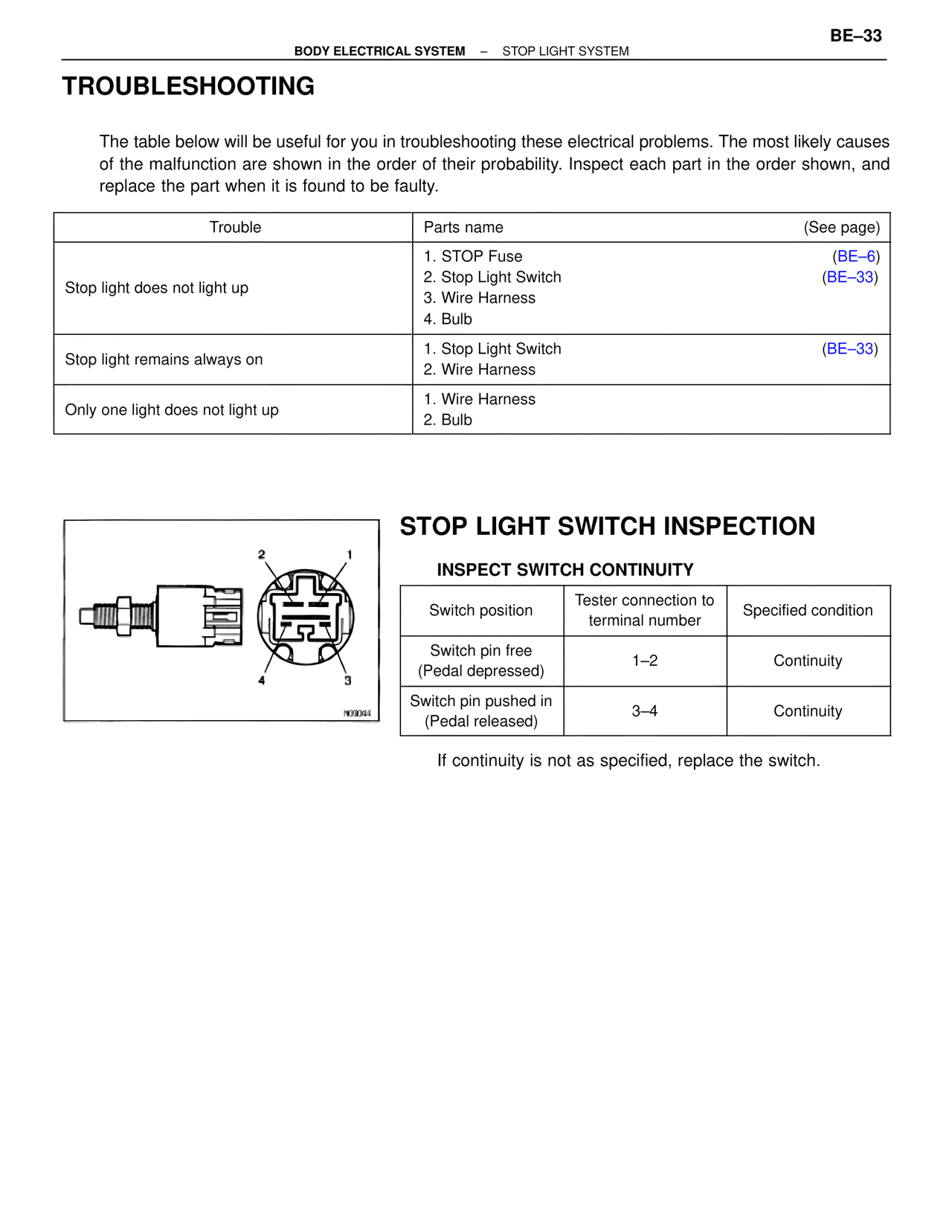

BODY ELECTRICAL SYSTEM – STOP LIGHT SYSTEM
TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
Trouble | Parts name | (See page)
Stop light does not light up
1. STOP Fuse (BE–6)
2. Stop Light Switch (BE–33)
3. Wire Harness
4. Bulb
Stop light remains always on
1. Stop Light Switch (BE–33)
2. Wire Harness
Only one light does not light up
1. Wire Harness
2. Bulb
STOP LIGHT SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
Switch position | Tester connection to terminal number | Specified condition
Switch pin free
(Pedal depressed) | 1–2 | Continuity
Switch pin pushed in
(Pedal released) | 3–4 | Continuity
If continuity is not as specified, replace the switch.
