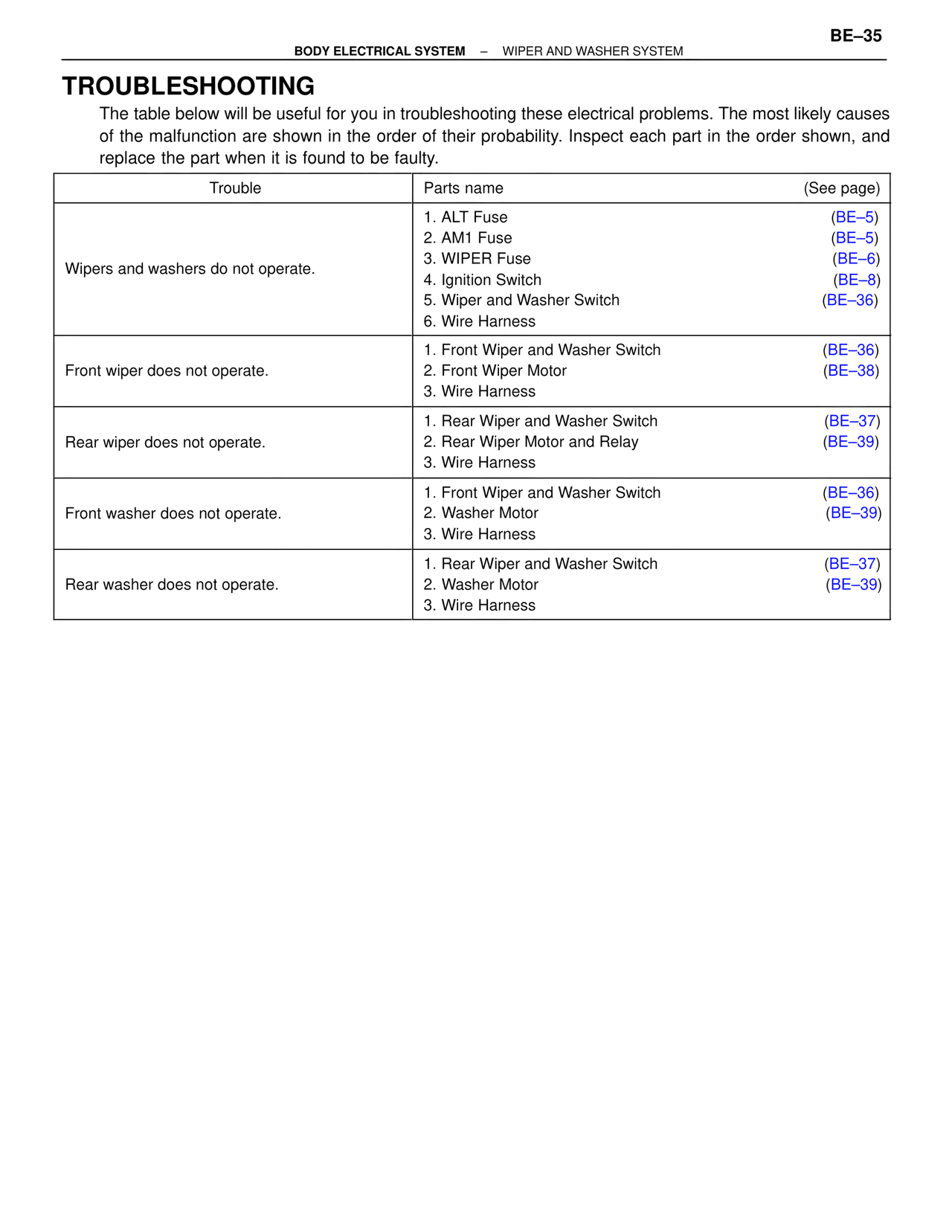

TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
Trouble | Parts name | (See page)
Wipers and washers do not operate.
1. ALT Fuse (BE–5)
2. AM1 Fuse (BE–5)
3. WIPER Fuse (BE–6)
4. Ignition Switch (BE–8)
5. Wiper and Washer Switch (BE–36)
6. Wire Harness
Front wiper does not operate.
1. Front Wiper and Washer Switch (BE–36)
2. Front Wiper Motor (BE–38)
3. Wire Harness
Rear wiper does not operate.
1. Rear Wiper and Washer Switch (BE–37)
2. Rear Wiper Motor and Relay (BE–39)
3. Wire Harness
Front washer does not operate.
1. Front Wiper and Washer Switch (BE–36)
2. Washer Motor (BE–39)
3. Wire Harness
Rear washer does not operate.
1. Rear Wiper and Washer Switch (BE–37)
2. Washer Motor (BE–39)
3. Wire Harness
