BE
/
Body Electrical Systems
34 / 203
p.035 →
−
100%
+

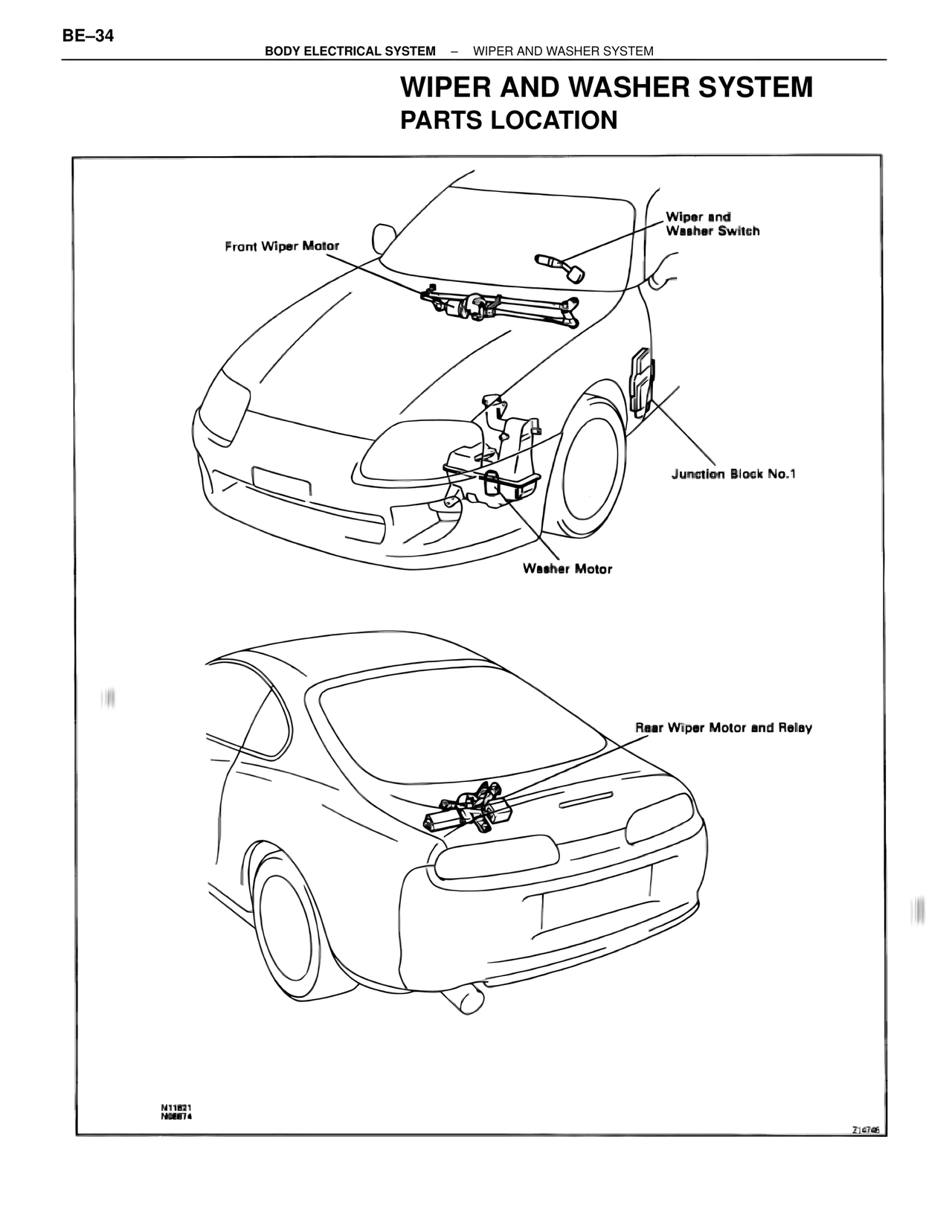

BE–34 BODY ELECTRICAL SYSTEM – WIPER AND WASHER SYSTEM WIPER AND WASHER SYSTEM PARTS LOCATION Front Wiper Motor Wiper and Washer Switch Junction Block No.1 Washer Motor Rear Wiper Motor and Relay N11621 N08874 214746
