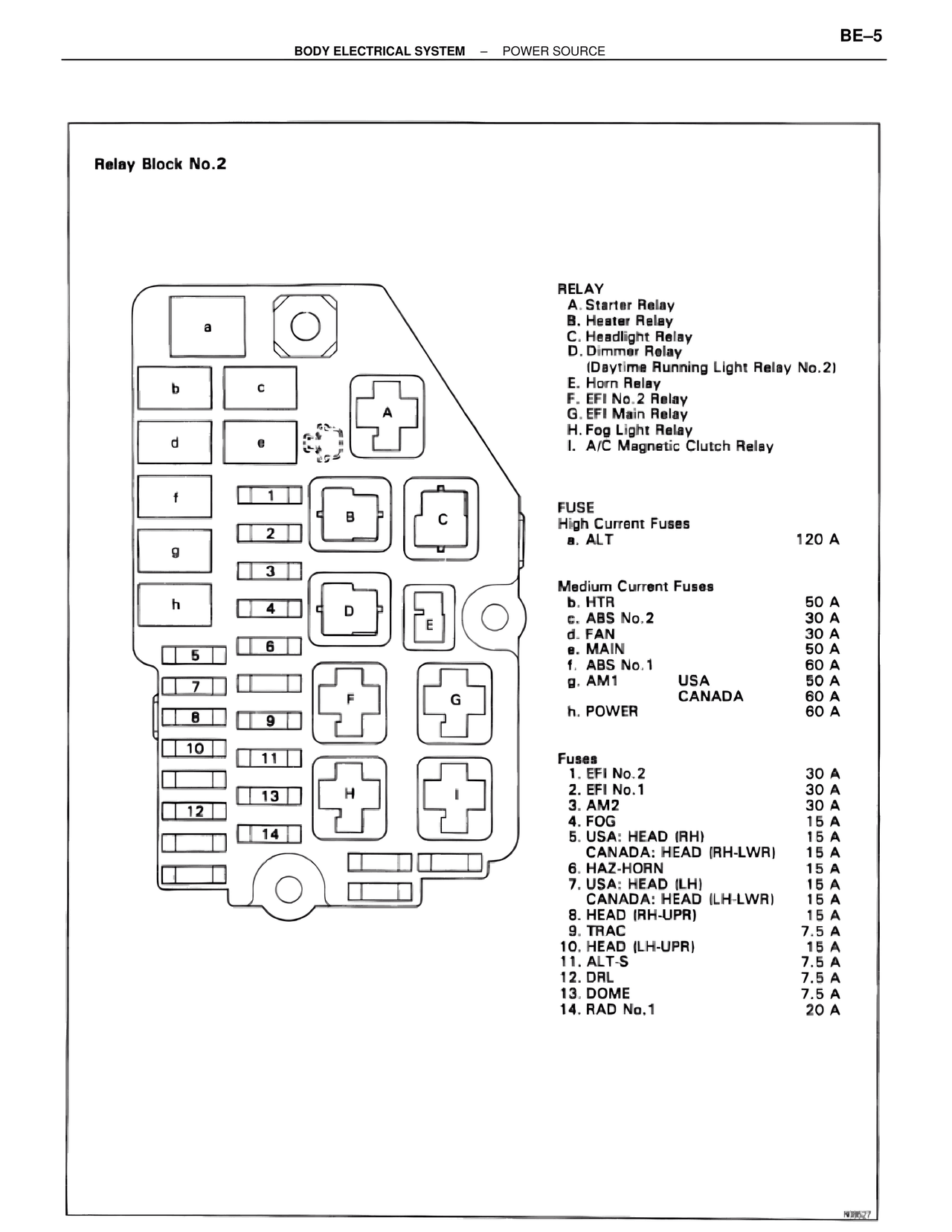

Relay Block No.2

RELAY
A. Starter Relay
B. Heater Relay
C. Headlight Relay
D. Dimmer Relay
(Daytime Running Light Relay No.2)
E. Horn Relay
F. EFI No.2 Relay
G. EFI Main Relay
H. Fog Light Relay
I. A/C Magnetic Clutch Relay

FUSE
High Current Fuses
a. ALT                120 A

Medium Current Fuses
b. HTR               50 A
c. ABS No.2          30 A
d. FAN               30 A
e. MAIN              50 A
f. ABS No.1          60 A
g. AM1    USA        50 A
          CANADA     60 A
h. POWER             60 A

Fuses
1. EFI No.2          30 A
2. EFI No.1          30 A
3. AM2               30 A
4. FOG               15 A
5. USA: HEAD (RH)    15 A
   CANADA: HEAD (RH-LWR)  15 A
6. HAZ-HORN          15 A
7. USA: HEAD (LH)    15 A
   CANADA: HEAD (LH-LWR)  15 A
8. HEAD (RH-UPR)     15 A
9. TRAC              7.5 A
10. HEAD (LH-UPR)    15 A
11. ALT-S            7.5 A
12. DRL              7.5 A
13. DOME             7.5 A
14. RAD No.1         20 A
