BODY ELECTRICAL SYSTEM – POWER SOURCE

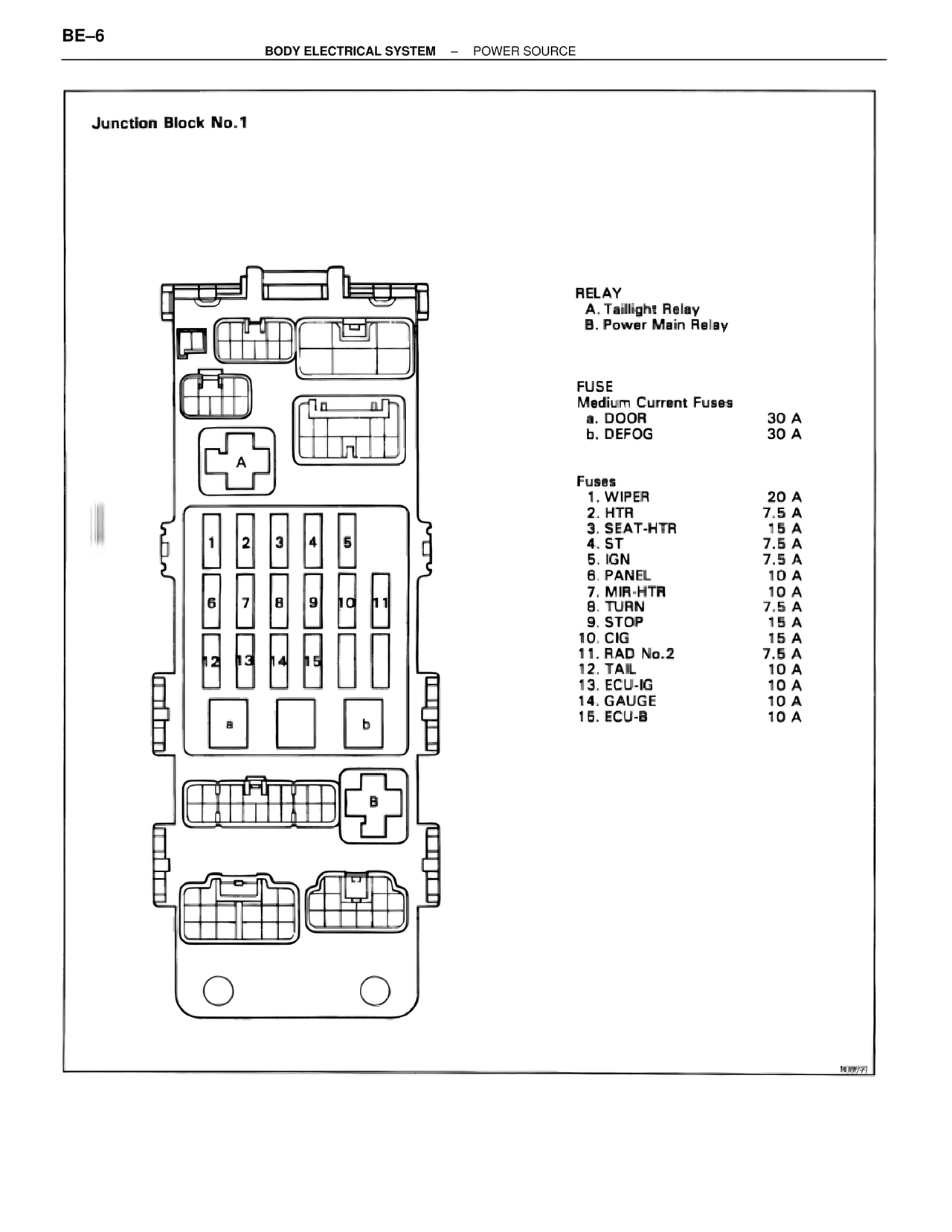

Junction Block No.1

RELAY
A. Taillight Relay
B. Power Main Relay

FUSE
Medium Current Fuses
a. DOOR          30 A
b. DEFOG         30 A

Fuses
1. WIPER         20 A
2. HTR           7.5 A
3. SEAT-HTR      15 A
4. ST            7.5 A
5. IGN           7.5 A
6. PANEL         10 A
7. MIR-HTR       10 A
8. TURN          7.5 A
9. STOP          15 A
10. CIG          15 A
11. RAD No.2     7.5 A
12. TAIL         10 A
13. ECU-IG       10 A
14. GAUGE        10 A
15. ECU-B        10 A

A
1  2  3  4  5
6  7  8  9  10  11
12  13  14  15
a        b
B
