BODY ELECTRICAL SYSTEM – SEAT HEATER SYSTEM
SEAT HEATER SYSTEM

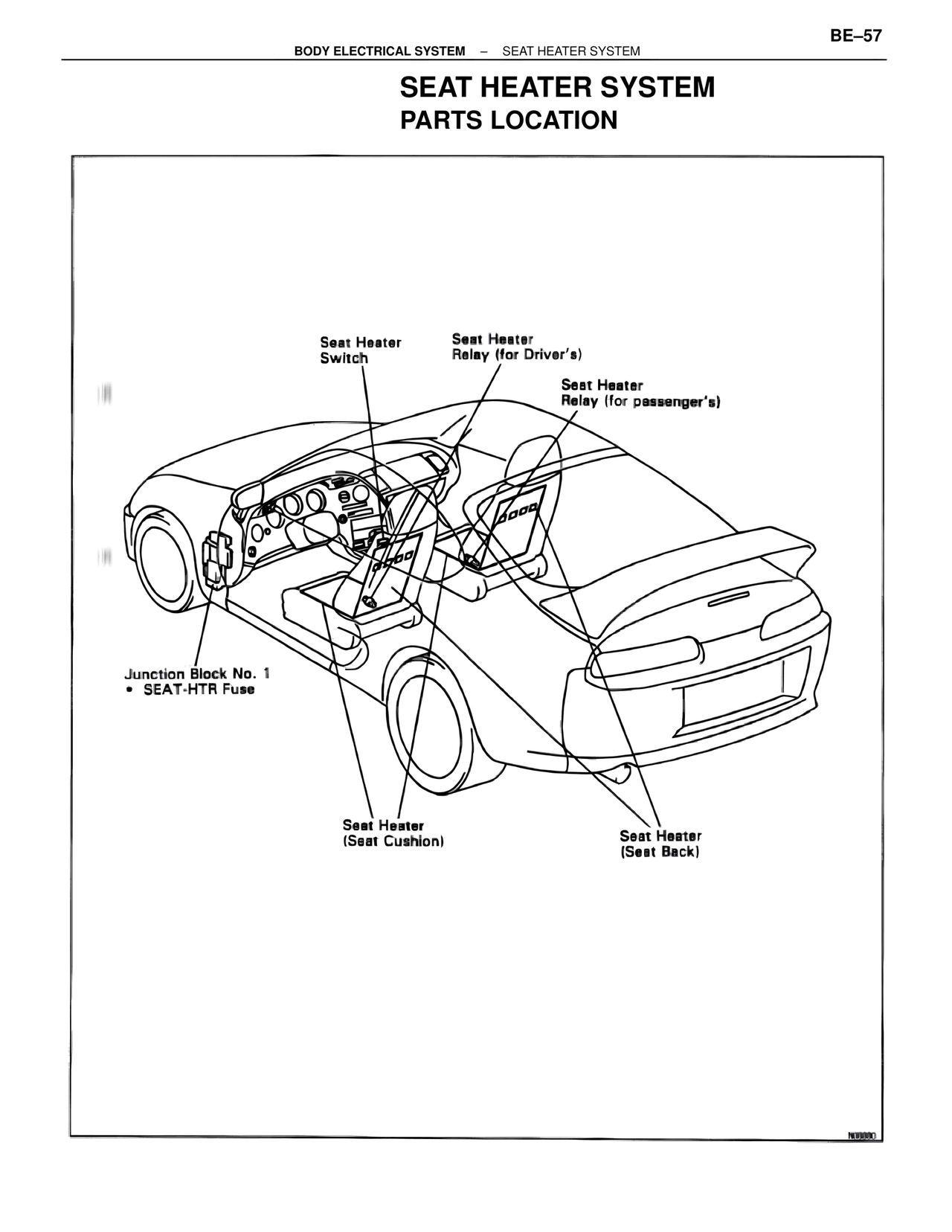

PARTS LOCATION
Seat Heater
Switch
Seat Heater
Relay (for Driver's)
Seat Heater
Relay (for passenger's)
Junction Block No. 1
• SEAT-HTR Fuse
Seat Heater
(Seat Cushion)
Seat Heater
(Seat Back)
N08890
