INSPECT BUCKLE SWITCH CONTINUITY — MK4 Supra Body Electrical Systems, page 56
100%

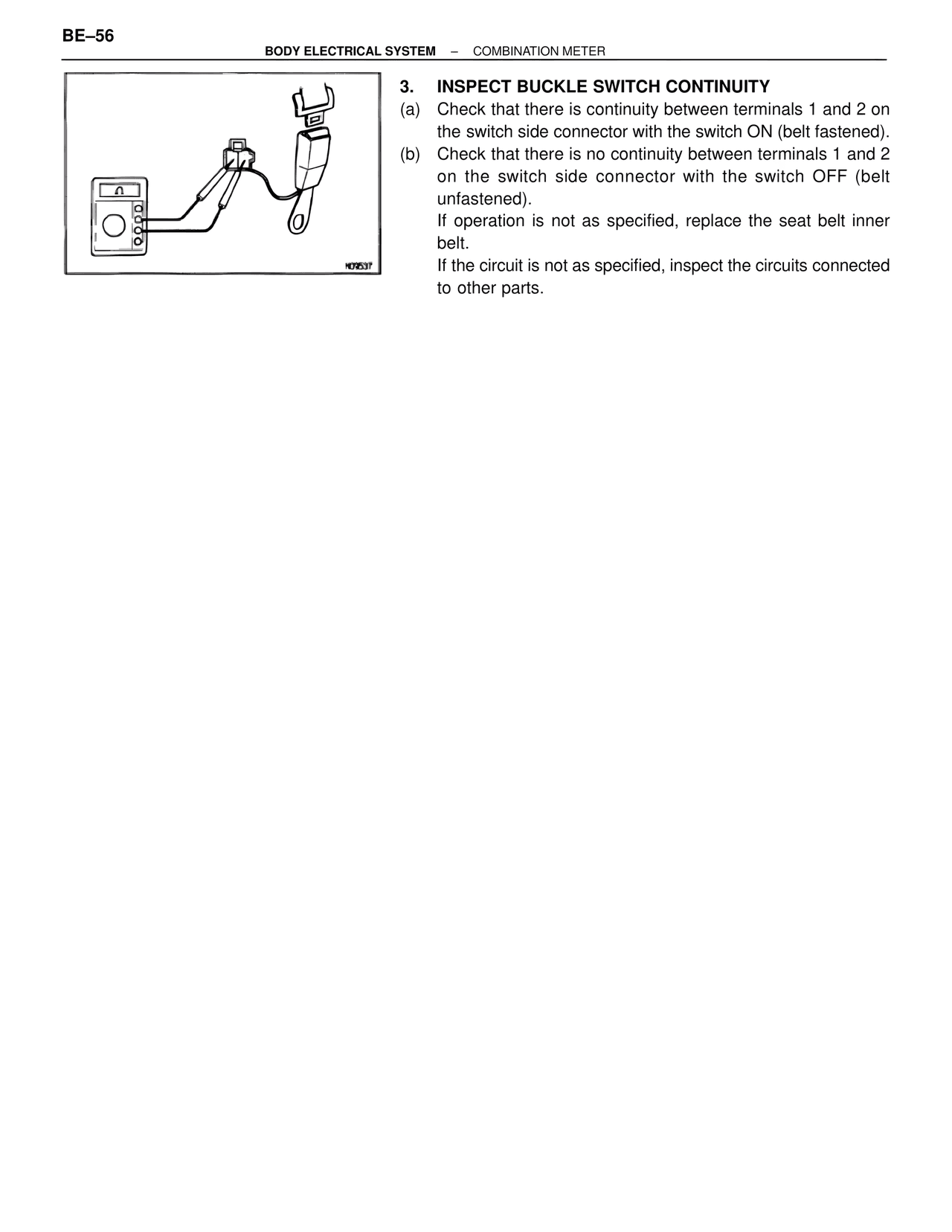

BE-56 BODY ELECTRICAL SYSTEM – COMBINATION METER 3. INSPECT BUCKLE SWITCH CONTINUITY (a) Check that there is continuity between terminals 1 and 2 on the switch side connector with the switch ON (belt fastened). (b) Check that there is no continuity between terminals 1 and 2 on the switch side connector with the switch OFF (belt unfastened). If operation is not as specified, replace the seat belt inner belt. If the circuit is not as specified, inspect the circuits connected to other parts. N09537
