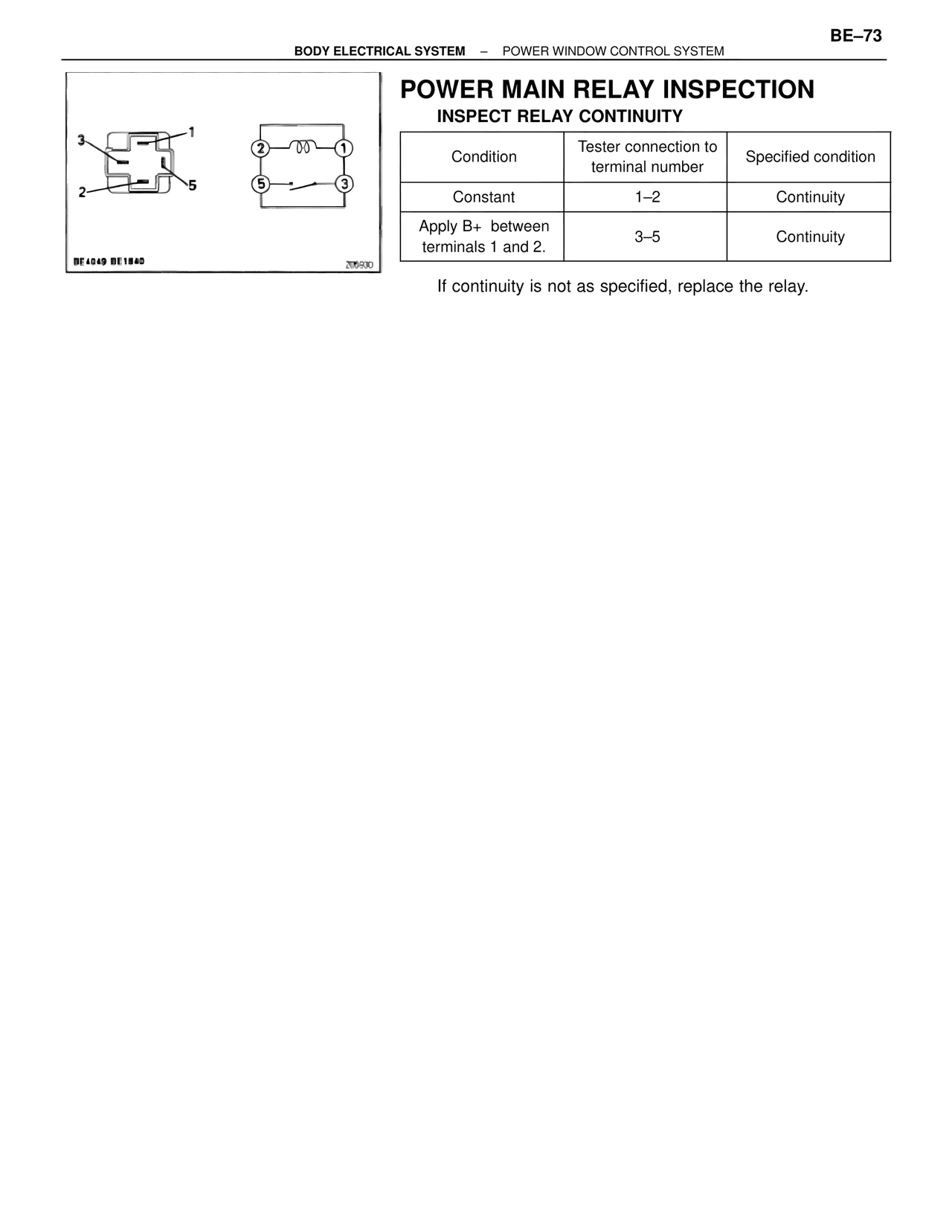

BODY ELECTRICAL SYSTEM – POWER WINDOW CONTROL SYSTEM

BE–73

POWER MAIN RELAY INSPECTION

INSPECT RELAY CONTINUITY

Condition | Tester connection to terminal number | Specified condition

Constant | 1–2 | Continuity

Apply B+ between terminals 1 and 2. | 3–5 | Continuity

If continuity is not as specified, replace the relay.

BE4049 BE1840
205930
