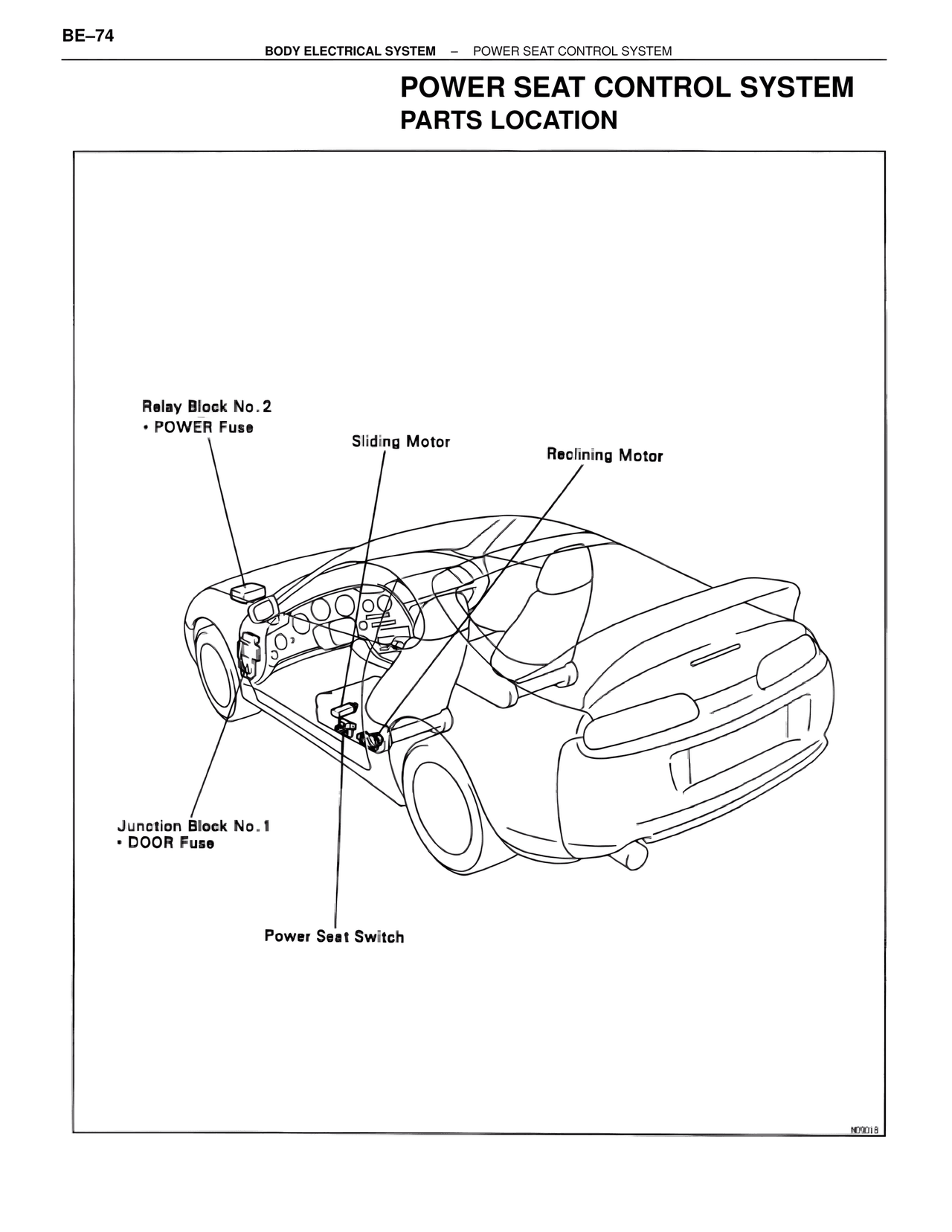

BE–74 BODY ELECTRICAL SYSTEM – POWER SEAT CONTROL SYSTEM POWER SEAT CONTROL SYSTEM PARTS LOCATION Relay Block No. 2 • POWER Fuse Sliding Motor Reclining Motor Junction Block No. 1 • DOOR Fuse Power Seat Switch N09018
