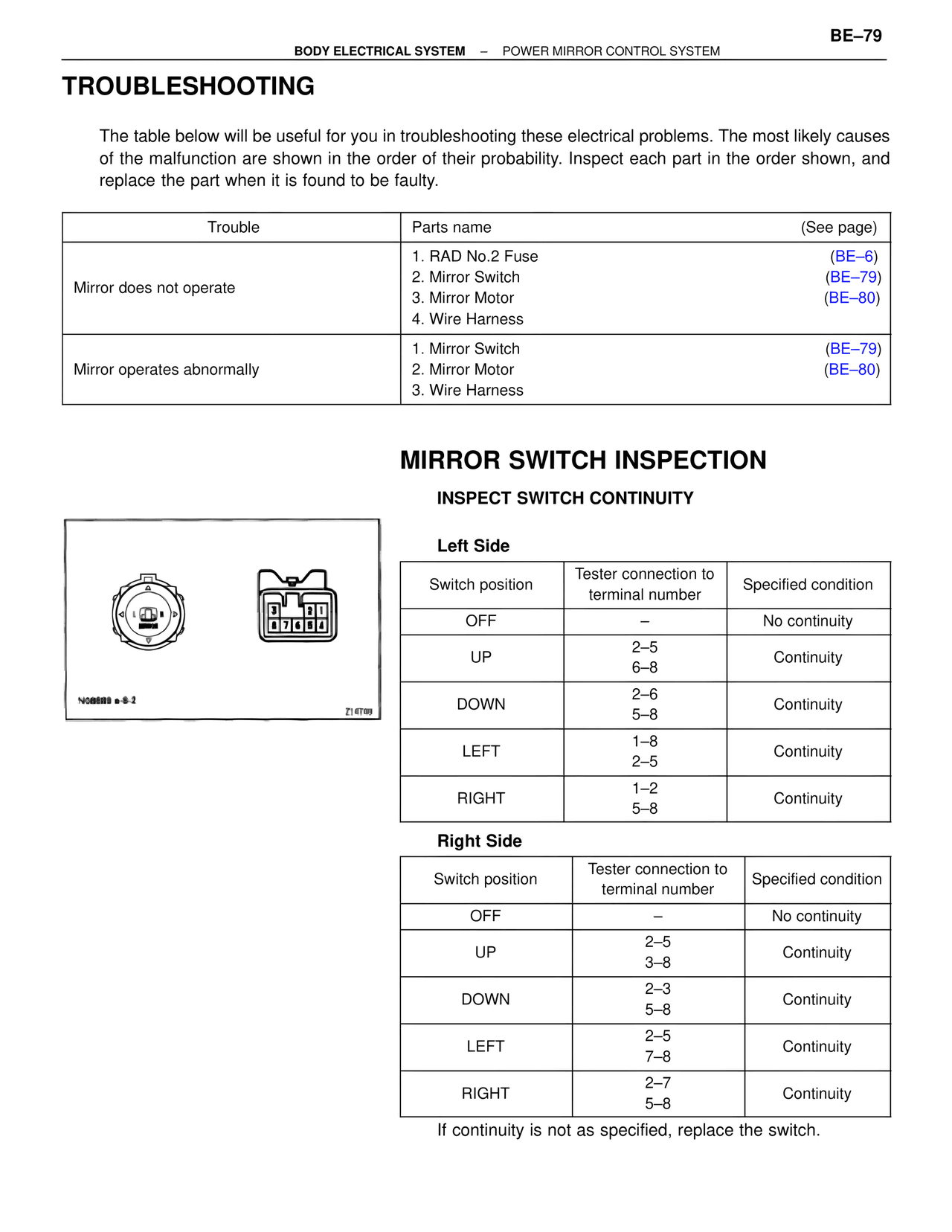

BODY ELECTRICAL SYSTEM – POWER MIRROR CONTROL SYSTEM
BE–79
TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
Trouble | Parts name | (See page)
Mirror does not operate | 1. RAD No.2 Fuse | (BE–6)
2. Mirror Switch | (BE–79)
3. Mirror Motor | (BE–80)
4. Wire Harness
Mirror operates abnormally | 1. Mirror Switch | (BE–79)
2. Mirror Motor | (BE–80)
3. Wire Harness
MIRROR SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
NC88889 e-8-2
Z14T09
Left Side
Switch position | Tester connection to terminal number | Specified condition
OFF | – | No continuity
UP | 2–5
6–8 | Continuity
DOWN | 2–6
5–8 | Continuity
LEFT | 1–8
2–5 | Continuity
RIGHT | 1–2
5–8 | Continuity
Right Side
Switch position | Tester connection to terminal number | Specified condition
OFF | – | No continuity
UP | 2–5
3–8 | Continuity
DOWN | 2–3
5–8 | Continuity
LEFT | 2–5
7–8 | Continuity
RIGHT | 2–7
5–8 | Continuity
If continuity is not as specified, replace the switch.
