BE–80
BODY ELECTRICAL SYSTEM – POWER MIRROR CONTROL SYSTEM

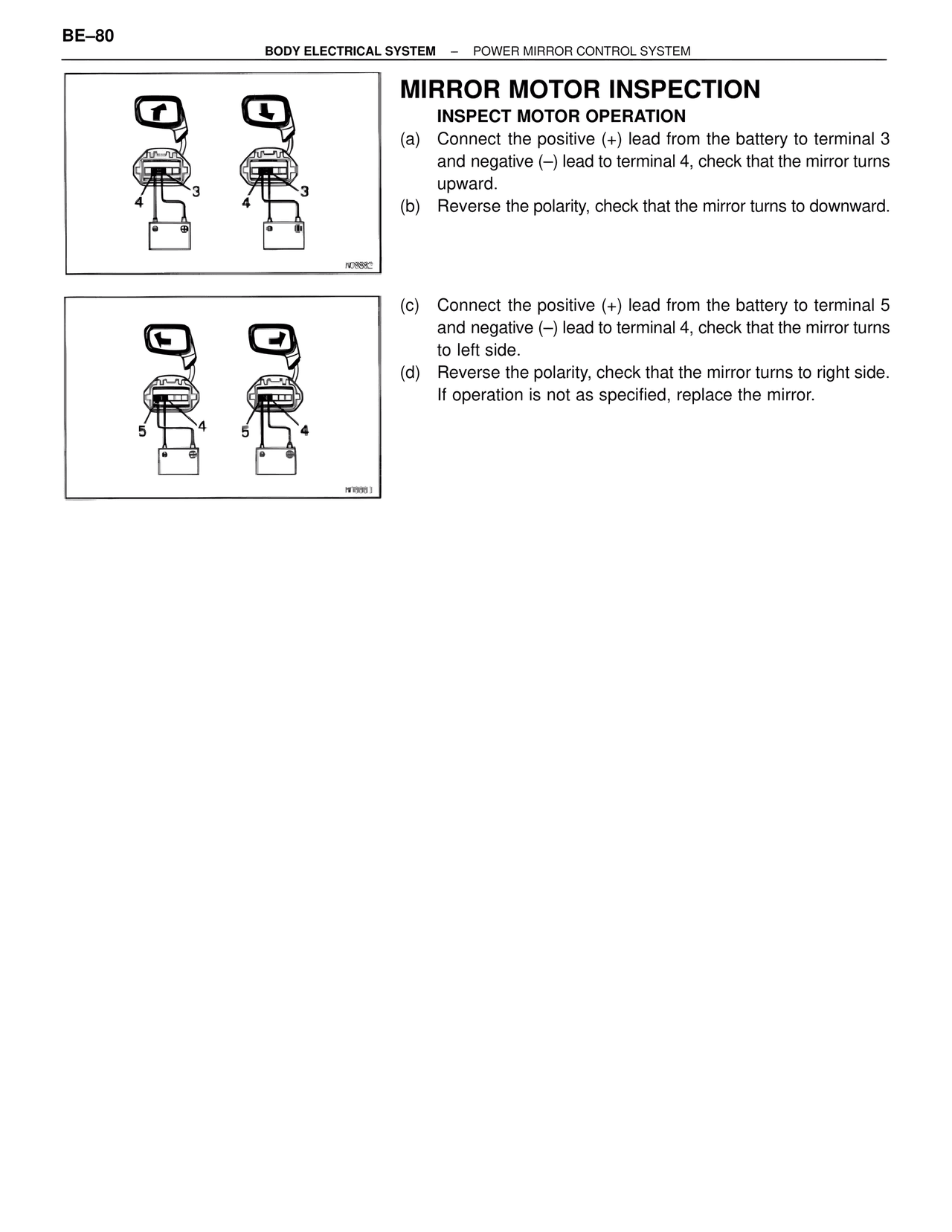

MIRROR MOTOR INSPECTION
INSPECT MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal 3
and negative (–) lead to terminal 4, check that the mirror turns
upward.
(b) Reverse the polarity, check that the mirror turns to downward.
3
4
3
4
N08882
(c) Connect the positive (+) lead from the battery to terminal 5
and negative (–) lead to terminal 4, check that the mirror turns
to left side.
(d) Reverse the polarity, check that the mirror turns to right side.
If operation is not as specified, replace the mirror.
5
4
5
4
N08883
