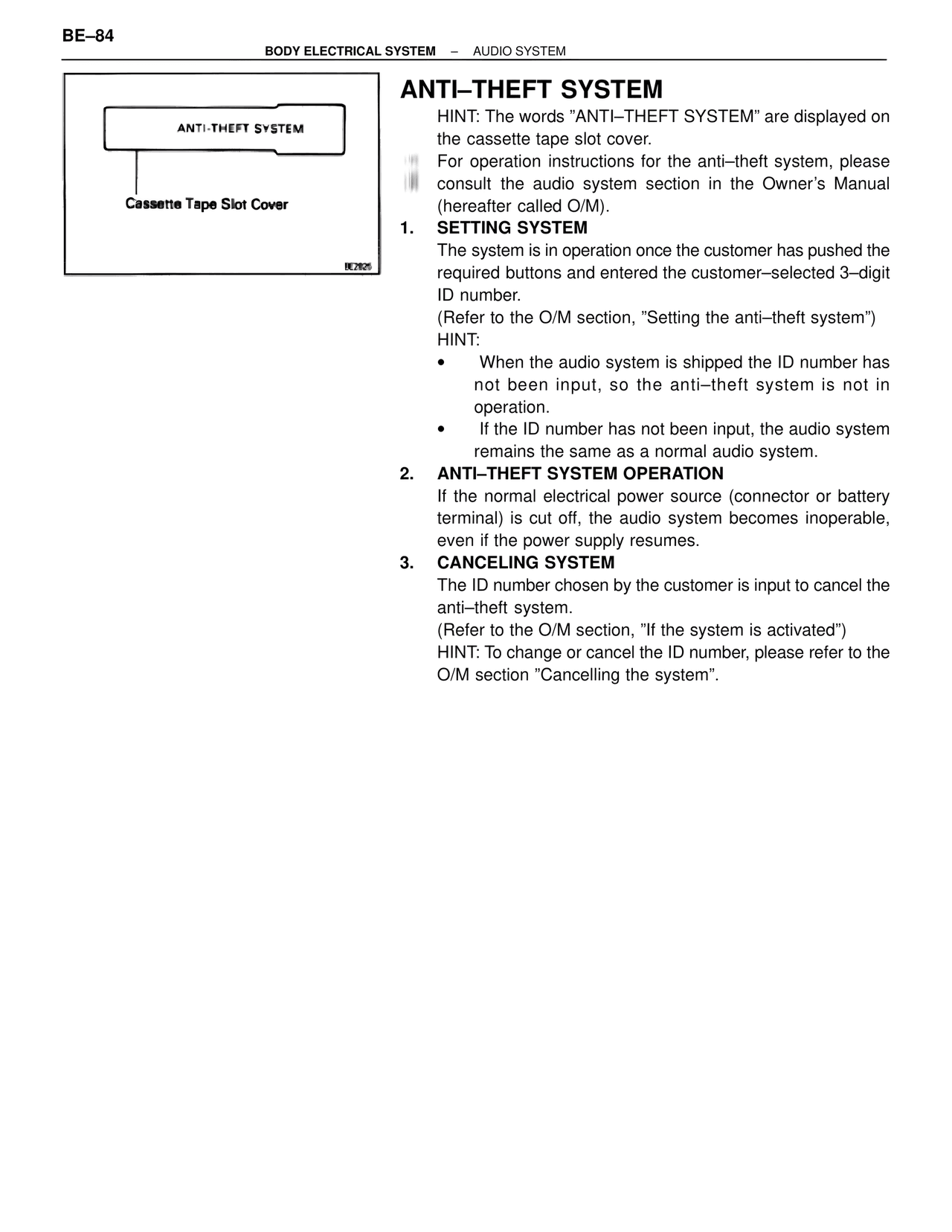

BE/Body Electrical Systems — Anti–theft System, page 84

84 / 203
p.085
Anti–theft System — MK4 Supra Body Electrical Systems, page 84
100%
Page text (OCR transcript)
BE–84
BODY ELECTRICAL SYSTEM – AUDIO SYSTEM

ANTI-THEFT SYSTEM

Cassette Tape Slot Cover

BE2825

ANTI–THEFT SYSTEM
HINT: The words "ANTI–THEFT SYSTEM" are displayed on
the cassette tape slot cover.
For operation instructions for the anti–theft system, please
consult the audio system section in the Owner's Manual
(hereafter called O/M).
1. SETTING SYSTEM
The system is in operation once the customer has pushed the
required buttons and entered the customer–selected 3–digit
ID number.
(Refer to the O/M section, "Setting the anti–theft system")
HINT:
• When the audio system is shipped the ID number has
not been input, so the anti–theft system is not in
operation.
• If the ID number has not been input, the audio system
remains the same as a normal audio system.
2. ANTI–THEFT SYSTEM OPERATION
If the normal electrical power source (connector or battery
terminal) is cut off, the audio system becomes inoperable,
even if the power supply resumes.
3. CANCELING SYSTEM
The ID number chosen by the customer is input to cancel the
anti–theft system.
(Refer to the O/M section, "If the system is activated")
HINT: To change or cancel the ID number, please refer to the
O/M section "Cancelling the system".
