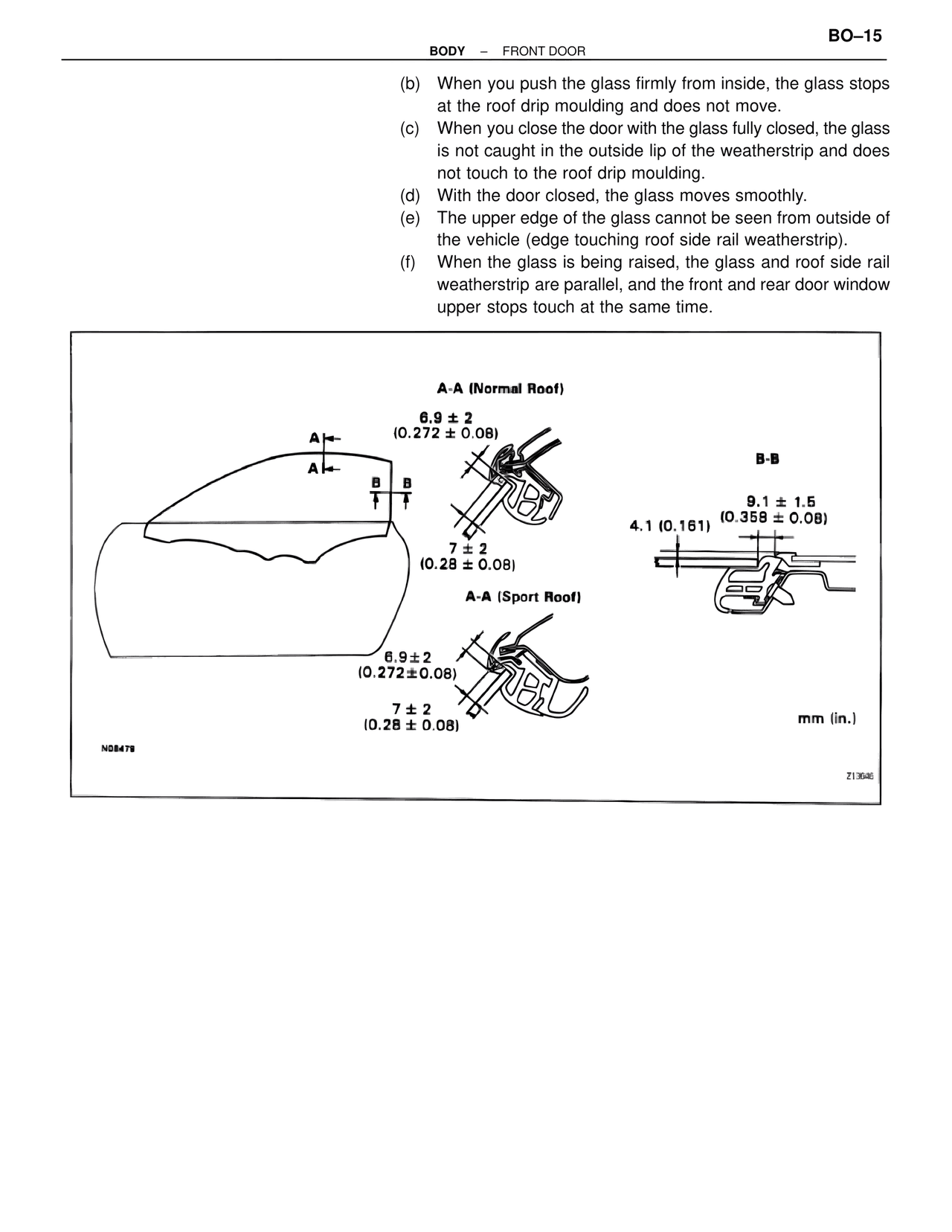

BODY – FRONT DOOR
(b) When you push the glass firmly from inside, the glass stops
at the roof drip moulding and does not move.
(c) When you close the door with the glass fully closed, the glass
is not caught in the outside lip of the weatherstrip and does
not touch to the roof drip moulding.
(d) With the door closed, the glass moves smoothly.
(e) The upper edge of the glass cannot be seen from outside of
the vehicle (edge touching roof side rail weatherstrip).
(f) When the glass is being raised, the glass and roof side rail
weatherstrip are parallel, and the front and rear door window
upper stops touch at the same time.
A-A (Normal Roof)
6.9 ± 2
(0.272 ± 0.08)
A←
A←
B B
B-B
9.1 ± 1.5
(0.358 ± 0.08)
4.1 (0.161)
7 ± 2
(0.28 ± 0.08)
A-A (Sport Roof)
6.9 ± 2
(0.272 ± 0.08)
7 ± 2
(0.28 ± 0.08)
mm (in.)
ND8479
Z13646
