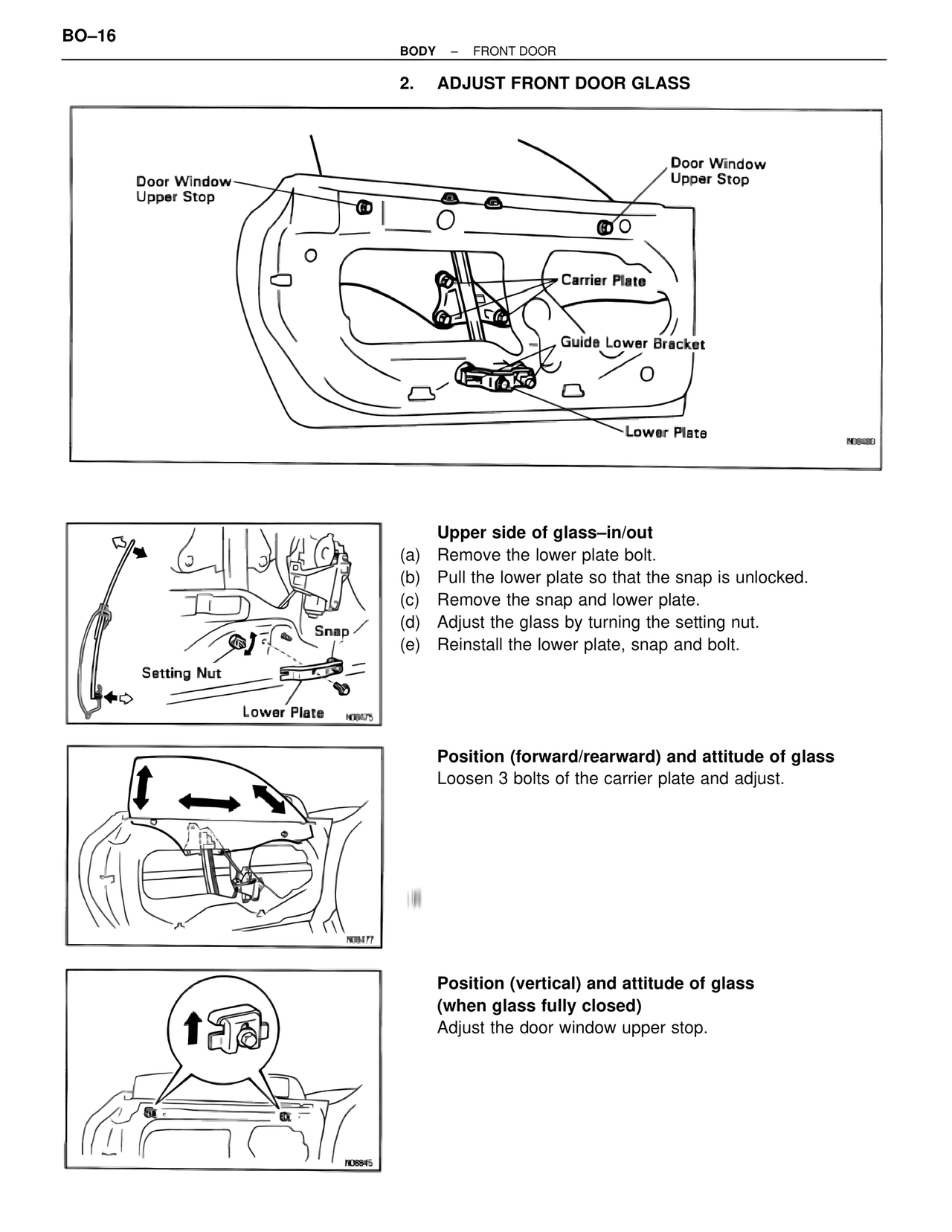

BO–16
BODY – FRONT DOOR
2. ADJUST FRONT DOOR GLASS
Door Window
Upper Stop
Door Window
Upper Stop
Carrier Plate
Guide Lower Bracket
Lower Plate
N08480
Upper side of glass–in/out
(a) Remove the lower plate bolt.
(b) Pull the lower plate so that the snap is unlocked.
(c) Remove the snap and lower plate.
(d) Adjust the glass by turning the setting nut.
(e) Reinstall the lower plate, snap and bolt.
Snap
Setting Nut
Lower Plate
N08075
Position (forward/rearward) and attitude of glass
Loosen 3 bolts of the carrier plate and adjust.
N08477
Position (vertical) and attitude of glass
(when glass fully closed)
Adjust the door window upper stop.
N08845
