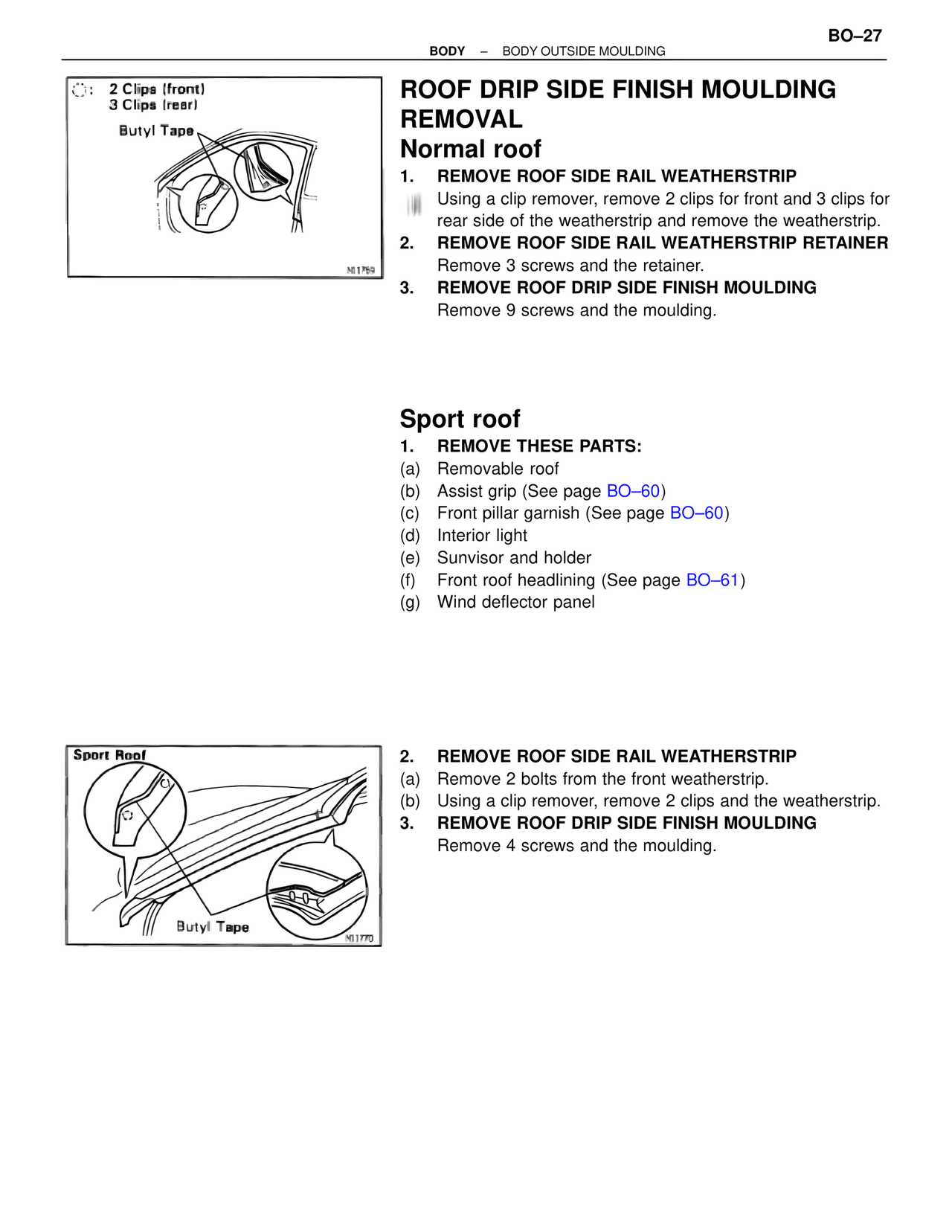

BO/Body Mechanical — Roof Drip Side Finish Moulding Removal, page 27

BO–27
BODY – BODY OUTSIDE MOULDING

2 Clips (front)
3 Clips (rear)
Butyl Tape
N61769

ROOF DRIP SIDE FINISH MOULDING REMOVAL
Normal roof

1. REMOVE ROOF SIDE RAIL WEATHERSTRIP
Using a clip remover, remove 2 clips for front and 3 clips for
rear side of the weatherstrip and remove the weatherstrip.

2. REMOVE ROOF SIDE RAIL WEATHERSTRIP RETAINER
Remove 3 screws and the retainer.

3. REMOVE ROOF DRIP SIDE FINISH MOULDING
Remove 9 screws and the moulding.

Sport roof

1. REMOVE THESE PARTS:
(a) Removable roof
(b) Assist grip (See page BO–60)
(c) Front pillar garnish (See page BO–60)
(d) Interior light
(e) Sunvisor and holder
(f) Front roof headlining (See page BO–61)
(g) Wind deflector panel

Sport Roof
Butyl Tape
N61770

2. REMOVE ROOF SIDE RAIL WEATHERSTRIP
(a) Remove 2 bolts from the front weatherstrip.
(b) Using a clip remover, remove 2 clips and the weatherstrip.

3. REMOVE ROOF DRIP SIDE FINISH MOULDING
Remove 4 screws and the moulding.
