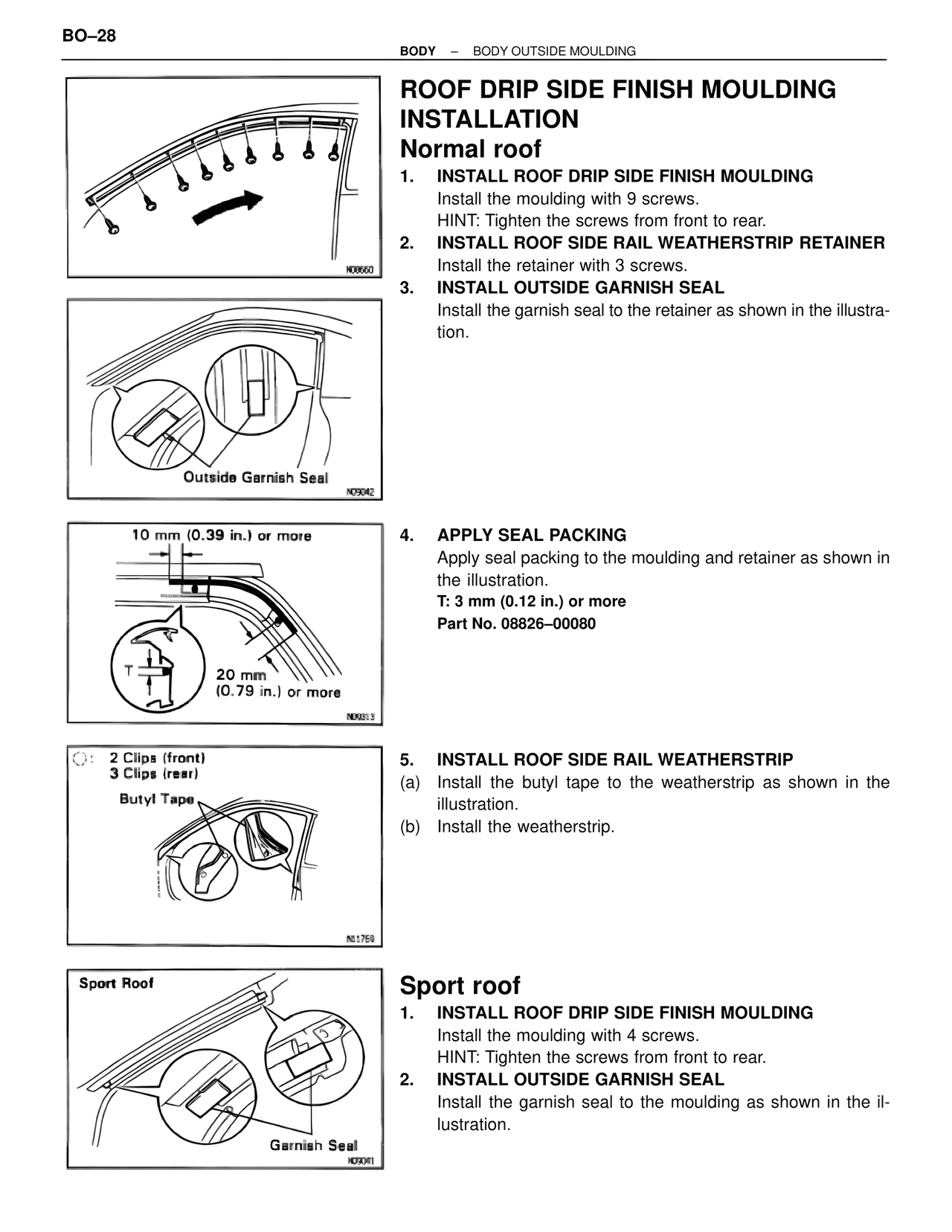

BO–28
BODY – BODY OUTSIDE MOULDING
ROOF DRIP SIDE FINISH MOULDING
INSTALLATION
Normal roof
1. INSTALL ROOF DRIP SIDE FINISH MOULDING
Install the moulding with 9 screws.
HINT: Tighten the screws from front to rear.
2. INSTALL ROOF SIDE RAIL WEATHERSTRIP RETAINER
Install the retainer with 3 screws.
3. INSTALL OUTSIDE GARNISH SEAL
Install the garnish seal to the retainer as shown in the illustration.
Outside Garnish Seal
N05042
10 mm (0.39 in.) or more
T
20 mm
(0.79 in.) or more
N00913
4. APPLY SEAL PACKING
Apply seal packing to the moulding and retainer as shown in
the illustration.
T: 3 mm (0.12 in.) or more
Part No. 08826–00080
2 Clips (front)
3 Clips (rear)
Butyl Tape
N01759
5. INSTALL ROOF SIDE RAIL WEATHERSTRIP
(a) Install the butyl tape to the weatherstrip as shown in the
illustration.
(b) Install the weatherstrip.
Sport Roof
Garnish Seal
N05081
Sport roof
1. INSTALL ROOF DRIP SIDE FINISH MOULDING
Install the moulding with 4 screws.
HINT: Tighten the screws from front to rear.
2. INSTALL OUTSIDE GARNISH SEAL
Install the garnish seal to the moulding as shown in the illustration.
