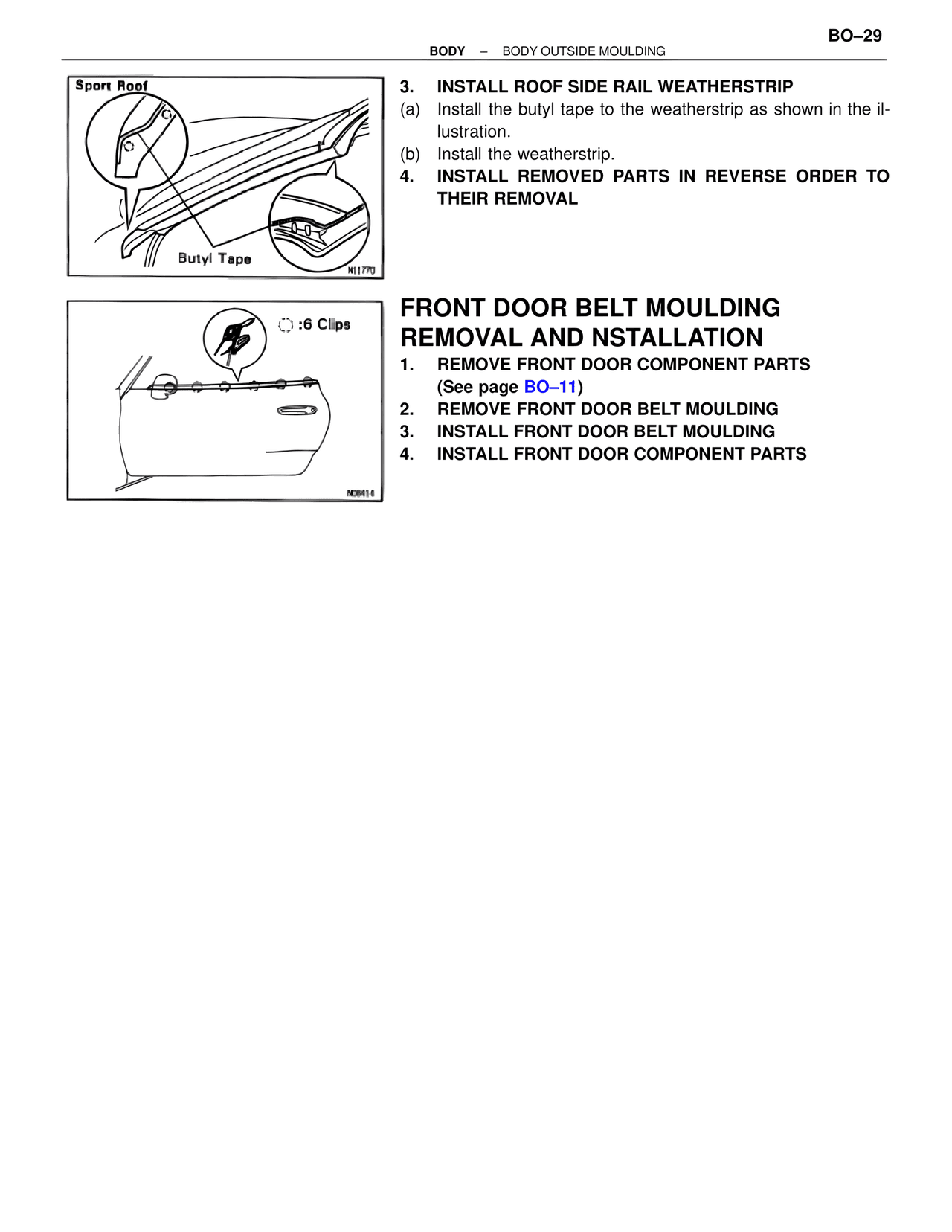

BO/Body Mechanical — Front Door Belt Moulding Removal and Nstallation, page 29

BO–29
BODY – BODY OUTSIDE MOULDING

Sport Roof

Butyl Tape
N1770

3. INSTALL ROOF SIDE RAIL WEATHERSTRIP
(a) Install the butyl tape to the weatherstrip as shown in the illustration.
(b) Install the weatherstrip.
4. INSTALL REMOVED PARTS IN REVERSE ORDER TO THEIR REMOVAL

:6 Clips

ND6414

FRONT DOOR BELT MOULDING REMOVAL AND NSTALLATION
1. REMOVE FRONT DOOR COMPONENT PARTS
(See page BO–11)
2. REMOVE FRONT DOOR BELT MOULDING
3. INSTALL FRONT DOOR BELT MOULDING
4. INSTALL FRONT DOOR COMPONENT PARTS
