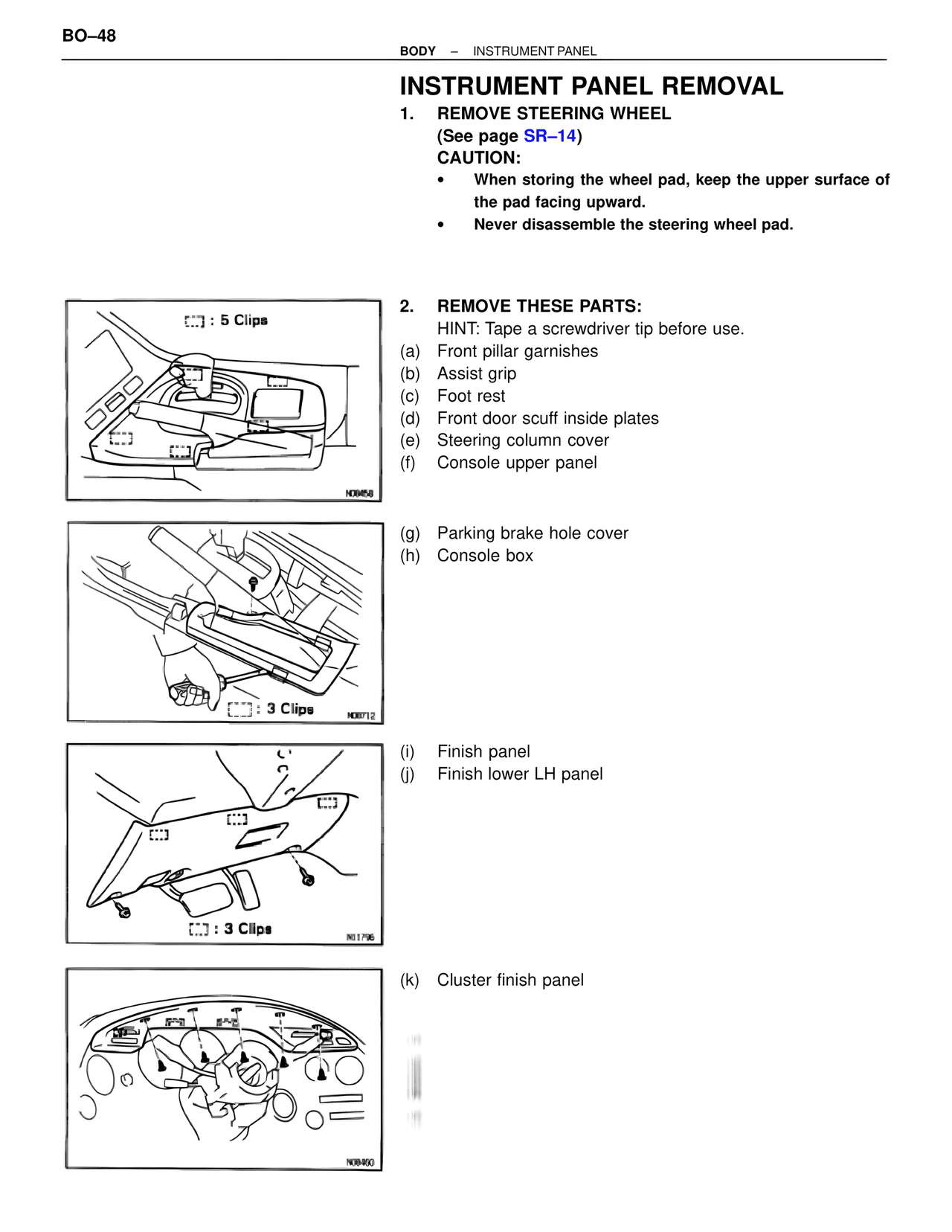

BO–48
BODY – INSTRUMENT PANEL
INSTRUMENT PANEL REMOVAL
1. REMOVE STEERING WHEEL
(See page SR–14)
CAUTION:
• When storing the wheel pad, keep the upper surface of the pad facing upward.
• Never disassemble the steering wheel pad.
[::] : 5 Clips
N06458
2. REMOVE THESE PARTS:
HINT: Tape a screwdriver tip before use.
(a) Front pillar garnishes
(b) Assist grip
(c) Foot rest
(d) Front door scuff inside plates
(e) Steering column cover
(f) Console upper panel
[::] : 3 Clips
N06712
(g) Parking brake hole cover
(h) Console box
[::] : 3 Clips
N81796
(i) Finish panel
(j) Finish lower LH panel
N09490
(k) Cluster finish panel
