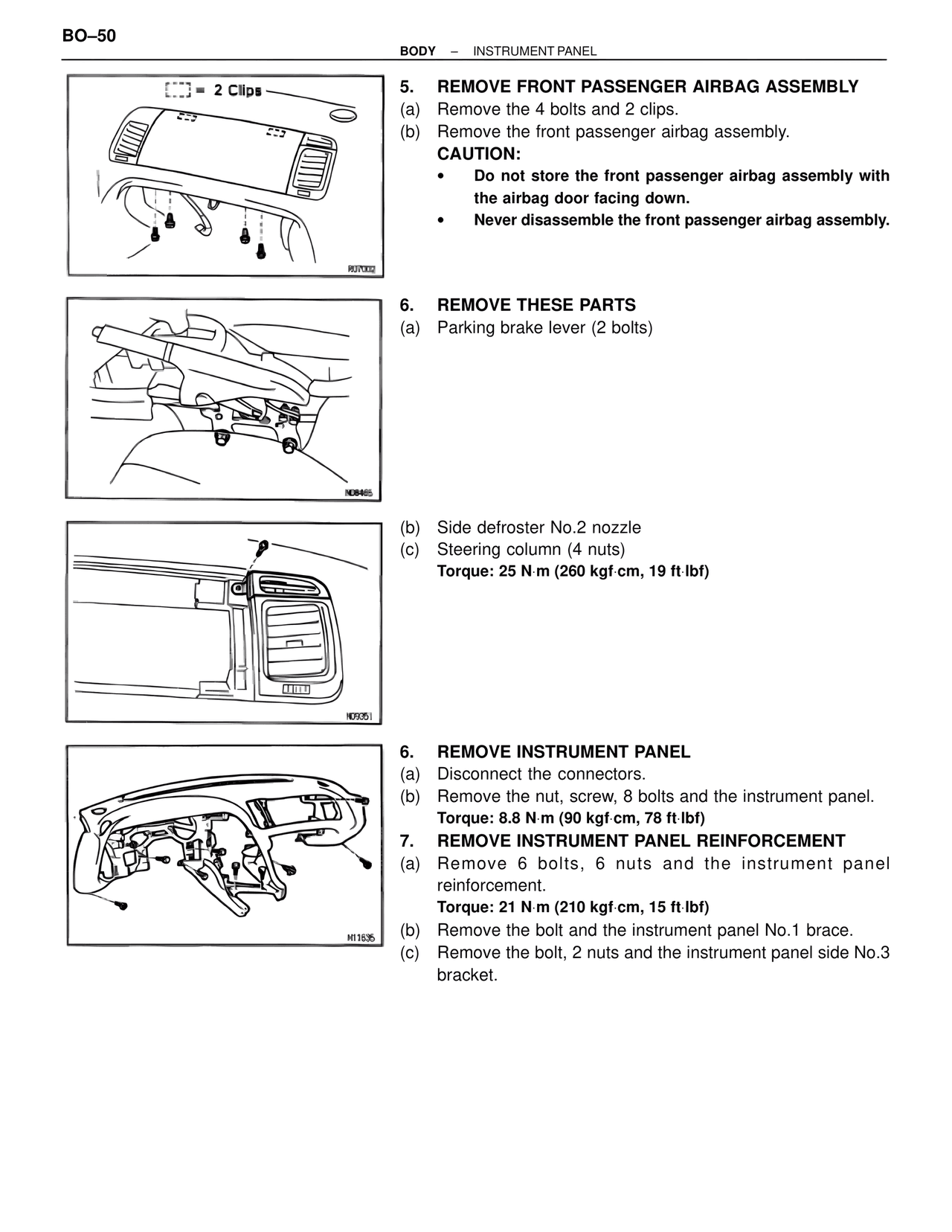

BO–50
BODY – INSTRUMENT PANEL
= 2 Clips
5. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
(a) Remove the 4 bolts and 2 clips.
(b) Remove the front passenger airbag assembly.
CAUTION:
• Do not store the front passenger airbag assembly with the airbag door facing down.
• Never disassemble the front passenger airbag assembly.
R07002
6. REMOVE THESE PARTS
(a) Parking brake lever (2 bolts)
ND8485
(b) Side defroster No.2 nozzle
(c) Steering column (4 nuts)
Torque: 25 N·m (260 kgf·cm, 19 ft·lbf)
N09351
6. REMOVE INSTRUMENT PANEL
(a) Disconnect the connectors.
(b) Remove the nut, screw, 8 bolts and the instrument panel.
Torque: 8.8 N·m (90 kgf·cm, 78 ft·lbf)
7. REMOVE INSTRUMENT PANEL REINFORCEMENT
(a) Remove 6 bolts, 6 nuts and the instrument panel reinforcement.
Torque: 21 N·m (210 kgf·cm, 15 ft·lbf)
(b) Remove the bolt and the instrument panel No.1 brace.
(c) Remove the bolt, 2 nuts and the instrument panel side No.3 bracket.
N11635
