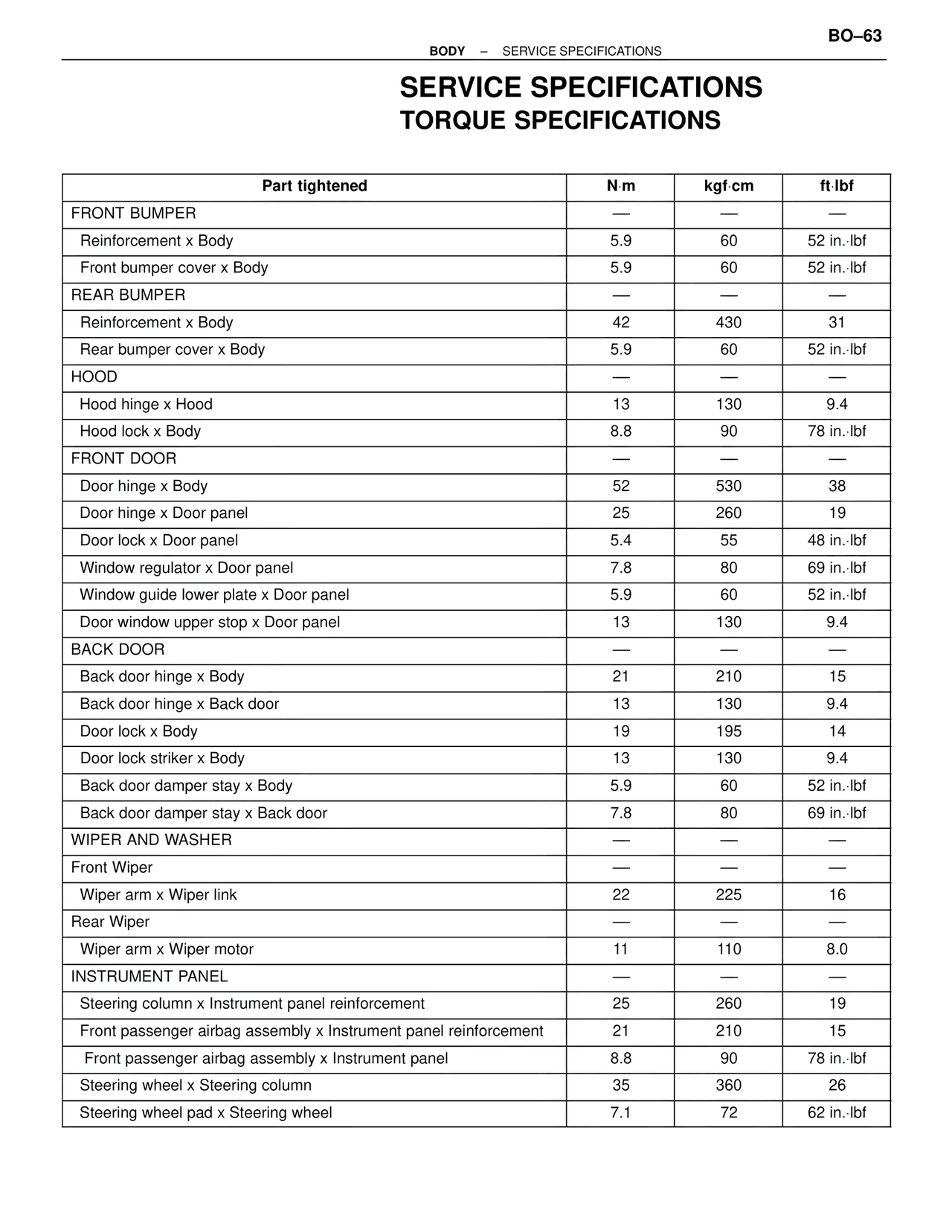

BO/Body Mechanical — Service Specifications Torque Specifications, page 63

BO–63
BODY – SERVICE SPECIFICATIONS

SERVICE SPECIFICATIONS
TORQUE SPECIFICATIONS

Part tightened | N·m | kgf·cm | ft·lbf

FRONT BUMPER | — | — | —
  Reinforcement x Body | 5.9 | 60 | 52 in.·lbf
  Front bumper cover x Body | 5.9 | 60 | 52 in.·lbf
REAR BUMPER | — | — | —
  Reinforcement x Body | 42 | 430 | 31
  Rear bumper cover x Body | 5.9 | 60 | 52 in.·lbf
HOOD | — | — | —
  Hood hinge x Hood | 13 | 130 | 9.4
  Hood lock x Body | 8.8 | 90 | 78 in.·lbf
FRONT DOOR | — | — | —
  Door hinge x Body | 52 | 530 | 38
  Door hinge x Door panel | 25 | 260 | 19
  Door lock x Door panel | 5.4 | 55 | 48 in.·lbf
  Window regulator x Door panel | 7.8 | 80 | 69 in.·lbf
  Window guide lower plate x Door panel | 5.9 | 60 | 52 in.·lbf
  Door window upper stop x Door panel | 13 | 130 | 9.4
BACK DOOR | — | — | —
  Back door hinge x Body | 21 | 210 | 15
  Back door hinge x Back door | 13 | 130 | 9.4
  Door lock x Body | 19 | 195 | 14
  Door lock striker x Body | 13 | 130 | 9.4
  Back door damper stay x Body | 5.9 | 60 | 52 in.·lbf
  Back door damper stay x Back door | 7.8 | 80 | 69 in.·lbf
WIPER AND WASHER | — | — | —
  Front Wiper | — | — | —
    Wiper arm x Wiper link | 22 | 225 | 16
  Rear Wiper | — | — | —
    Wiper arm x Wiper motor | 11 | 110 | 8.0
INSTRUMENT PANEL | — | — | —
  Steering column x Instrument panel reinforcement | 25 | 260 | 19
  Front passenger airbag assembly x Instrument panel reinforcement | 21 | 210 | 15
  Front passenger airbag assembly x Instrument panel | 8.8 | 90 | 78 in.·lbf
  Steering wheel x Steering column | 35 | 360 | 26
  Steering wheel pad x Steering wheel | 7.1 | 72 | 62 in.·lbf
