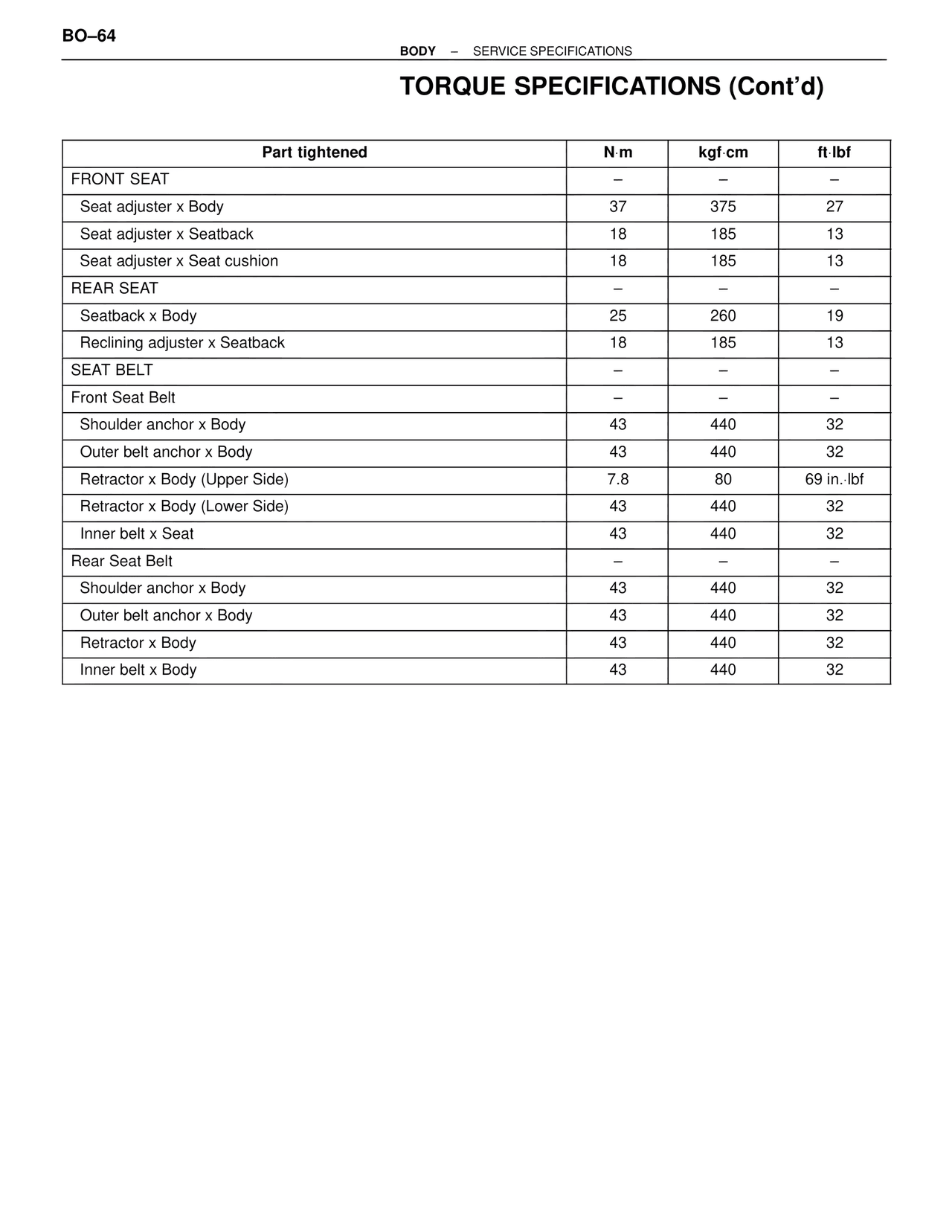

Torque Specifications (Cont'd) — MK4 Supra Body Mechanical, page 64

100%

Page text (OCR transcript)

BO–64
BODY – SERVICE SPECIFICATIONS

TORQUE SPECIFICATIONS (Cont'd)

Part tightened | N·m | kgf·cm | ft·lbf

FRONT SEAT | – | – | –
  Seat adjuster x Body | 37 | 375 | 27
  Seat adjuster x Seatback | 18 | 185 | 13
  Seat adjuster x Seat cushion | 18 | 185 | 13
REAR SEAT | – | – | –
  Seatback x Body | 25 | 260 | 19
  Reclining adjuster x Seatback | 18 | 185 | 13
SEAT BELT | – | – | –
Front Seat Belt | – | – | –
  Shoulder anchor x Body | 43 | 440 | 32
  Outer belt anchor x Body | 43 | 440 | 32
  Retractor x Body (Upper Side) | 7.8 | 80 | 69 in.·lbf
  Retractor x Body (Lower Side) | 43 | 440 | 32
  Inner belt x Seat | 43 | 440 | 32
Rear Seat Belt | – | – | –
  Shoulder anchor x Body | 43 | 440 | 32
  Outer belt anchor x Body | 43 | 440 | 32
  Retractor x Body | 43 | 440 | 32
  Inner belt x Body | 43 | 440 | 32
