CL–10

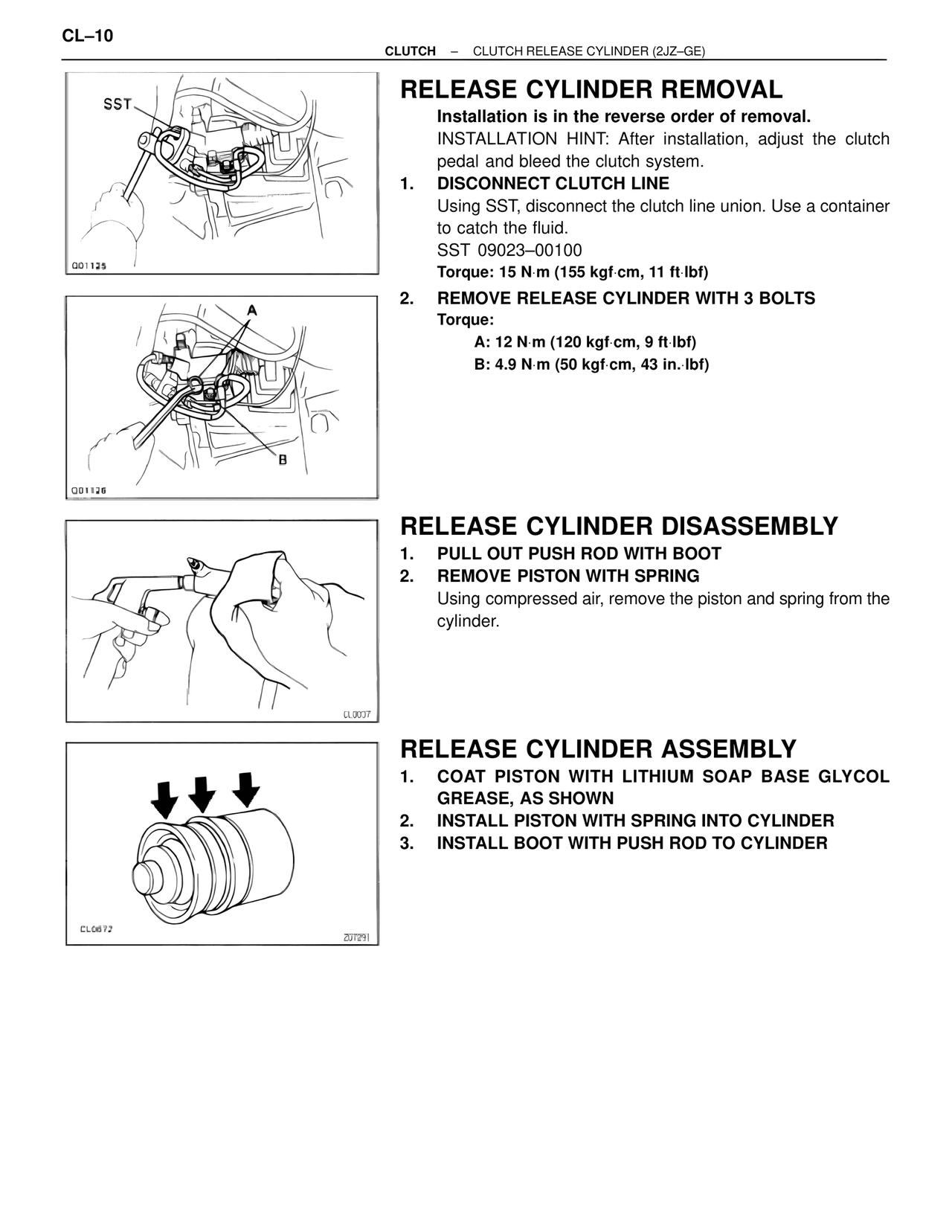

CLUTCH – CLUTCH RELEASE CYLINDER (2JZ–GE)
RELEASE CYLINDER REMOVAL
Installation is in the reverse order of removal.
INSTALLATION HINT: After installation, adjust the clutch pedal and bleed the clutch system.
1. DISCONNECT CLUTCH LINE
Using SST, disconnect the clutch line union. Use a container to catch the fluid.
SST 09023–00100
Torque: 15 N·m (155 kgf·cm, 11 ft·lbf)
2. REMOVE RELEASE CYLINDER WITH 3 BOLTS
Torque:
A: 12 N·m (120 kgf·cm, 9 ft·lbf)
B: 4.9 N·m (50 kgf·cm, 43 in.·lbf)
RELEASE CYLINDER DISASSEMBLY
1. PULL OUT PUSH ROD WITH BOOT
2. REMOVE PISTON WITH SPRING
Using compressed air, remove the piston and spring from the cylinder.
RELEASE CYLINDER ASSEMBLY
1. COAT PISTON WITH LITHIUM SOAP BASE GLYCOL GREASE, AS SHOWN
2. INSTALL PISTON WITH SPRING INTO CYLINDER
3. INSTALL BOOT WITH PUSH ROD TO CYLINDER
